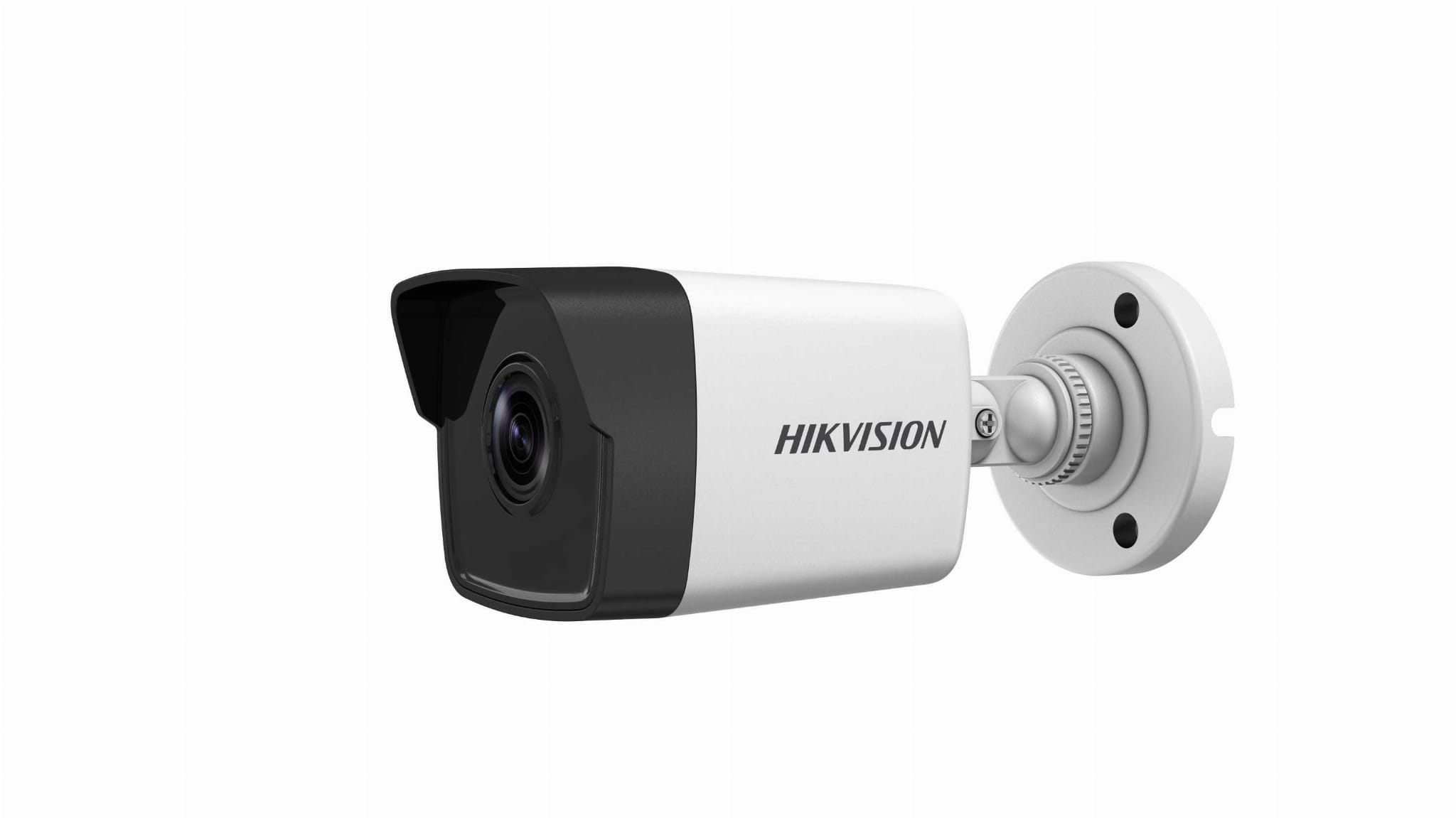

DS-2CD1001-I(2.8mm)

Kamera IP Hikvision w obudowie typu bullet, rozdzielczość 1MP (max. 1920x1080@30kl/s), przetwornik: 1/4" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektywy: 2.8mm/F2.2, kąt widzenia 92st. lub 4 mm/F2.2, kąt widzenia 70st. lub 6mm/F2.2, kąt widzenia 56st.. Kompresja: H.264+/H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, BLC, ROI: 1 obszar. Regulacja położenia 3D. Wymiary: 69.1x66x172.7 mm. IP67. Temperatura pracy: -30st.C do +60st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 1/ 4 " progressive scan CMOS
 Up to 1.0 megapixel
 2.8mm/4 mm/6mm fixed focal lens
 Up to 30 m IR range
 Dual stream
 Digital WDR ( Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP67
 Mobile monitoring via Hik -Connect or iVMS -4500

DS-2CD1001-I
1.0 MP CMOS Network Bullet Camera




Camera
Image Sensor 1/ 4 " progressive scan CMOS
Min. Illumination Color: 0.01Lux @(F1.2, AGC ON),0 Lux with IR
Shutter Speed 1/3s to 1/10 0,000 s, support slow shutter
Lens
2.8 mm @F2.2, horizontal field of view 92°, 4 mm @F2.2, horizontal field of view 70°
6 mm @F2.2, horizontal field of view 56°
Lens Mount M12
Day &Night IR cut filter with auto switch
3 -Axis Adjustment (Bracket) Pan: 0° to 360°, tilt: -90° to 90°,rotation: 0° to 360°
DNR(Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) Digital WDR
Compression Standard

Video Compression
Main stream: H.264
Sub stream: H.264/MJPEG
H.264 Type Base line profile /Main profile
Video Bit Rate 32 Kbps to2 Mbps
Max. Resolution 1 280 x 720
Main Stream
Max. Frame Rate
50Hz: 25fps @ (1280 x 720 )
60Hz: 30fps @ (1280 x 720 )
Sub-stream
Max. Frame Rate
50Hz: 25fps @ ( 640 x 480, 352 x 2 88,320 x 240)
60Hz: 30fps @ ( 640 x 480, 352 x 240,320 x 240 )
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Detection Motion detection
Alarms Video tampering , network disconnect ed, IP address conflict ed
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X,
QoS, IPv6 , Bonjour
Standard ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function Anti- flicker , heartbeat, mirror, password protection, privacy mask, watermark
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions - 30 °C to 60 °C ( - 22 °F to1 40 °F), humidity : 95% or less (non -condensing)
Power Supply 1 2 V DC ± 25%, PoE (802.3af)
Power Consumption Max. 4 W/5 W (PoE)
Ingress Protection IP 67
IR Range Up to 30 m
Dimensions 69.1 mm x66 mm x 172.7 mm ( 2.7 " x 2 . 6 " x 6.8 " )
Weight 500 g (1.1 lb.)
Specification



Available Models
DS-2CD10 0 1 - I
Dimension

172 .7 mm (6.8")
69 .1 mm
(2.7")
66
mm
(2.6")

Φ 70 mm
(2.8")


Accessory

DS -1280ZJ - XS
Junction Box






050440170107
