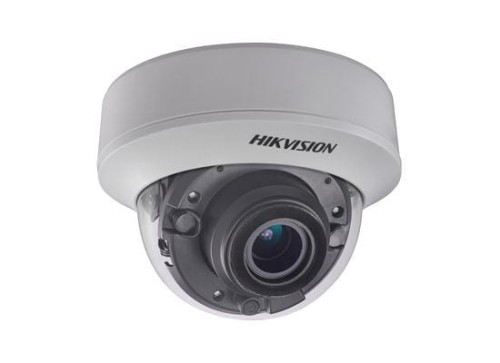

DS-2CC52D9T-AITZE(2.8-12mm)

Kamera Turbo HD w obudowie kopułowej. Rozdzielczość 1080p@30kl/s, Przetwornik 2MP progressive scan CMOS, czułość: 0.003Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, promiennik typu EXIR, dzień/noc ICR, WDR 120dB, Smart IR, AGC, 3D DNR, WB (ATW/AWC-SET/Manual), BLC/HLC, Defog, 8 stref prywatności, 4 stref detekcji ruchu, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw typu moto-zoom: 2.8-12mm, kąt widzenia 32.1st.-98st.. 3-osiowa regulacja położenia. Wymairy śr.136x101.9mm. 1 alarm wej/wyj. Waga około 800g. Temperatura pracy -40st.C~60st.C. Zasilanie 24VAC/12VDC/PoC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
* 2.0 megapixel progressive scan CMOS
* Analog HD output, up to 1080p resolution
* 2.8 to 12 mm motorized vari-focal lens
* OSD menu
* 120 dB true WDR
* Semi-auto focus
* EXIR 2.0, up to 40 m IR distance
* 1 alarm in/out
* PoC
* Up the Coax (HIKVISION-C)

DS-2CC52D9T-AITZE
2MP Ultra Low-Light PoC Dome Camera







Specification
Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Effective Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max.: 30 times
Lens 2.8 mm to 12 mm
Horizontal Field of View 32.1° to 98°
Lens Mount Φ14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 340°, Tilt: 0° to 75°, Rotate: 0° to 355°
Synchronization Internal synchronization
WDR > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (White & Black)
White Balance ATW/AWC-SET/MANUAL
Privacy Mask ON/OFF, 8 programmable privacy masks
Motion 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
2D & 3D DNR ON/OFF
Voltage Detection Support
Functions Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title
Scene Indoor/outdoor/indoor1/low light
Interface
Video Output 1 HD analog output/1 Vp-p composite output (75Ω/BNC)
Alarm 1 alarm in/out
General
Operating Conditions -40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation)
Power Supply 24 V AC/12 V DC ±30%/PoC.at
Power Consumption Max.: 6 W
IR Distance Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C
Dimensions Φ 136 mm x 101.9 mm (5.35" x 4.01")
Weight Approx. 800 g (1.76 lb.)







Order Model
DS-2CC52D9T-AITZE
* PoC function is only available when cooperating with DS-1TPXXX.
Dimensions
83
.5
mm
(3
.29
")
46 mm
(1.81")
99.94 mm
(3.93")
101
.94
mm
(4
.01
")
136 mm (5.35")
46.06 mm
(1.81")
83
.5
mm
(3
.29
")


Accessories

DS-1271ZJ-I30
Pendant Mounting Bracket
DS-1273ZJ-I30
Wall Mounting Bracket
DS-1249ZJ
In-Ceiling Mounting Bracket
DS-1240ZJ
Vertical Pole Mounting Bracket
