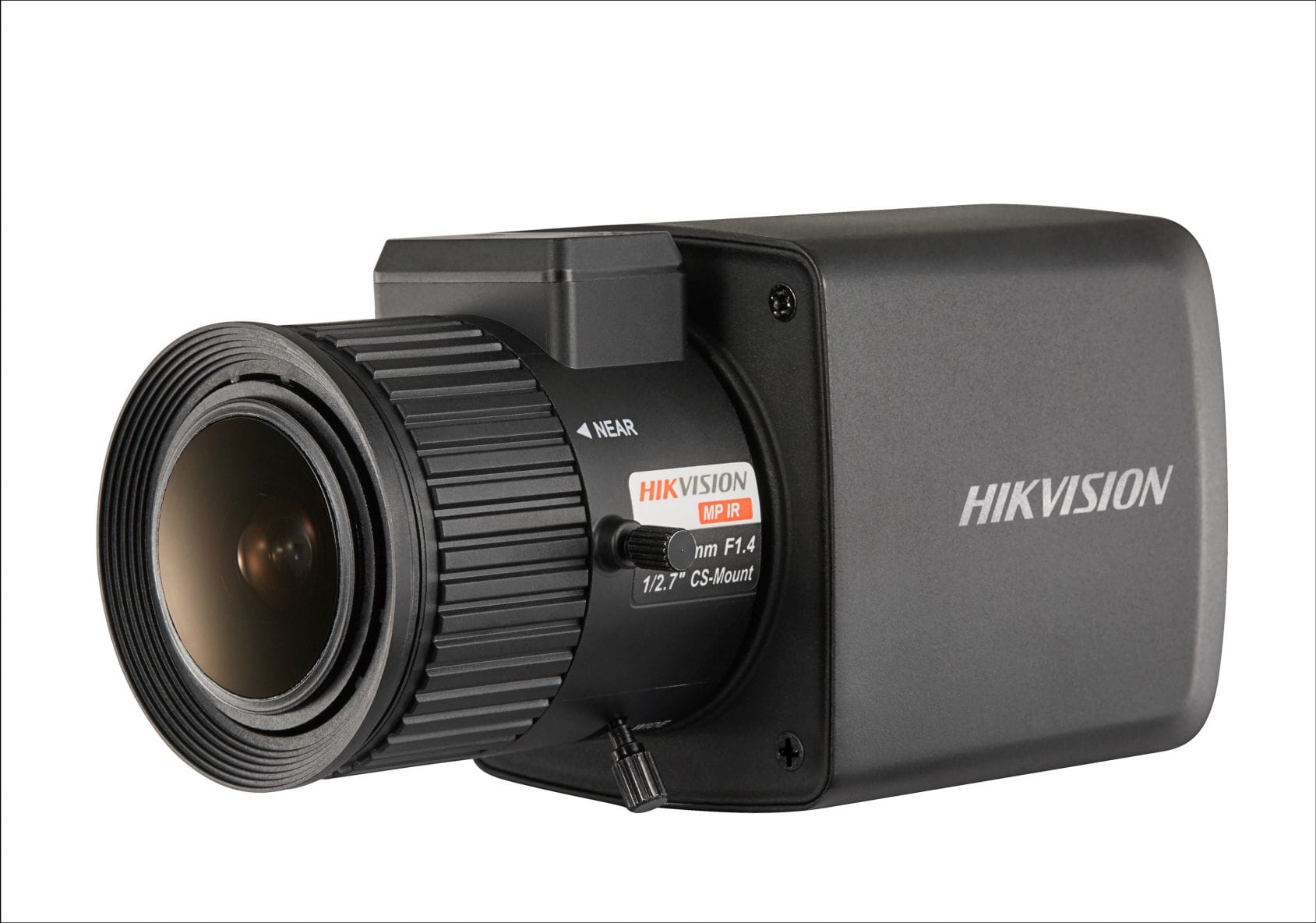

DS-2CC12D8T-AMM

Kamera Turbo-HD Hikvision w obudowie typu Box. Rozdzielczość PAL:1080p@25kl/s, NTSC: 1080p@30kl/s Przetwornik 2MP CMOS, czułość: 0.005Lux (F1.2, wł. AGC), 0 Lux z IR, 120dB true WDR, AGC, DNR, WB, BLC, Wymiary:69.29 mm x 54 mm x 56 mm , waga g. Temperatura pracy-30st.C~60st.C. Zasilanie 24VAC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 2 MP high performance CMOS
 Ultra-low light
 1920 x 1080 resolution
 120 dB true WDR, 3D DNR
 Up the coax (HIKVISION-C)

DS-2CC12D8T-AMM
2 MP Ultra-Low Light Box Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens Mount C/CS mount
Auto-iris DC drive
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation Support
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English, Chinese
Functions Brightness, sharpness, mirror
Interface
Video Output 1 HD analog output/1 CVBS output (75Ω/BNC)
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 80% or less (non-condensation)
Power Supply
12 VDC ±25%
-A: 24 VAC ±25%
Power Consumption Max. 3 W
Material Metal
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 69.29 mm x 54 mm x 56 mm (2.73" x 2.13" x 2.2")
Weight Approx. 175 g (0.39 lb.)
Specification



Order Model
DS-2CC12D8T-AMM
Dimension
46.69 mm (1.84")
69.29 mm (2.73")
54 mm (2.13")
5
6

m
m

(
2
.
2
"
)
¼-20UNC


Accessory

TV2710D-MPIR
Manual Vari-focal Lens

DS-1292ZJ
Wall Mount

DS-1330HZ
Indoor Housing

DS-1331HZ
Outdoor Housing

DS-1332HZ
Indoor Housing

DS-1H18
Video Balun

X41T
Camera Tester
