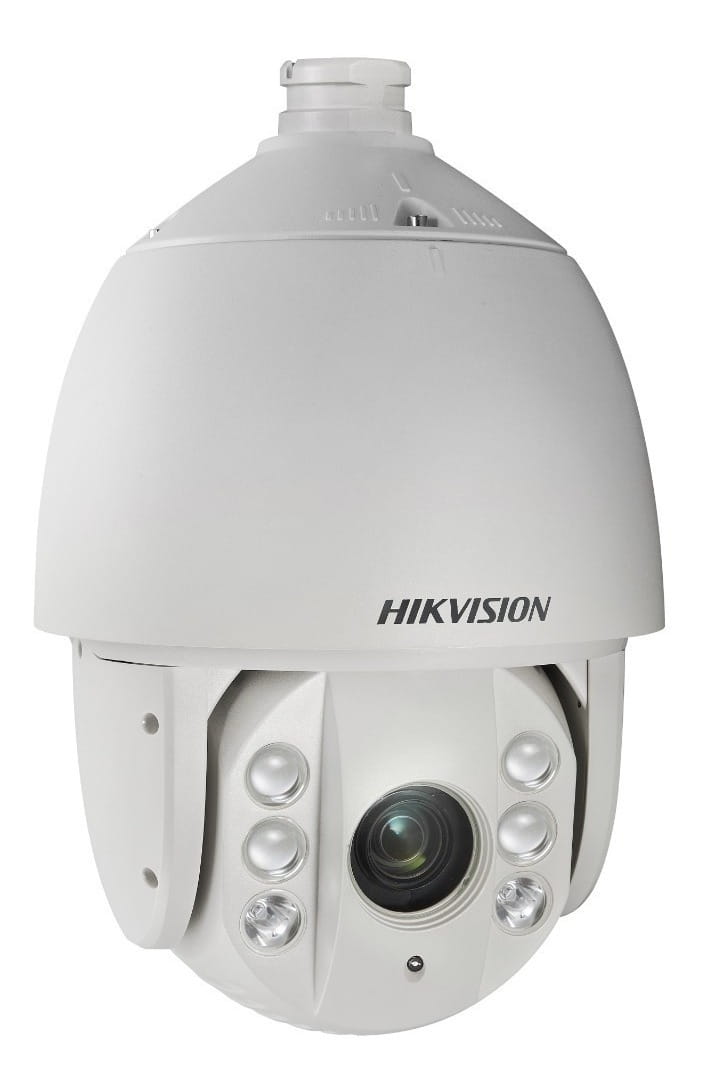

DS-2AE7232TI-A(D)

Kamera Turbo-HD PTZ Hikvision. Rozdzielczość max. 1920x1080@30kl/s, przetwornik: 1/2.8" Progressive Scan CMOS, czułość: Kolor: 0.005 Lux (F1.2, wł. AGC), CZ/B: 0.001 Lux (F1.2, wł. AGC), Zakres IR do 150m, autoadaptacja diód IR, dzień/noc ICR, zoom optyczny 32x (ogniskowa 4.8-153mm), kąt widzenia od 54.2st. do 1.97st. apertura: F1.2-F4.4, zoom cyfrowy 16x. Funkcje: AGC, WDR: 120dB, BLC, HLC,EIS,obszar ostrości, 3D DNR, 8 masek prywatności. Prędkość obrotu w poziomie: 0.1st. - 160st./s, prędkość obrotu w pionie: 0.1st.- 120st./s, zakres obrotu: 360st. bez punktu krańcowego, zakres wychylenia pionowego: od -15st. do 90st. (z funkcją AutoFlip), Ilość presetów: 256, Ilość patroli: 10 (do 32 presetów na patrol), trasy: max. 5. Funkcja parkowania, Sterowanie: RS-485 (Hikvision, Pelco-P/D),możliwość przełączenia wyjść wideo: TVI/AHD/CVI/CVBS, wyjście analogowe PAL. we/wy alarmowe:2/1, Temperatura pracy: -30st.C~65st.C. Stopień ochrony: IP66. Wymiary: śr.220x353.4 mm, waga około 4.5 kg. Zasilanie 24VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Hikvision DS-2AE7232TI-A(C) IR Turbo 7-Inch Speed
Dome is able to capture high quality images in poor light
environment. The black anti-reflective glass increases the
luminousness which helps IR distance reach up to 150 m.
The embedded CMOS chip makes WDR, and real-time
1920 x 1080 resolution possible. With the help of the 32x
optical zoom, and IR cut filter, the camera offers more
details over an expansive area.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 32x optical zoom, 16x digital zoom
* 120 dB true WDR (Wide Dynamic Range)
* Up to 150 m IR distance
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video output


DS-2AE7232TI-A(C)
2 MP IR Turbo 7-Inch Speed Dome




Specification
Camera
Model DS-2AE7232TI-A(C)
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.2, AGC ON)
B/W: 0.001 Lux @(F1.2, AGC ON)
0 lux with IR
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB
Shutter Time
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Digital Zoom 16x
Privacy Mask 8 programmable privacy masks
BLC (Backlight Compensation) Yes
HLC (highlight Compensation) Yes
EIS (Electric Image Stabilization) Yes
Regional Focus Yes
Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 4.8 mm to 153 mm, 32x Optical
Aperture Range F 1.2 to F 4.4
Horizontal Field of View 54.2° to 1.97° (wide-tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 3.5 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 160°/s
Pan preset speed: 160°/s
Tilt Range -15° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 120°/s
Tilt preset speed: 120°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes







Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Infrared
IR Distance Up to 150 m
IR Intensity Automatically adjusted depending on the zoom ratio
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
24 VAC
Max. 40 W (IR:14 W)
Working Temperature -30° C to 65° C (-22° F to 149° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimension Ø 220 mm x 353.4 mm (Ø 8.66" x13.91")
Weight (approx.) 4.5 kg (9.92 lb.)






Order Model
DS-2AE7232TI-A(C)
Dimensions
Ø 47 mm
(1.85" )
Ø 220 mm (8.66" )
3
5
3.
4

m
m

(
1
3
.
9
1
"

)


Accessories








0300441080403




DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount

DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount

DS-1602ZJ
Wall Mount
