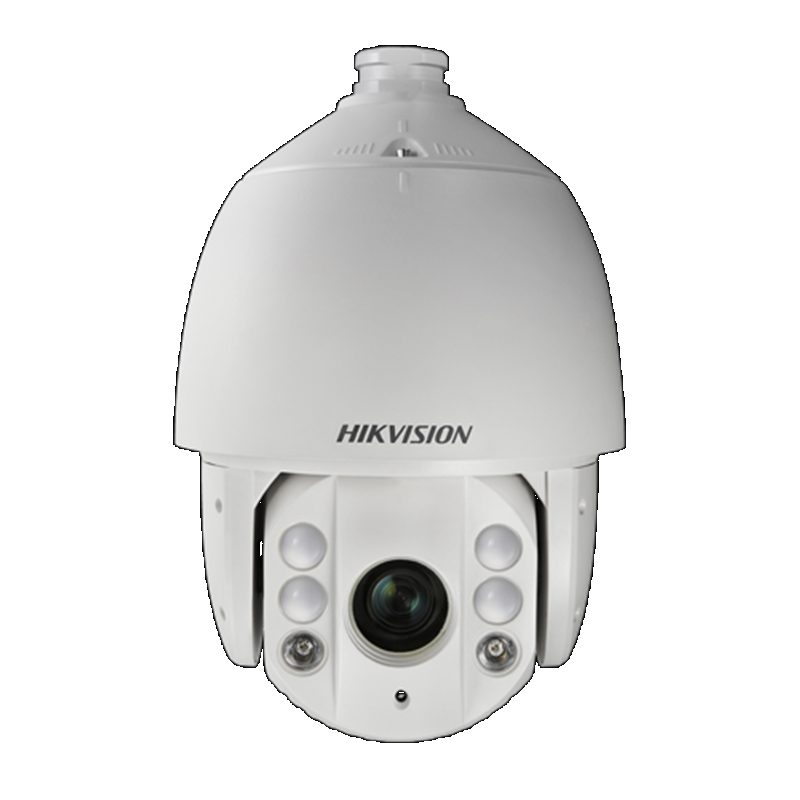

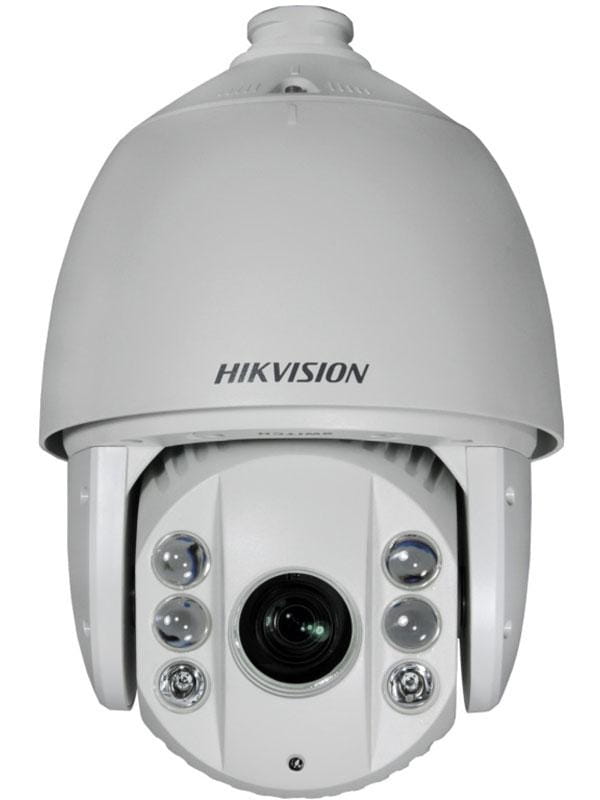

DS-2AE7123TI-A

Kamera Turbo-HD PTZ IR Hikvision, rozdzielczość 720p@30kl/s, przetwornik: 1/3" Progressive Scan CMOS. Dzień/noc ICR. Czułość: tryb kolorowy 0.02Lux @ F1.6 (wł. AGC), tryb CZ/B: 0.002 Lux/F1.6, 0 Lux z IR, zasięg maksymalny IR 120m, obiektyw autofocus: 4-92mm, zoom optyczny: 23x, zoom cyforwy 16x, apertura F1.6-F3.7. Funkcje: 3D DNR, BLC, 8 stref prywatności. Prędkość obrotu w poziomie: 0.1°-160°/s., prędkość obrotu w pionie: 0.1°-120°/s., (dla funkcji preset odpowiednio: 240°/s. i 200°/s.). Sterowanie po kablu sygnałowym lub RS-485 (wbudowany port, protokoły: Hikvision, Pelco-D, Pelco-P [automatyczna adaptacja]). Funkcje programowane: Preset (256) / Patrol (8) / Pattern (4) / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan. Temperatura pracy: -30°C~65°C. Zasilanie: 24VAC. Klasa szczelności IP66. Wymiary: śr.220×353.4mm, waga: 4,5 kg....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

©2006 – 2014 by HIKVISION. All rights reserved.
1

DS-2AE7123TI
E Series IR turbo HD720p PTZ Dome Camera

Key features
IR function:
 0 Lux minimum illumination
 Up to 120m IR distance
 IR light MTBF reaching up to 30,000 hours
System function:
 1/3’’ high performance CMOS, up to 1280x720 resolution
 ±0.1° Preset Accuracy
 Self-adaptive to HIKVISION, Pelco-P/D protocol
 3D intelligent positioning function
 Power-off memory function: restore PTZ & Lens status after reboot
 Built-in temperature sensor, with display of internal temperature
 Lightning protection, surge protection and voltage transient protection
 IP66 standard
 RS-485 communication diagnosis
 Scheduled PTZ movement
 UTC(Up the Coax) function
Camera function:
 Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
 Privacy masks programmable
 3D DNR, digital WDR
PTZ function:
 360° endless pan range and -15°-90° tilt range
 240°/s Pan Preset Speed and 200°/s Tilt Preset Speed
 0.1°-160°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed
 256 presets programmable; preset image freezing capability




©2006 – 2014 by HIKVISION. All rights reserved.
2

 8 patrols, up to 32 presets per patrol
 4 patterns, with the total recording time not less than 10 minutes
 Proportional zoom function
 Park action: auto call up of PTZ movement, after a defined time of inactivity
Application Scenarios
It can be widely applied to places requiring wide-area monitoring display, such as rivers, forests, highways, railways,
airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, outside of residential areas, etc., and
the auto tracking function can be applied to the perimeter protection scenes, e.g., the perimeter of airport, harbor, and
residential community.
Specifications
Model
Parameter
DS-2AE7123TI-A: 24VAC, Outdoor
E Series IR turbo HD720p PTZ Dome Camera
Camera
Image Sensor 1/3’’ CMOS
Max. Image Resolution 1280x720
Frame Rate
50Hz:25fps(1280x720), 50fps (1280x720)
60Hz:30fps(1280x720), 60fps (1280x720)
Min. Illumination
Color: 0.02Lux@(F1.6,AGC ON)
B/W: 0.002Lux@(F1.6,AGC ON)
0 lux with IR
White Balance Auto / Manual / ATW / Indoor / Outdoor
AGC Auto / Manual
S / N Ratio ≥ 50dB
3D DNR Support
Backlight Compensation Support
WDR Digital WDR
Shutter Time
PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the
same video screen
Focus Model Auto / Semiautomatic / Manual
Lens
Focal Length 4-92mm, 23X
Zoom Speed Approx.3.0s(Optical Wide-Tele)
Angle of View 49-2.2 degree(Wide-Tele)
Min. Working Distance 10-1000mm (Wide-Tele)
Aperture F1.6-F3.7



©2006 – 2014 by HIKVISION. All rights reserved.
3

Pan and
Tilt
Pan Range 360° endless
Pan Speed
Pan Manual Speed: 0.1°-160°/s,
Pan Preset Speed: 240°/s
Tilt Range -15°-90° (Auto Flip )
Tilt Speed
Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed: 200°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power-off Memory Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display On / Off
Preset Freezing Support
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication
diagnosis
Support
Infrared
IR Distance 120m
IR Intensity Automatically adjusted, depending on the zoom ratio
Input/
Output
Monitor Output 1 turbo HD720p output
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function
HIKVISION_C
*Need UTC controller if DVR don’t support UTC function
General
Menu Language English, Chinese
Power
24VAC(for –


T
TT
VV

VTT
UVTV
VTV
MVVΦmm (Φ”x”)
UV

V T
T
MRMR
MR Power box mount:DS-1602ZJ-box



©2006 – 2014 by HIKVISION. All rights reserved.
4

Dimensions

Order models
 DS-2AE7123TI-A, 24VAC, outdoor
Accessories

DS-1602ZJ Long-arm Wall Mount Bracket

Unit: mm
