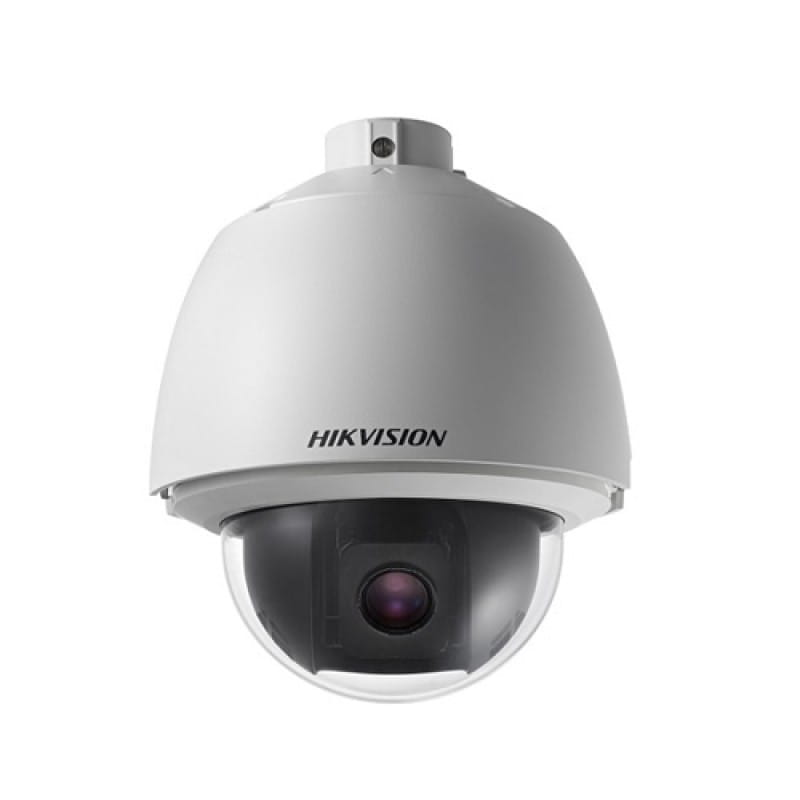

DS-2AE5232T-A(D)

Kamera Turbo-HD PTZ Hikvision. Rozdzielczość max. 1920x1080@30kl/s, przetwornik: 1/2.8" Progressive Scan CMOS, czułość: Kolor: 0.005 Lux (F1.2, wł. AGC), CZ/B: 0.001 Lux (F1.2, wł. AGC), dzień/noc ICR, zoom optyczny 32x (ogniskowa 4.8-153mm), kąt widzenia od 54.2st. do 1.97st. apertura: F1.2-F4.4, zoom cyfrowy 16x. Funkcje: AGC, WDR: 120dB, BLC, HLC,EIS,obszar ostrości, 3D DNR, 8 masek prywatności. Prędkość obrotu w poziomie: 0.1st. - 250st./s, prędkość obrotu w pionie: 0.1st.- 150st./s, zakres obrotu: 360st. bez punktu krańcowego, zakres wychylenia pionowego: od -5st. do 90st. (z funkcją AutoFlip), Ilość presetów: 256, Ilość patroli: 10 (do 32 presetów na patrol), trasy: max. 5. Funkcja parkowania, Sterowanie: RS-485 (Hikvision, Pelco-P/D),możliwość przełączenia wyjść wideo: TVI/AHD/CVI/CVBS, wyjście analogowe PAL. we/wy alarmowe:2/1, Temperatura pracy: -30st.C~65st.C. Stopień ochrony IP66. Wymiary: śr.220x326mm, waga około 3kg. Zasilanie 24VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2AE5232T-A(E)

Kod produktu zamiennego: 301205347

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Hikvision DS-2AE5232T-A(D) Turbo 5-Inch Speed Dome is
able to capture high quality images in poor light
environment. The embedded CMOS chip makes WDR, and
real-time 1920 x 1080 resolution possible. With the help of
the 32x optical zoom, and IR cut filter, the camera offers
more details over an expansive area.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 32x optical zoom, 16x digital zoom
* 120 dB true WDR (Wide Dynamic Range)
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video output




DS-2AE5232T-A(D)
2 MP Turbo 5-Inch Speed Dome



Specification
Camera
Model DS-2AE5232T-A(D)
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50 Hz: 25fps@(1920 x 1080)
60 Hz: 30fps@(1920 x 1080)
Min. Illumination
Color: 0.005 Lux@(F1.2, AGC ON)
B/W: 0.001 Lux@(F1.2, AGC ON)
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB
Shutter Time
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Digital Zoom 16x
Privacy Mask 8 programmable privacy masks
BLC (Backlight Compensation) Yes
HLC (highlight Compensation) Yes
EIS (Electric Image Stabilization) Yes
Regional Focus Yes
Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 4.8 mm to 153 mm, 32x Optical
Aperture Range F 1.2 to F4.4
Horizontal Field of View 54.2° to 1.97° (wide-tele)
Min. Working Distance 100 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 5.6 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 250°/s
Pan preset speed: 250°/s
Tilt Range -5° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 150°/s
Tilt preset speed: 150°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Patrol 10 patrols, up to 32 presets per patrol
Presets 256
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Patrol-d/Frame Scan/Random Scan/None
PTZ Position Display ON/OFF








Preset Freezing Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/Patrol-d/Frame Scan/Random Scan/None
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
24 VAC
Max. 24 W
Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient
protection
Mounting Various mounting modes optional
Dimension Φ 220 mm x 326 mm (Φ 8.66" x 12.83")
Weight (approx.) 3 kg (6.61 Ib.)



Order Model
DS-2AE5232T-A(D)
Dimension
326
mm
(12
.83
")
Φ 156 mm (6.14")Φ 220 mm (8.66")


Accessory

DS-1602ZJ
Wall Mount
DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount



DS-1663ZJ
Celling Mount
DS-1661ZJ
Pendant Mount
DS-1662ZJ
Pendant Mount
DS-1619ZJ
Swan-Neck Mount
