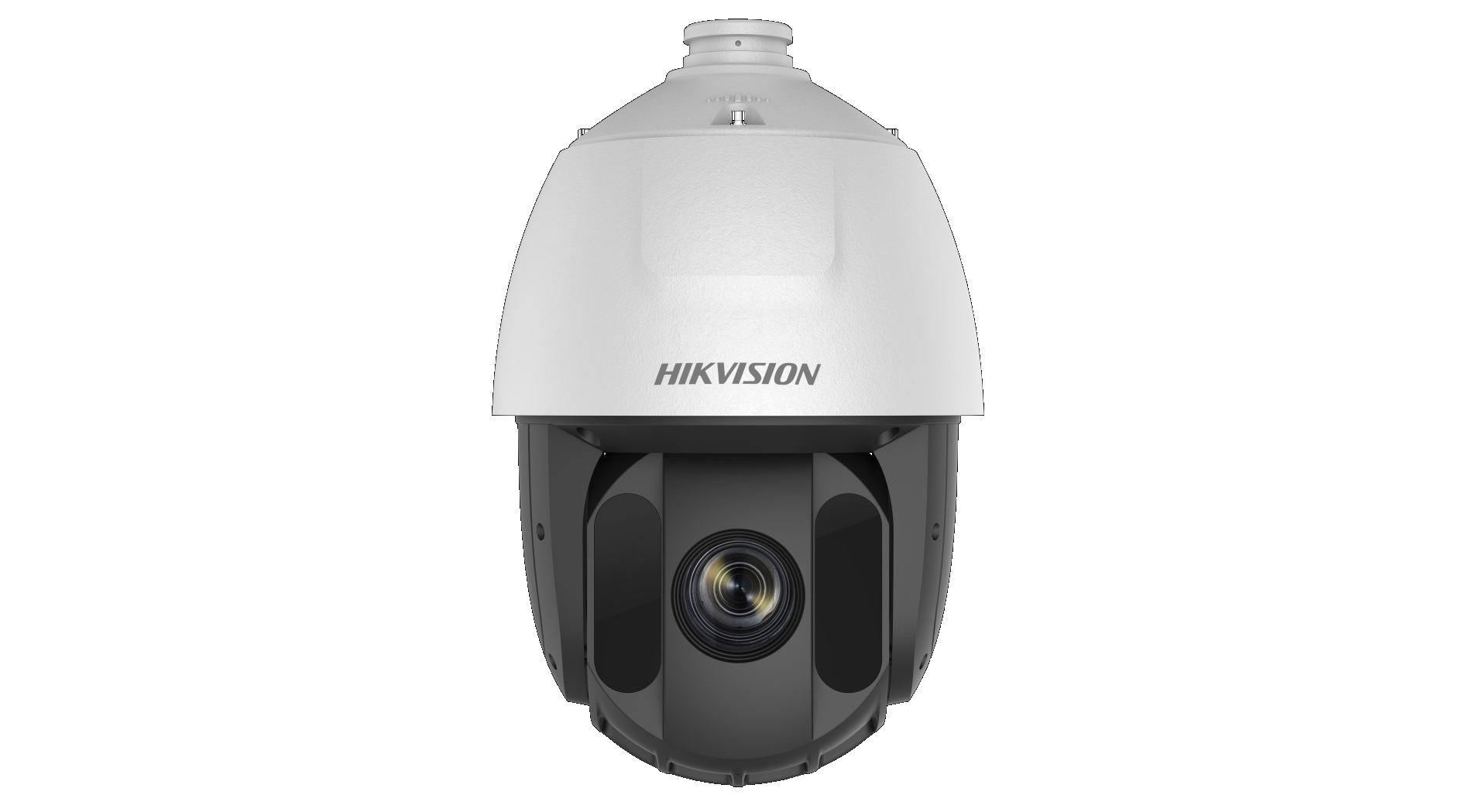

DS-2AE5232T-A(C)

Kamera Turbo-HD PTZ Hikvision. Rozdzielczość max. 1920x1080@30kl/s, przetwornik: 1/2.8" Progressive Scan CMOS, czułość: tryb kolorowy: 0.005 Lux (F1.6, wł. AGC), CZ/B: 0.001 Lux (F1.6, wł. AGC), dzień/noc ICR, zoom optyczny 32x (ogniskowa 4.8-153mm), kąt widzenia od 54.2st. (zoom blisko) do 1.97st. (zoom daleki), światłosiła obiektywu: F1.6-F4.6, zoom cyfrowy 16x. Funkcje: AGC, WDR: 120dB, BLC, 3D DNR, 8 stref prywatności. Prędkość obrotu w poziomie: 0.1st. - 250st./s, prędkość obrotu w pionie: 0.1st.- 150st./s, zakres obrotu: 360st. bez punktu krańcowego, zakres wychylenia pionowego: od 0st. do 90st. (z funkcją AutoFlip), Ilość presetów: 256, Ilość patroli: 8 (do 32 presetów na patrol), trasy: max. 4. Sterowanie: koncentryk (Hikvision-C), RS-485 (Hikvision, Pelco-P/D- autonegocjacja), wyjście analogowe PAL. Temperatura pracy: -30st.C~65st.C. Klasa szczelności IP66. Wymiary: śr.220x326mm, waga około 3kg. Zasilanie 24VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Hikvision DS-2AE5232T-A Turbo 5-Inch Speed Dome is
able to capture high quality images in poor light
environment. The embedded CMOS chip makes WDR ,
and real -time 1920 x 1080 resolution possible. With the
help of the 32x optical zoom, and IR cut filter, the camera
offers more details over an expansive area
.
* 1/2.8" HD progressive scan CMOS
y 1920 x 1080 resolution
* 32x optical zoom
* 120 dB true WDR (Wide Dynamic Range)
* 3D intelligent positioning
* Switchable Turbo HD and CVBS outputs


DS- 2 AE 5 2 32T - A
2 MP Turbo 5 -Inch Speed Dome




Specification
Camera
Model DS- 2AE 5 2 32T - A
Image Sensor 1/2.8 " progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
Digital Zoom 16x
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/ MANUAL
DNR 3D DNR
WDR ≥ 120 dB
Shutter Time
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Privacy Mask 8 programmable privacy masks
Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 4.8 mm to 153 mm, 32 x Optical
Aperture Range F 1.6 to F4.6
Horizontal Field of View 54.2° to 1.97° (wide -tele)
Min. Working Distance 10 mm to 1500 mm ( wide to tele )
Zoom Speed Approx. 3.5 s ( optical, wide to tele )
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 250°/s
Pan preset speed: 250°/s
Tilt Range - 15° to 90° ( auto flip )
Tilt Speed
Tilt manual speed: 0.1° to 15 0°/s
Tilt preset speed: 150°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Patrol 10 patrols, up to 32 presets per patrol
Presets 256
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Support
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Position Display ON/OFF
Preset Freezing Support
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero
Calibration/None








Input/Output
Turbo HD Output 1 turbo 1080p output, NTSC (or PAL) composite, BNC
CVBS Output 1.0V[p -p]/75Ω, NTSC (or PAL) composite, BNC
RS -485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco -P, Pelco -D protocol
UTC function UTC protocol (or HIKVISION -C protocol in previous DVR)
General
Menu Language English
Power
24 VAC
Max. 24 W
Working Temperature - 3 0° C to 65° C ( - 22 ° F to 1 49° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimension DS- 2AE 5225TI - A : Ø 220 mm x326 mm (8.66 " x 12.83 " )
Weight (approx.) 3 kg (6.61 Ib . )



Order Model
DS-2AE5232T-A
Dimensions

326 mm (12.83" )
Ø 156 mm (Ø 6.14" ) Ø 220 mm (8.66" )

Accessories








04 001 0 1 071206


DS -1602ZJ -Conner
Conner Mount
DS -1602ZJ -Pole
Pole Mount
DS -1602ZJ -Box
Box Mount

DS -1005KI
USB Joy-stick
DS -1619ZJ
Swan-neck Mount
DS -1662ZJ
Pendant mount
DS -1661ZJ
Pendant mount
DS -1663ZJ
Celling mount

DS -1602ZJ
Wall Mount
