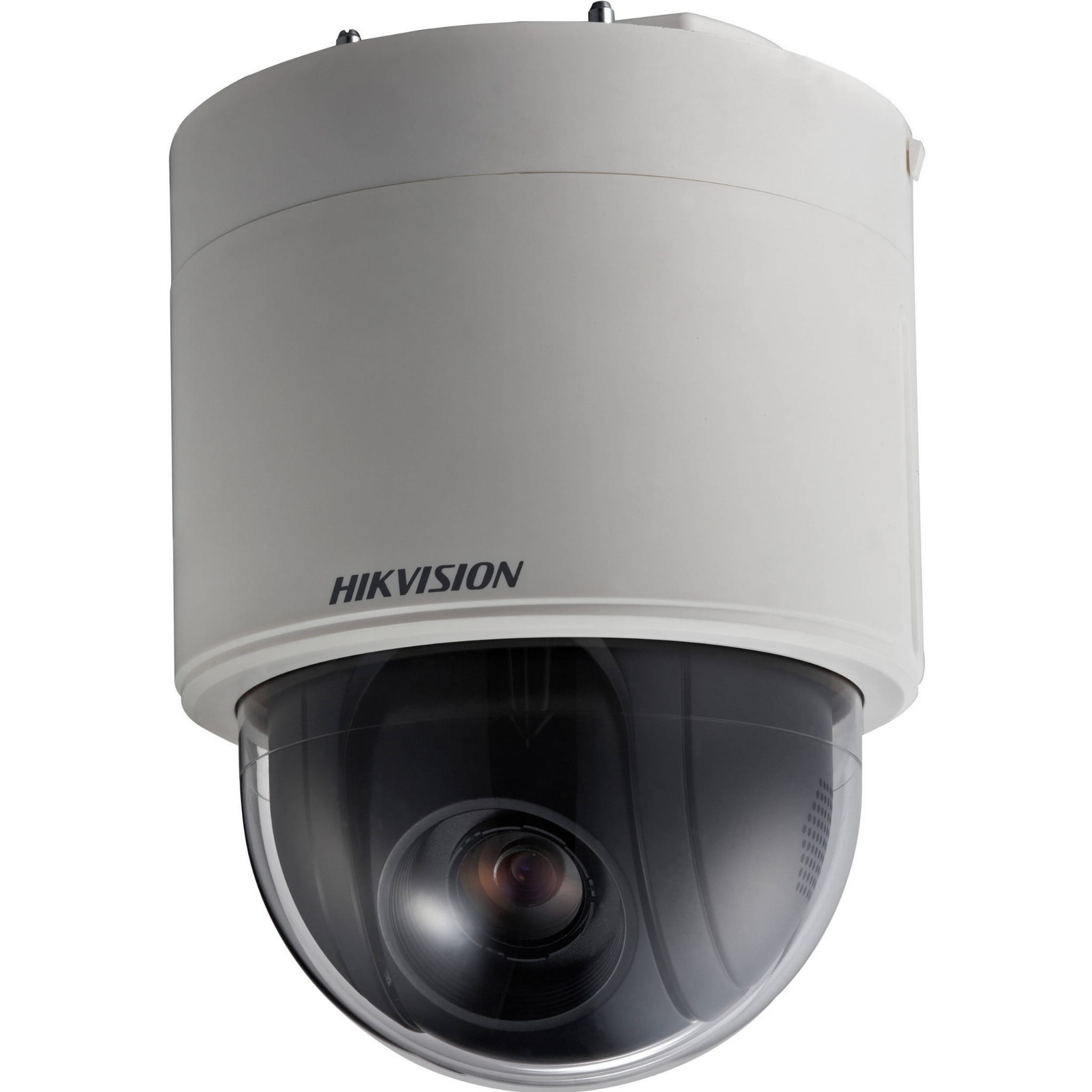

DS-2AE5230T-A3

Kamera Turbo-HD PTZ Hikvision. Rozdzielczość max. 1920×1080@30kl/s, przetwornik: 1/2.8” Progressive Scan CMOS, czułość: tryb kolorowy: 0.05 Lux (F1.4, wł. AGC), CZ/B: 0.005 Lux (F1.4, wł. AGC), dzień/noc ICR, zoom optyczny 30x (ogniskowa 4-120mm), kąt widzenia od 58° (zoom blisko) do 1.7° (zoom daleki), światłosiła obiektywu: F1.4-F4.0, zoom cyfrowy 16x. Funkcje: AGC, BLC, DWDR, 3D DNR, 8 stref prywatności. Prędkość obrotu w poziomie: 0.1° - 300°/s, prędkość obrotu w pionie: 0.1°- 200°/s, zakres obrotu: 360° bez punktu krańcowego, zakres wychylenia pionowego: od -5° do 90° (z funkcją AutoFlip), Ilość presetów: 256, Ilość patroli: 8 (do 32 presetów na patrol), trasy: max. 4. Sterowanie: koncentryk (Hikvision-C), RS-485 (Hikvision, Pelco-P/D- autonegocjacja), wyjście analogowe PAL, wej./wyj. alarmowe: 2/1. Temperatura pracy: -30°C~65°C. IK19. Wymiary: śr.183.4×243mm(wew)/śr.245×236mm(podsufitowy), waga około 3kg. Zasilanie 24VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.hikvision.com

DS-2AE5230T-A(3)
Key features
Dimensions
Accessories
Available models

• 2MP CMOS Image Sensor
• Full HD 1080P Video Output
• 30X optical zoom, 16X digital zoom
• Up the Coax function
• Privacy Masking, 3D DNR
• 3D intelligent positioning

DS-2AE5230T-A, 24VAC, outdoor
DS-2AE5230T-A3, 24VAC, indoor

1080P Analog PTZ Dome Camera

DS-2AE5230T-A(3)
Camera
Image Sensor 1 / 3’’ CMOS
Effective Pixel Max. Image Resolution: 1920(H) x 1080(v)
Max. Image Resolution 1920(H) x 1080(v)
Signal System PAL / NTSC
Min. Illumination Color: 0.02Lux@(F1.6,AGC ON) B/W: 0.002Lux@(F1.6,AGC ON)
White Balance Auto / Manual / ATW / Indoor / Outdoor
AGC Auto / Manual
S / N Ratio ≥50dB
3D DNR Support
Backlight Compensation Support
Shutter Time PAL: 1-1 / 10,000s ; NTSC: 1-1 / 10,000s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the
same video screen
Focus Model Auto / Semiautomatic / Manual
Lens
Focal Length 4-120mm, 30X
Zoom Speed Approx.3.0s(Optical Wide-Tele)
Angle of View 58-1.7 degree(Wide-Tele)
Min. Working Distance 10-1500mm (Wide-Tele)
Aperture F1.6-F4.4
Pan and Tilt
Pan Range 360° endless
Pan Speed Pan Manual Speed: 0.1°-250° / s,; Pan Preset Speed: 300° / s
Tilt Range -5°-90° (Auto Flip )
Tilt Speed Tilt Manual Speed: 0.1°-150° / s,; Tilt Preset Speed: 200° / s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power-off Memory Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display On / Off
Preset Freezing Support
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication
diagnosis
Support
Input / Output
Monitor Output 1 turbo HD1080p output; 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 Interface Half-duplex mode; Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function Self-adaptive PELCO_C, HIKVISION_C(need UTC controller)
General
Menu Language English, Chinese
Power 24VAC; Outdoor dome: Max. 20W (Heater On), Max. 12W(Heater Off); Indoor dome: Max.12W
Working Temperature /
Humidity
-30 °C-65°C(-22°F-149°F)(outdoor dome) / -10°C-50°C(14°F-122°F)(indoor dome )
90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Impact Protection
Outdoor: IEC60068-275Eh, 20J; EN50102, up to IK10
Indoor: IEC60068-275Eh, 10J; EN50102, up to IK09
Dimensions
φ 220x305mm ( φ 8.66”x12.00”)(Outdoor); φ 183.4x243mm( φ 7.22”x9.56”) (Indoor)
φ 245x236mm( φ 9.65”x9.29”) (In-ceiling)
Weight (approx.) 3Kg (6.61 Ibs)
Mount Option (only suitable
for outdoor dome)
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-
pole; Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
DS-1602ZJ-Box DS-1619ZJDS-1602ZJ-CornerDS-1602ZJ DS-1602ZJ-Pole
