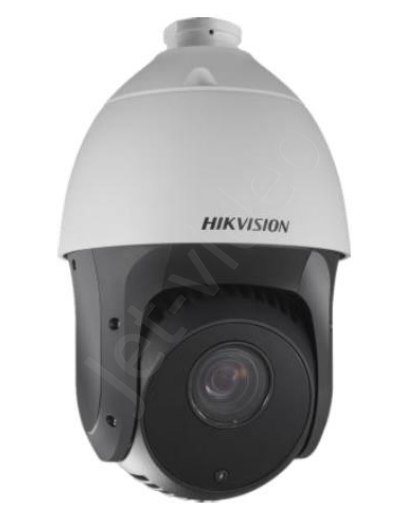

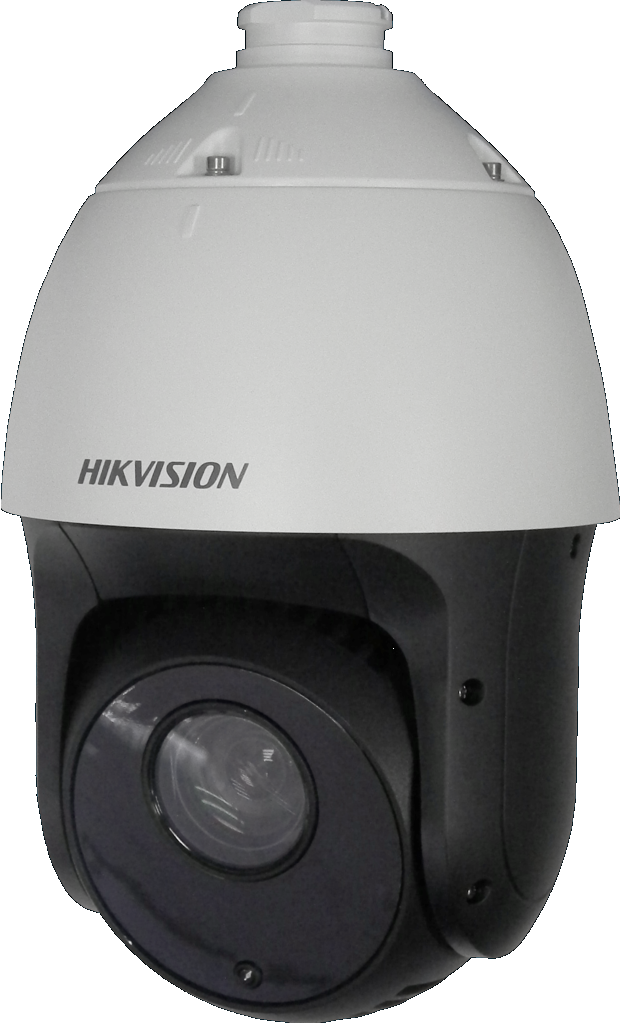

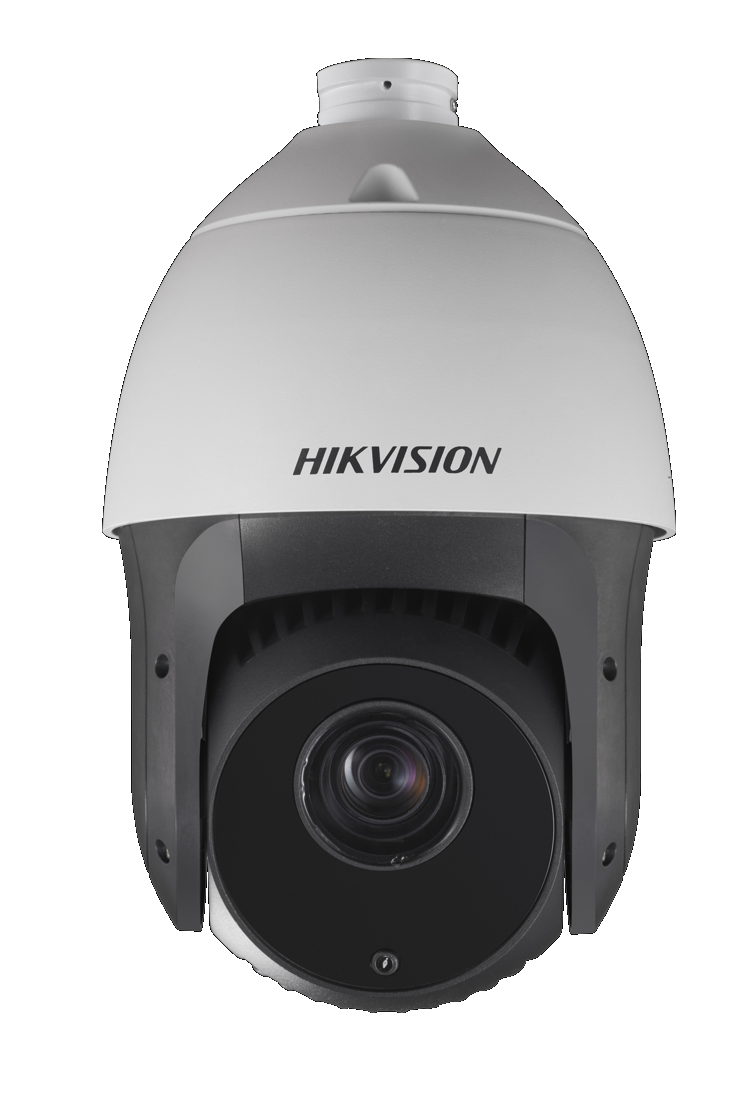

DS-2AE5223TI-A

Kamera Turbo-HD PTZ Hikvision. Rozdzielczość 1920×1080, przetwornik: 1/2.8” Progressive Scan CMOS, czułość: tryb kolorowy: 0.05 Lux (F1.4, wł. AGC), CZ/B: 0.005 Lux (F1.4, wł. AGC), 0 Lux IR ON, zasięg IR do 150m, dzień/noc ICR, zoom optyczny 23x (ogniskowa 4-92mm), kąt widzenia od 49° (zoom blisko) do 2.2° (zoom daleki), światłosiła obiektywu: F1.4-F3.5. Funkcje: AGC, DWDR, 3D DNR, Smart IR, 8 stref prywatności. Prędkość obrotu w poziomie: 0.1° - 400°/s, prędkość obrotu w pionie: 0.1°- 120°/s, zakres obrotu: 360° bez punktu krańcowego, zakres wychylenia pionowego: od -15° do 90° (z funkcją AutoFlip), Ilość presetów: 256, Ilość patroli: 8 (do 32 presetów na patrol), trasy. Sterowanie: koncentryk (Hikvision-C), RS-485 (Hikvision, Pelco-P/D- autonegocjacja), wyjście analogowe PAL, wej./wyj. alarmowe: 2/1. Temperatura pracy: -30°C~65°C. Klasa szczelności IP66. Wymiary: śr.185×330mm, waga około 4kg. Zasilanie 24VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2AE5123TI/5223TI-A
HD720P/1080P Turbo IR PTZ Dome Camera
HikvisionDS-2AE5123TI/5223TI-A PTZ Dome Cameras are
able to capture high quality images in low light environment
with its black anti-reflective glass. The black anti-reflective
glass increase the luminousness which can reach up to 150m
IR distance.
Embedded with HDprogressive scan CMOS chip makes DWDR
and 1MP/2MP real-time resolution possible. With the 23X
optical zoom Day/Night lens, the camera offers more details
over expansive areas.
KeyFeatures
*1/3“,1/2.8’’HDProgressiveScanCMOS
*1280x720/1920x1080
*23XOpticalZoom
*DWDR
*3Dintelligentpositioningfunction
*Upto150mIRdistance
*SupportTurboHDandBNCoutput


DS-2AE5123TI/5223TI-A
HD720P/1080P Turbo IR PTZ
Dome Camera
Function Description
System function:
•1/3’’ , 1/2.8’’ high performance CMOS, up to
1280x720/1920x1080 resolution
•±0.1°Preset Accuracy
•Self-adaptive to HIKVISION, Pelco-P/D protocol
•3D intelligent positioning function
•Power-off memory function: restore PTZ & Lens status
after reboot
•Built-in temperature sensor, with display of internal
temperature
•Lightning protection, surge protection and voltage
transient protection
•IP66 standard
•RS-485 communication diagnosis
•Scheduled PTZ movement
•UTC(Up the Coax) function
•CVBS output
Camera function:
•Auto focus, auto white balance, backlight compensation
and auto/manual day & night switch
•Privacy masks programmable
•3D DNR, DWDR
PTZ function:
•360°endless pan range and -15°-90°tilt range
•400°/s Pan Preset Speed and 200°/s Tilt Preset Speed
•0.1°-400°/s Manual Pan Speed and 0.1°-120°/s
Manual Tilt Speed
•256 presets programmable; preset image freezing
capability
•8 patrols, up to 32 presets per patrol
•4 patterns, with the total recording time not less than 10
minutes
•Proportional zoom function
•Park action: auto call up of PTZ movement, after a defined
time of inactivity
IR function:
•0 Lux minimum illumination
•Up to 150m IR distance
•IR light MTBF reaching up to 30,000 hours
•Smart IR mode


DS-2AE5123TI/5223TI-A
HD720P/1080P Turbo IR PTZ
Dome Camera
ModelDS-2AE5123TI-ADS-2AE5223TI-A
Camera Module
ImageSensor1/3’’ Progressive Scan CMOS1/2.8’’ Progressive Scan CMOS
Min.IlluminationColor: 0.05Lux@(F1.4,AGC ON);B/W: 0.005Lux@(F1.4,AGC ON)
Max.ImageResolution1280 x7201920 x 1080
FocalLength4-92.0mm, 23x
DigitalZoom16X
ZoomSpeedApprox.3s(Optical Wide~Tele)
AngleofView49-2.2 degree(Wide-Tele)
Min.WorkingDistance10~1,000mm(Wide~Tele)
ApertureRangeF1.4~F3.5
FocusModeAuto / Semiautomatic / Manual
DWDRSupport
S/NRatio≥ 50dB
ShutterTime1-1/10,000s
AGCAuto / Manual
WhiteBalanceAuto/Manual/ATW/Indoor/Outdoor
Day&NightIR Cut Filter
PrivacyMask8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Enhancement3D DNR
Pan and Tilt
RangePan:360°endless; Tilt: -15°~90°(Auto Flip)
Speed
Pan Manual Speed:0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Number of Preset256
Patrol8 patrols,up to 32 presets per patrol
Park ActionPreset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan
Scheduled TaskPreset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan
RS-485 communication
diagnosis
Support
Infrared
IRDistanceUp to 150m
IR Intensity Automatically adjusted, depending on the zoom ratio
Alarm
Turbo HD Output1 turbo HD720P/1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
CVBS Output1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Alarm Input2
Alarm Output1
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC functionHIKVISION_C


Accessories
DS-2AE5123TI/5223TI-A
HD720P/1080P Turbo IR PTZ
Dome Camera
Dimensions
General
Menu LanguageEnglish
Power 24VAC,Max. 24W (Heater On), Max. 18W(Heater Off)
Working Temperature /
Humidity
-30 °C-65°C(-22°F-149°F)
90% or less
Protection Level
IP66 standard
TVS 4,000V lightning protection, surge protection and voltage transient protection
MountingVarious mounting modes optional
Dimensions Φ185x330mm (Φ7.28”x12.99”)
Weight (approx.)4Kg (8.81Ibs)
Mount Option (only suitable
for outdoor dome)
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ



DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount

DS-1005KI
USB Joy-stick

DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount
DS-1602ZJ
Wall Mount
