DS-2AE5023-A
Opis

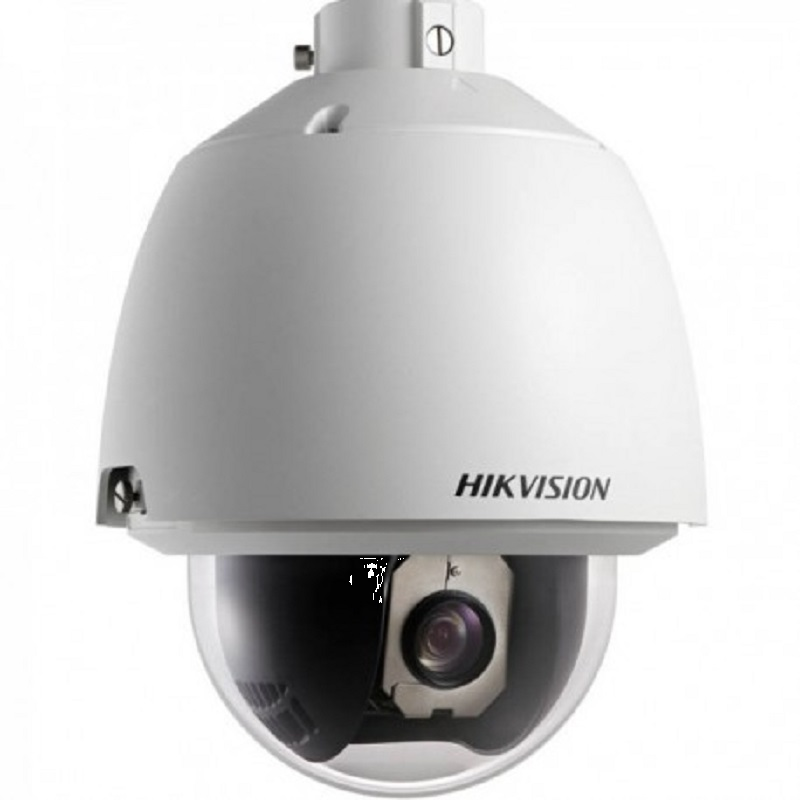

Kamera PAL: 976(H)×582(V)), NTSC:976(H)×494(V),1/3" Sony CCD, ICR, Color:700TVL, 0.02Lux/(F1.6, AGC ON), 0.0008Lux /(F1.6, AGC ON, sensitivity×256); B/W: 750 TVL, 0.002Lux/(F1.6, AGC ON), 0.00008Lux /(F1.6, AGC ON, sensitivity×256), Optical zoom: 23x, Focus:4-92mm, Digital zoom: 16x, 3D DNR, Digital WDR, Pan Speed: 0.1° -250°/s, Tilt Speed: 0.1° -150°/s, Up the Coax...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2AE5023
E Series 5 Inch Analog PTZ Dome Camera
Key features
System function:
1/3’’ high performance CCD
±0.1° Preset Accuracy
Self-adaptive to HIKVISION, Pelco-P/D protocol
3D intelligent positioning function
Power-off memory function: restore PTZ & Lens status after reboot
Built-in temperature sensor, with display of internal temperature
Lightning protection, surge protection and voltage transient protection
IP66 standard (outdoor dome)
Impact Protection: IEC60068-2-75 test, Eh, 5J; EN50102, up to IK08
RS-485 communication diagnosis
Manchester code communication diagnosis capability
Scheduled PTZ movement
UTC(Up the Coax) function
Camera function:
Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
Privacy masks programmable
3D DNR, digital zoom
Digital WDR
PTZ function:
360° endless pan range and -5°-90° tilt range
300°/s Pan Preset Speed and 200°/s Tilt Preset Speed
0.1°-250°/s Manual Pan Speed and 0.1°-150°/s Manual Tilt Speed
256 presets programmable; preset image freezing capability
10 patrols, up to 32 presets per patrol
5 patterns, with the total recording time not less than 15 minutes
Proportional zoom function
Park action: auto call up of PTZ movement, after a defined time of inactivity
©2006 – 2014 by HIKVISION. All rights reserved.
2
Application Scenarios
It can be widely applied to places requiring wide-area monitoring display, such as rivers, forests, highways, railways,
airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, outside of residential areas, etc., and
the auto tracking function can be applied to the perimeter protection scenes, e.g., the perimeter of airport, harbor, and
residential community.
Specifications
Model
Parameter
DS-2AE5023-A: PAL, 24VAC, Outdoor
DS-2AE5023-A3: PAL, 24VAC, Indoor
DS-2AE5023N-A: NTSC, 24VAC, Outdoor
DS-2AE5023N-A3: NTSC, 24VAC, Indoor
E Series 5 Inch Analog PTZ Dome Camera
Camera
Image Sensor 1/3’’ CCD
Effective Pixel
PAL:976(H)x582(V)
NTSC:976(H)x494(V)
Horizontal Resolution 700TVL
Signal System PAL /NTSC
Min. Illumination
Color: 0.02Lux@( F1.6,AGC ON)
B/W: 0.002Lux@( F1.6,AGC ON)
White Balance Auto / Manual / ATW / Indoor / Outdoor
AGC Auto / Manual
S / N Ratio ≥ 50dB
3D DNR Support
Backlight Compensation Support
Digital WDR Support
Shutter Time
PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the
same video screen
Focus Model Auto / Semiautomatic / Manual
Lens
Focal Length 4-92mm, 23X
Zoom Speed Approx.3.0s(Optical Wide-Tele)
Angle of View 49-2.2 degree(Wide-Tele)
Min. Working Distance 10-1000mm (Wide-Tele)
Aperture F1.6-F3.7
Pan and
Tilt
Pan Range 360° endless
Pan Speed Pan Manual Speed: 0.1°-250°/s,
©2006 – 2014 by HIKVISION. All rights reserved.
3
Pan Preset Speed: 300°/s
Tilt Range -5°-90° (Auto Flip )
Tilt Speed
Tilt Manual Speed: 0.1°-150°/s,
Tilt Preset Speed: 200°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time not less than 15 minutes
Power-off Memory Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display On / Off
Preset Freezing Support
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication
diagnosis
Support
Manchester code and
connection failures
diagnosis
Support
Input/
Output
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
TT
TO
TNOT
General
Menu Language English, Chinese
Power
24VAC
Outdoor dome: Max. 20W (Heater On), Max. 12W(Heater Off)
Indoor dome: Max.12W
Working Temperature /
Humidity
-30 °C-65°C(-22°F-149°F)(outdoor dome) / -10°C-50°C(14°F-122°F)(indoor dome )
90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Impact Protection
Outdoor: IEC60068-275Eh, 20J; EN50102, up to IK10
Indoor: IEC60068-275Eh, 10J; EN50102, up to IK09
Mounting Various mounting modes optional
Dimensions
Φ220x35mm (Φ8.66”x12.”)(Outdoor)
Φ183.4x243mm(Φ7.22”x9.56”) (Indoor)
Φ245x236mm(Φ9.65”x9.29”) (In
PO
T
T
Power box mount:DS-1602ZJ-box
©2006 – 2014 by HIKVISION. All rights reserved.
4
Dimensions
Order models
DS-2AE5023-A, PAL, 24VAC, outdoor
DS-2AE5023-A3, PAL, 24VAC, indoor
DS-2AE5023N-A, NTSC, 24VAC, outdoor
DS-2AE5023N-A3, NTSC, 24VAC, indoor
Accessories
DS-1602ZJ Long-arm Wall Mount Bracket
Unit: mm
