DS-2AE4225T-A3(D)

Kamera analogowa PTZ Turbo DS-2AE4225T-A(D), 1/2.8" progressive scan CMOS, 1920 x 1080, 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080), Kolor 0.005Lux @(F1.6, AGC ON) Cz/B: 0.001Lux @(F1.6, AGC ON), 3D DNR, WDR ≥ 120 Db, 16x zoom cyfrowy, 8 programowalnych masek prywatności, obiektyw: 4.8 mm do 120 mm, 25x Optyczny; HFOV 57.6° do 2.5° (wide to tele) VFOV: 34.4° do 1.4° (wide to tele) DFOV: 64.5° do 2.9° (wide to tele), wyjścia wideo: TVI/AHD/CVI/CVBS; 2/1 we/wyj alarmowe; Funkcja UTC; Zasilanie 24 VAC Max. 20 W; Temp pracy: -30° C do 65° C, IP66; wymiary: Ø 180 × 239.5 mm (Ø 7.1" × 9.4"); waga 2 kg...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

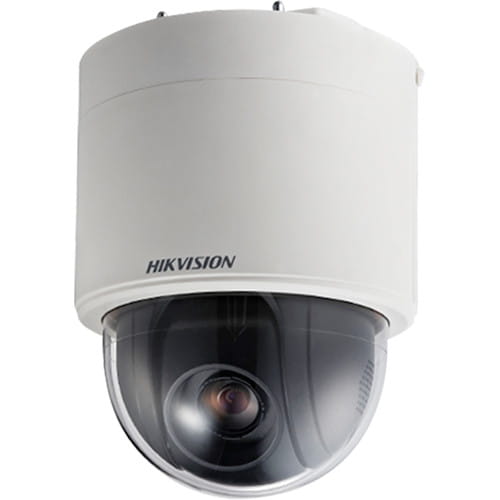

Hikvision DS-2AE4225T-A3(C) Speed Dome is able to
capture high quality images in poor light environment.
Embedded with HD progressive scan CMOS chip makes
WDR, and real-time 1920 x 1080 resolution possible.
With the 25x optical zoom Day/Night lens, the camera
offers more details over expansive areas.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 25x optical zoom, 16x digital zoom
* 120 dB Ture WDR (Wide Dynamic Range)
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video outputs


DS-2AE4225T-A3(C)
2 MP Turbo 4-Inch Speed Dome




Specification
Camera
Model DS-2AE4225T-A3
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005Lux @(F1.6, AGC ON)
B/W: 0.001Lux @(F1.6, AGC ON)
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB










Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 4.8 mm to 120 mm, 25x Optical
Aperture Range F 1.6 to F 3.5
Field of View
Horizontal field of view: 57.6° to 2.5° (wide to tele)
Vertical field of view: 34.4° to 1.4° (wide to tele)
Diagonal field of view: 64.5° to 2.9° (wide to tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 3.6 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s
Tilt Range 5° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes





Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Preset Freezing Yes
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocols
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
24 VAC
Max. 14 W
Working Temperature -10° C to 50° C (14° F to 122° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimension
DS-2AE4225T-A3 (indoor): Ø 165 x 179.5 mm (Ø 6.5" x 7.1")
DS-2AE4225T-A3 (in-ceiling): Ø 165 x 168 mm (Ø 6.5" x 6.6")
Weight (approx.) 2 kg (4.41 Ib.)















Order Model
DS-2AE4225T-A3(C)
Dimensions
Indoor
In-ceiling
1
7
9
.
5

m
m

(
7
.
1
"

)
Ø 165 mm (6.5")
Ø 120 mm (4.7")
Ø 165 mm (6.5")
Ø 120 mm (4.7")
1
6
8

m
m

(
6
.
6
"

)









0304401080410
