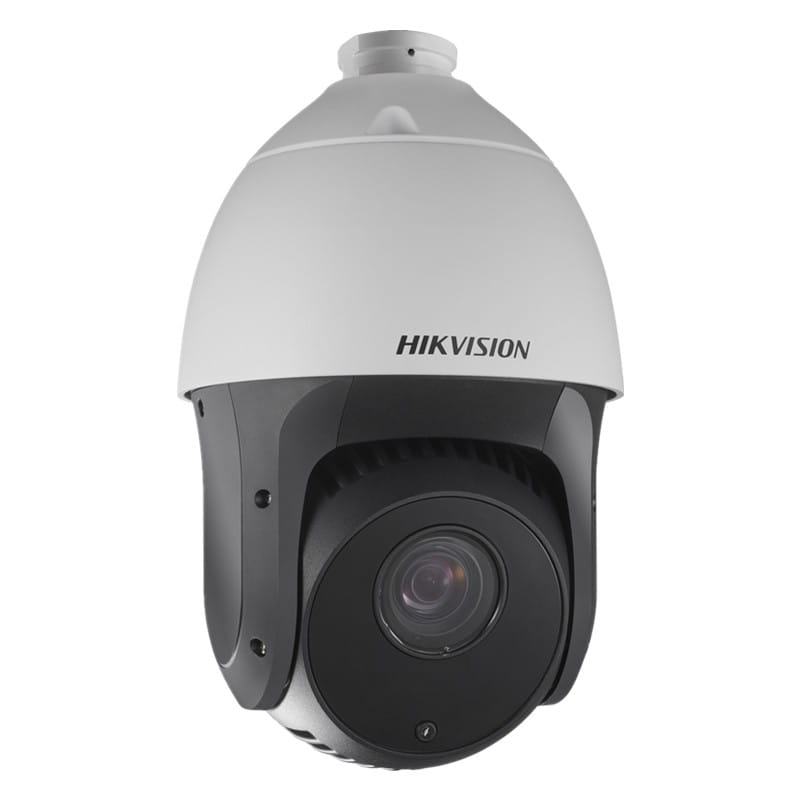

DS-2AE4215TI-D(E) with brackets

Kamera PTZ Turbo Hikvision, rozdzielczość 2MP (max 1920x1080;30kl/s), przetwornik: 1/2.8" Progressive Scan CMOS, czułość: tryb kolorowy: 0.005 Lux (F1.6, wł. AGC), CZ/B: 0.001 Lux (F1.6, wł. AGC), 0 Lux IR ON, zasięg IR do 100m, dzień/noc ICR, zoom optyczny 15x (ogniskowa 5mm-75mm), zoom cyfrowy 16x, kąt widzenia od 53.8st. do 4st., apertura: F1.6-F3.5. Funkcje: WDR: 120dB, 3D DNR, HLC/BLC, EIS, 8 programowalne maski prywatności. Przełączanie formatu 4w1 (TVI/AHD/CVI/CVBS). Prędkość obrotu w poziomie: 0.1st. - 80st./s, prędkość obrotu w pionie: 0.1st.- 80st./s, zakres obrotu: 360st. bez punktu krańcowego, zakres wychylenia pionowego: od -15st. do 90st. (z funkcją AutoFlip), Ilość presetów: 256, ilość patroli: 10 (do 32 presetów na patrol), trasa (Pattern). Temperatura pracy: -30st.C~65st.C. Klasa szczelności IP66. Wymiary: śr.164.5x295mm, waga około 2kg. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Hikvision DS-2AE4215TI-D(C) IR Turbo 4-Inch Speed
Dome is able to capture high quality images in poor light
environment. The black anti-reflective glass increases the
luminousness which helps IR distance reach up to 100 m.
The embedded CMOS chip makes WDR, and real-time
1920 x 1080 resolution possible. With the help of the 15x
optical zoom, and IR cut filter, the camera offers more
details over an expansive area.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 15x optical zoom, 16x digital zoom
* 120 dB Ture WDR (Wide Dynamic Range)
* Up to 100 m IR distance
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video outputs




DS-2AE4215TI-D(C)
2 MP IR Turbo 4-Inch Speed Dome





Specification
Camera
Model DS-2AE4215TI-D(C)
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB










Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 5 mm to 75 mm, 15x Optical
Aperture Range F 1.6 to F 3.5
Horizontal Field of View 53.8° to 4.0° (wide-tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 2.4 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
Tilt Range -15° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes







Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF
Preset Freezing Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Infrared
IR Distance Up to 100 m
IR Intensity Automatically adjusted depending on the zoom ratio
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
12 VDC
Max.20 W (IR:7 W)
Working Temperature -30° C to 65° C (-22° F to 149° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient
protection
Mounting Various mounting modes optional
Dimension Ø 164.5 mm x 295 mm (Ø 6.47" x 11.61")
Weight (approx.) 2Kg (4.41Ib.)






Order Model
DS-2AE4215TI-D(C)
Dimensions
Ø
1
6
4
.
5

m
m

(
6
.
4
7
"
)
2
9
5
m
m

(
1
1
.
6
1
"

)


Accessories








0304401080327




DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount

DS-1005KI
USB Joy-stick
DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount

DS-1602ZJ
Wall Mount
