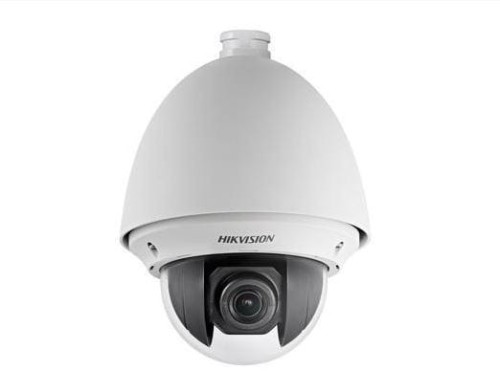

DS-2AE4215T-D(E)

Kamera analogowa szybkoobrotowa PTZ, posiada przetwornik obrazu 1/2.8" progressive scan CMOS, generując obraz w rozdzielczości 1920 x 1080; Min. Oświetlenie : Kolor: 0.005 Lux @(F1.6, AGC ON) Cz/B: 0.001 Lux @(F1.6, AGC ON), cyfrowy zoom 16x, 8 programowalnych masek prywatności, BLC,HLC,EIS, obszar ostrości; Ogniskowa: 5 mm do 75 mm, 15x optyczny zoom; Kąt widzenia: HFOV 53.8st. do 4.0st. (wide to tele) VFOV: 31.9st. do 2.3st. (wide to tele) DFOV: 60.4st. do 4.6st.(wide to tele); Zakres apertury: F1.6 do F3.5; Wyjście wideo: przełączalne TVI/AHD/CVI/CVBS, (NTSC lub PAL, BNC);2/1 wejścia/wyjścia alarmowe; Interfejs RS-485; Protokół UTC; Zasilanie: 12 VDC; Temperatura pracy: -30st. C do 65st. C; IP66; Wymiary: śr. 179.4 x 239.5 mm; Waga w przybliżeniu 2kg...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Hikvision DS-2AE4215T-D(D) Turbo 4-Inch Speed Dome is
able to capture high quality images in poor light
environment. The embedded CMOS chip makes WDR,
and real-time 1920 x 1080 resolution possible. With the
help of the 15x optical zoom, and IR cut filter, the camera
offers more details over an expansive area.

* 1/2.8" HD progressive scan CMOS
* 1920 x 1080
* 15x optical zoom, 16x digital zoom
* 120 dB true WDR (Wide Dynamic Range)
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video output



DS-2AE4215T-D(D)
2 MP Turbo 4-Inch Speed Dome




Specification
Camera
Model DS-2AE4215T-D(D)
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB
Shutter Time
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Digital Zoom 16x
Privacy Mask 8 programmable privacy masks
BLC (Backlight Compensation) Yes
HLC (highlight Compensation) Yes
EIS (Electric Image Stabilization) Yes
Regional Focus Yes
Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 5 mm to 75 mm, 15x Optical
Aperture Range F 1.6 to F 3.5
Field of View
Horizontal field of view: 53.8° to 4.0° (wide to tele)
Vertical field of view: 31.9° to 2.3° (wide to tele)
Diagonal field of view: 60.4° to 4.6°(wide to tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 2.4 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s
Tilt Range -5° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes







Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF
Preset Freezing Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
12 VDC
Max. 16 W
Working Temperature -30° C to 65° C (-22° F to 149° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient
protection
Mounting Various mounting modes optional
Dimension Ø 179.4 x 239.5 mm (Ø 7.1" x 9.4")")
Weight (approx.) 2 kg (4.41 Ib.)







Order Model
DS-2AE4215T-D(D)
Dimension
2
3
9
.
5

m
m

(
9
.
4
"

)
Ø 180 mm (7.1")
Ø 120 mm (4.7")


Accessory








0305101090610




DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount

DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount

DS-1602ZJ
Wall Mount
