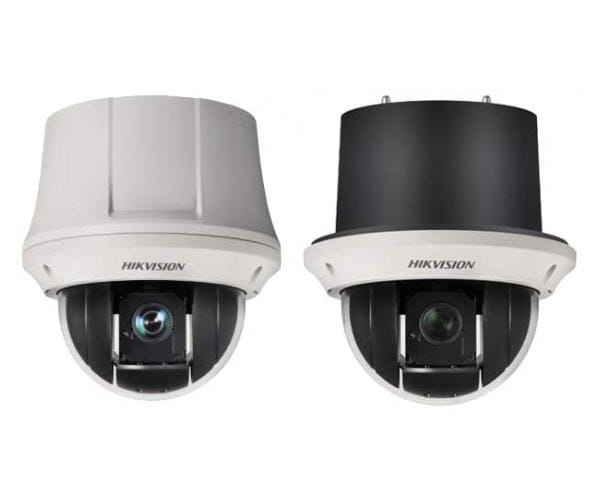

DS-2AE4023-A3

Kamera 700TVL, PAL:976(H)×582(V), 1/3" CCD, Color: 0.02Lux/ (F1.6 AGC ON) B/W: 0.002Lux/(F1.6 AGC ON), IR Cut Filter, 4-92mm, Optical zoom: 23X, Digital Zoom:16x, Pan Preset Speed: 160°/s, Pan Manual Speed: 0.1° -160°/s, Tilt Preset Speed: 120°/s, Tilt Manual Speed: 0.1°-120°/s, 24 VAC, -10℃-50℃(14℉-122℉), IP66, 3D DNR, Digital WDR...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

©2006 – 2013 by HIKVISION. All rights reserved.
1

DS-2AE4023 series
E series Mini PTZ Dome Analog Camera

Key features
System function:
 High performance CCD
 ±0.1° Preset Accuracy
 Self-adaptive to HIKVISION, Pelco-P/D protocol
 3D intelligent positioning function
 Power-off memory function: restore PTZ & Lens status after reboot
 Built-in temperature sensor, with display of internal temperature
 RS-485 communication diagnosis capability
 Manchester code communication diagnosis capability
 Scheduled PTZ movement
 Password protection
 Camera title programmable
 Zone Scanning
 IP66 standard (outdoor dome)
 3D DNR
Camera function:
 Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
 Privacy masks programmable
 3D DNR, digital zoom
 Digital WDR
PTZ function:
 360° endless pan range and -5°-90° tilt range
 160°/s Pan Preset Speed and 120°/s Tilt Preset Speed
 0.1°-160°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed
 256 presets programmable; preset image freezing capability
 8 patrols, up to 32 presets per patrol
 4 patterns, with the total recording time not less than 10 minutes
 Proportional zoom function




©2006 – 2013 by HIKVISION. All rights reserved.
2

 Park action: auto call up of PTZ movement, after a defined time of inactivity
Application Scenarios
It can be widely applied to places requiring wide-area monitoring display, such as streets, stations, large venues, outside of
residential areas, etc.
Specifications
Model
Parameter
DS-2AE4023 series
E series Mini PTZ Dome Analog Camera
Camera
Image Sensor 1/3" CCD
Effective Pixel
PAL:976(H)x582(V)
NTSC:976(H)x494(V)
Horizontal
Resolution
700TVL
Signal System PAL/ NTSC
Min. Illumination
Color: 0.02Lux/ (F1.6 AGC ON)
B/W: 0.002Lux/(F1.6 AGC ON)
White Balance Auto/ATW/Indoor/Outdoor/One push
AGC Auto / Manual
S / N Ratio ≥ 50dB
3D DNR Support
Backlight
Compensation
Support
Digital WDR Support
Shutter Time
PAL: 1/1-1/10,000s
NTSC: 1/1-1/10,000s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on
the same video screen
Focus Model Auto / Semiautomatic / Manual
Lens
Focal Length 4-92mm, 23X
Zoom Speed Approx.3.0s(Optical Wide-Tele)
Angle of View 49-2.2 degree(Wide-Tele)
Min. Working
Distance
10-1000mm (Wide-Tele)
Aperture Range F1.6-F3.7
Pan and
Tilt
Pan Range 360° endless
Pan Speed
Pan Manual Speed: 0.1° -160°/s,
Pan Preset Speed: 160°/s
Tilt Range -5°-90°(Auto Mirror)



©2006 – 2013 by HIKVISION. All rights reserved.
3

Tilt Speed
Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed: 120°/s
Proportional
Zoom
Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power-off
Memory
Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position
Display
On / Off
Freeze Frame Support
Password
Protection
Support
Zone
Scanning/Display
Scanning within programmed zone, display zone title
Camera Title Programmable title display
Compass Support , the north can be set
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
RS-485
communication
diagnosis
Including failure information, e.g., wrong address, baud rate errors, et., displayed on the
video screen in text
Manchester code
communication
diagnosis
Including failure information, e.g., wrong address, baud rate errors s displayed on the video
screen in special characters
Input/
Output
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

TT
TO
General
Menu Language English, Chinese
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC
Outdoor: Max.18 W(heater: 6W)
Indoor: Max.12W
Working
Temperature /
Humidity
-30 ℃℃℉℉℃℃℉℉





Φ.5mm (Φ”x”)(Outdoor)



©2006 – 2013 by HIKVISION. All rights reserved.
4

Φ1mm(Φ”x”) (Indoor)
Φmm(Φ”x”) (In
P
OT
OTI


TT

TT
Dimensions

Order models
 DS-2AE4023-A, PAL, 24VAC, outdoor
 DS-2AE4023-A3, PAL, 24VAC, indoor
 DS-2AE4023N-A, NTSC, 24VAC, outdoor
 DS-2AE4023N-A3, NTSC, 24VAC, indoor
Accessories

Bore size
Unit：mm
OutdoorIndoorIn-ceiling





©2006 – 2013 by HIKVISION. All rights reserved.
5

DS-1602ZJ Long-arm Wall Mount Bracket
