DS-1H33

Konwerter aktywny sygnału HD-TVI na HDMI. Urządzenie posiada wyjście przelotowe HD-TVI. Wymiary: 50x30x25 mm. Zasilanie 12VDC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS -1H 33 HDTVI Converter



Overview
DS -1H33 HDTVI converter can convert the input HDTVI
signal to the output HDMI signal, supports all the video
resolution of HD TVI, and supports 1-ch HD TVI loop out.
Available Model s
DS -1H33 HD TVI Converter
Features
 1-ch HDTVI input, 1-ch HDTVI loop out and 1-ch
HDMI output.
 Support s all the standards of HDTVI, including V2.0
video standard signal.
 Convert s HDTVI video signal effectively.
 Lossless and uncompressed transmission.
 Satisf ies the requirements of working in high or low
temperature.
 Up to 100000 hours of mean time between failures.


Physical Interfaces

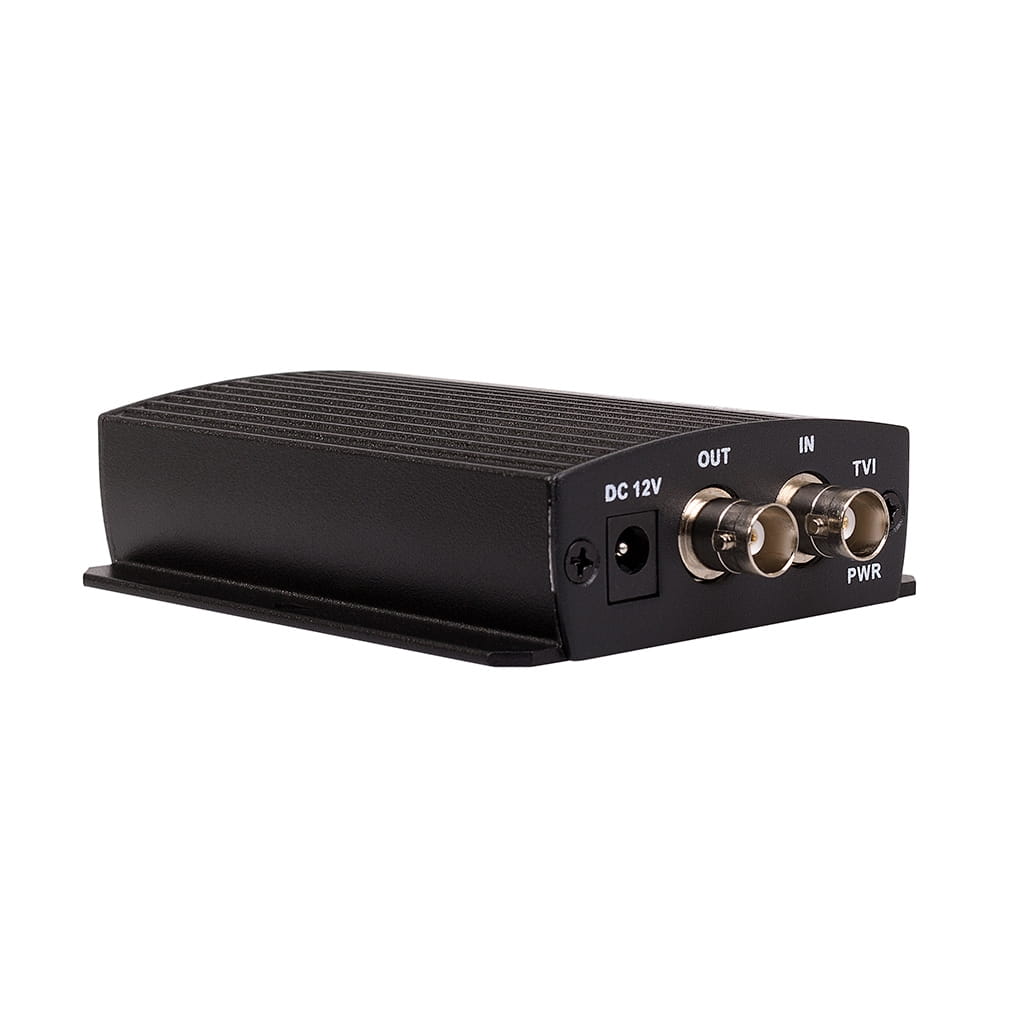

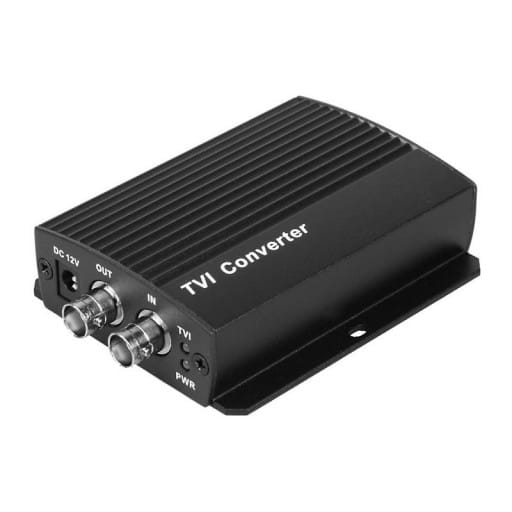

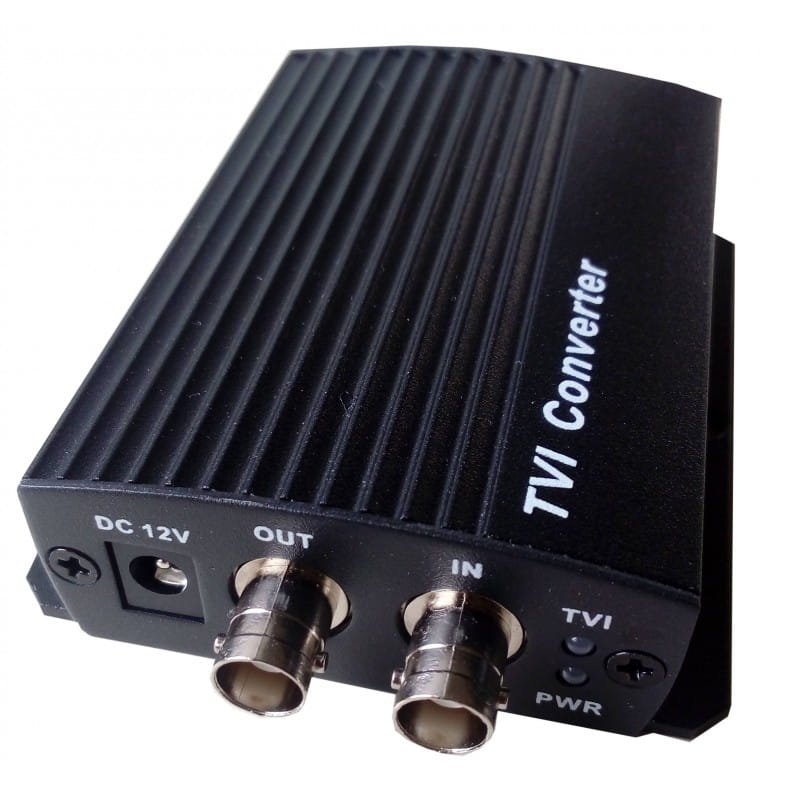

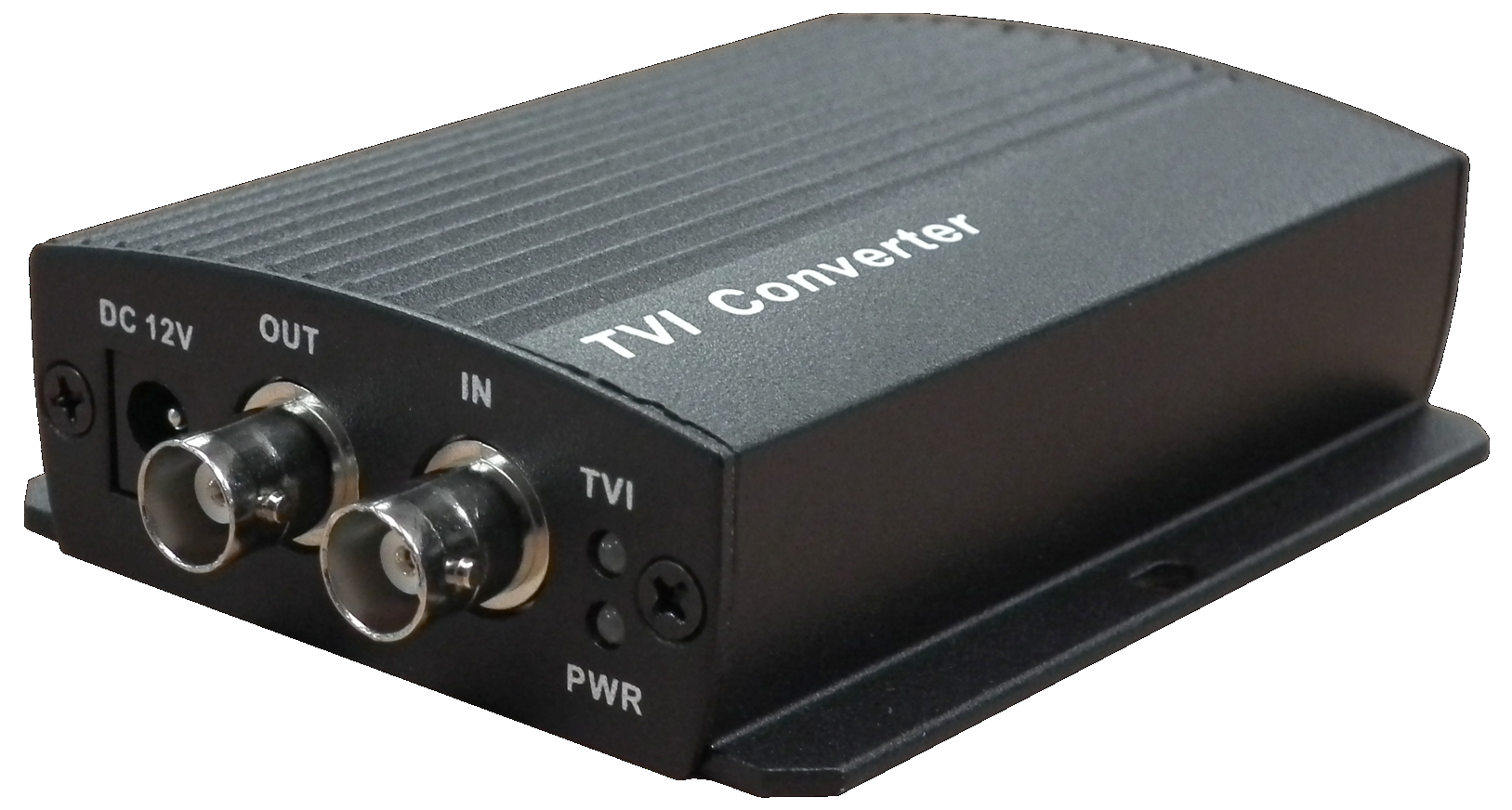

Front panel:


Index Name
1 12VDC Power Supply
2 BNC Interface
3 BNC Interface
4 Video Source LED
5 Power LED

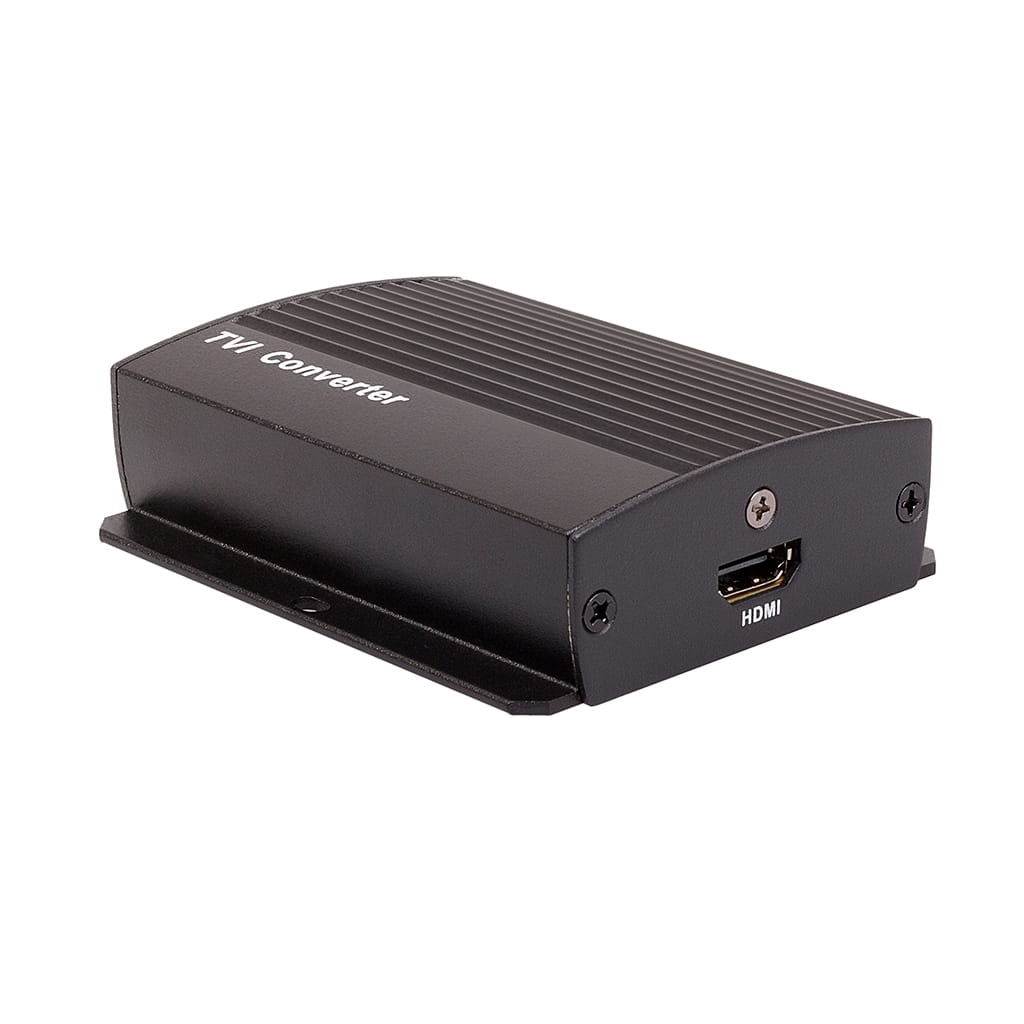

Rear panel:


Index Name
1 HDMI Interface











Turbo TVI in, HDMI output

Lo-Call 1890 866 900

www.cctvireland.ie

shop@cctvireland.ie




Specifications
Model DS -1H33 HDTVI Converter
Physical Interface BNC, HDMI
Input Level > 500 mVp -p
Output Format HDMI 1.4b, A standard interface
Input Auto Cable Equalization 1080 p, 720 p, supporting 100M75 -5 cable input with distance of 100M
Input Format 1080 p 25/30, 720 p 25/30/50/60, compatible with V2.0 HDTVI
Input Impedance 75 Ω
Output Resolution 720 p 50/60, 1080 p 50/60
Output Format Distance HDMI 1.4b, D -type base, 10 M distance
LED Power LED, video source LED
Power Supply 12 VDC, 1A
Power Consumption ≤ 8 W
Working Humidity 10 % to 90 %
Working Temperature -30 º C to + 75º C
Dimensions (WxDxH) 50 x 30 x 25 mm (1.97 x 1.18 x 0.98 inch)
Mounting Type Independent
