DS-1704ZJ-Y
Opis

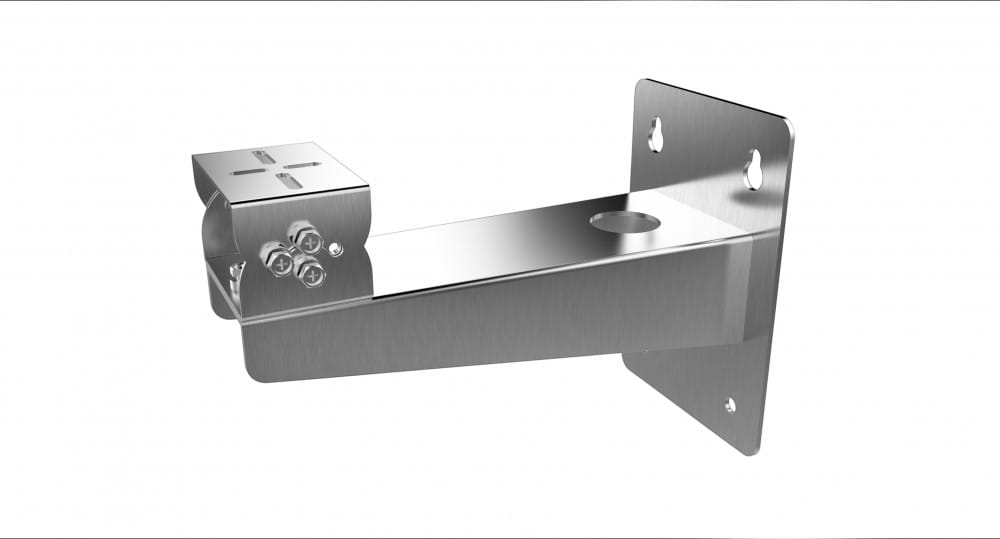

Uchwyt montażowy ścienny, materiał: stal nierdzewna 316L, wymiary: 412.5x140x228mm...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1704Z-Y
Wall Mount
Feature
⚫ Stainless steel
⚫ Adjustable tilt angle from -45° to 45°, and pan angle from -45° to 45°
⚫ Cable hole design facilitates the cable routing
Dimension
2
2
8
m
m
(
8
.
9
8
"
)
2
0
0
m
m
(
7
.
8
7
"
)
1
5
0
m
m
(
5
.
9
1
"
)
1
0
m
m
(
0
.
3
9
"
)
1
4
5
m
m
(
5
.
7
1
"
)
140 mm (5.51" )
90 mm (3.54" )
1
0
0
m
m
(
3
.
9
4
"
)
Ø 40 mm (1.57" )
2-Ø 10 mm
(0.39" )
2-R 5 mm
(0.20" )
2-R 8 mm
(0.31" )
412.5 mm (16.24" )
53 mm (2.09" )
Ø 40 mm (1.57" )
8
0
m
m
(
3
.
1
5
"
)
3
0
m
m
(
1
.
1
8
"
)
96 mm (3.78" )
30 mm (1.18" )
6.5 mm
(0.26" )
3 mm (0.12" )
Available Model
DS-1704ZJ-Y
Parameter
Model
Parameters
DS-1704Z-Y
Wall Mount
Appearance Unpainted Stainless Steel
Material SUS316L
Dimension 412.5 mm x 140 mm x 228 mm (16.24" x 5.51" x 8.98")
Weight 2160 g (4.76 lb.)
Note
⚫ The mount should be installed on the flat surface.
⚫ Waterproof rubber is necessary for the outdoor application.
⚫ The wall should be capable of supporting at least 8 times as much as the total weight of the camera, and the mount.
⚫ The mount’s maximum load capacity is 10 kg (22 lb.).
