DS-1697ZJ-Y
Opis
Uchwyt Stainless steel 316L 136x212x326mm...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS -1697ZJ -Y

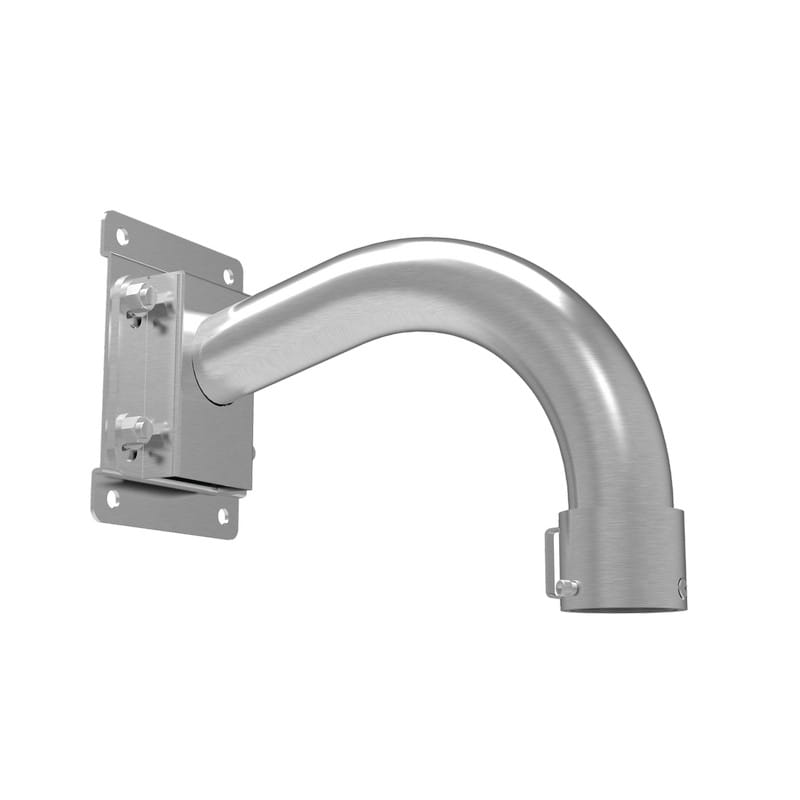

Wall Mount
Feature
Anti -corrosion design for adverse environments
The safety rope enables convenient installation
Dimension 328
.4
mm
(12
.93
'')
126 mm (4.96'')
A
120
mm
(4
.72
'')
11 mm
(0.43'')
Φ 6.5 mm
(0.26'')
Φ 13.5 mm
(0.53'')
79
mm
(3
.11
'')
Φ 8 mm
(0.31'')
Φ 13.5 mm
(0.53'')
A
100 mm (3.94'')
328.4 mm (12.93'')
3-M6
Φ 47.6 mm
(1.87'')53 mm
(2.09'')
Φ 63 mm (2.48'')
10
mm
(0
.39
'')
222
mm
(8
.74
'')
Available Model
DS -1697ZJ-Y
Parameter
Model
Parameters
DS -1697ZJ-Y
Wall Mount
Appearance Silver
Material SUS316L
Dimension 126 mm x 222 mm x 328 mm (4.96 " x 8.74 " x 12.93 ")
Weight Approx. 2307 g (5.09 lb.)
No te
The mount should be installed on a flat surface.
Waterproof rubber is necessary for the outdoor application.
The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
The maximum load capacity of the mount is 8 kg (17.64 lb.).
