DS-1691ZJ-X
Opis
Uchwyt Stainless steel 316L 303x250x200mm...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

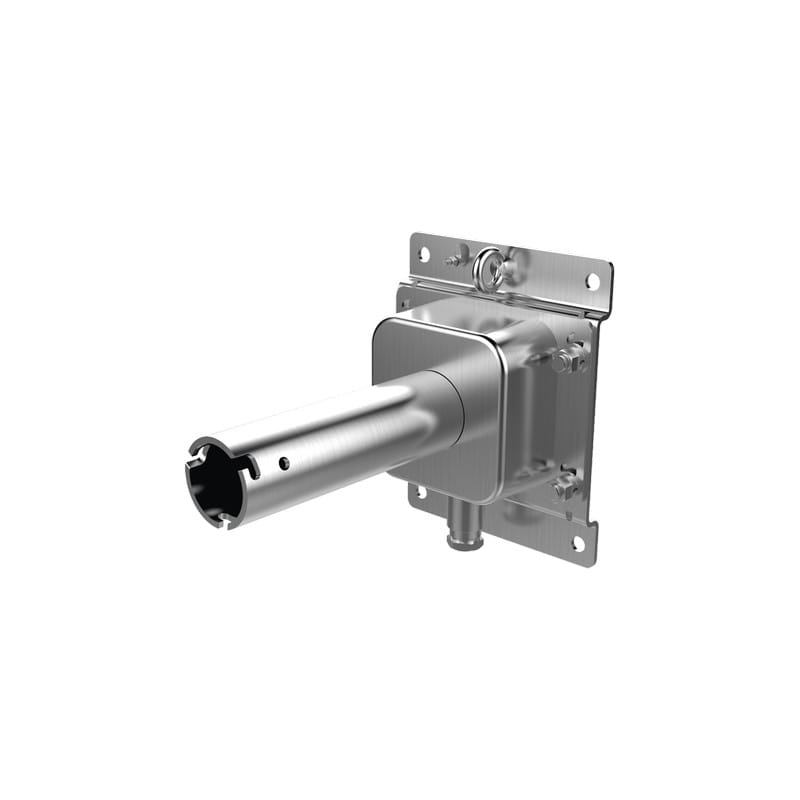

DS -1691ZJ- X
Pendant Mount
Feature
SUS304 stainless steel
Applicable to explosion -proof speed dome (PTZ camera)
Dimension 250 mm (9.84" )
214 mm (8.43" )
214 mm (8.43" )
200
mm
(8
.87
" )
168
mm
(6
.61
" )
303
mm
(11
.93
" )
Ø 54 mm (2.13" )4-Ø 13 mm
(0.51" )
3-Ø 8.5 mm
(0.33" )
3-Ø 9 mm
(0.35" )
Available Model
DS -1691 ZJ-X
Parameter
Model
Parameters
DS -1691 ZJ-X
Pendant Mount
Appearance Natural Stainless Steel Color
Material SUS304
Dimension 250 mm x 200 mm x 303 mm (9.84" x 8.87 " x 11.93")
Weight 6 kg (13 .23 lb.)
No te
The mount should be installed on the flat ceiling.
The waterproof rubber is necessary for the outdoor application.
The wall must be capable of supporting at least 8 times as much as the total weight of the camera, and the mount.
The mount’s maximum load capacity is 30 kg (66 lb.).
