DS-1690ZJ-X
Opis
Uchwyt Stainless steel SUS 304...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

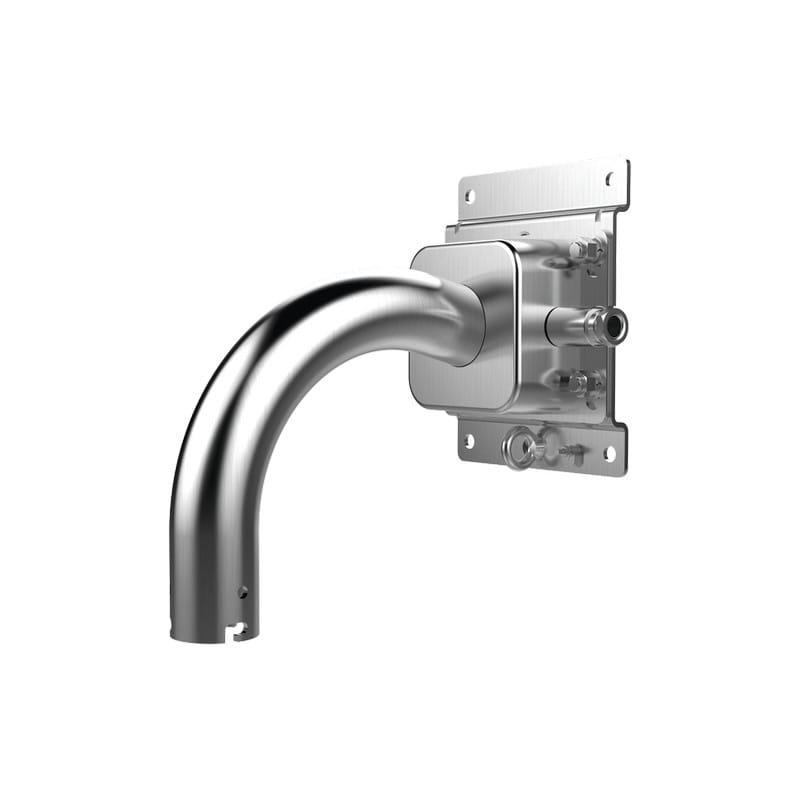

DS-1690ZJ-X
Wall Mount
Feature
SUS304 stainless steel
Applicable to explosion-proof speed dome (PTZ camera)
Dimension
345.5 mm (13.60" )
Ø 54 mm (2.13" )
2
5
m
m
(
0
.
9
8"
)
8.5 mm (0.33" )
3- Ø 8.5 mm (0.33" )
3- Ø 9 mm (0.35" )
227.5 mm (8.96" )
200 mm (7.87" )
168 mm (6.61" )
3
5
0
m
m
(
1
3.
7
8"
)
2
5
0
m
m
(
1
3.
7
8"
)
2
1
4
m
m
(
8
.
4
3"
)
4- Ø 13 mm
(0.51" )
Available Model
DS-1690ZJ-X
Parameter
Model
Parameters
DS-1690ZJ-X
Wall Mount
Appearance Natural Stainless Steel Color
Material SUS304
Dimension 350 mm x 227.5 mm x 345.5 mm (13.78" x 8.96" x 13.60")
Weight 7 kg (15.43 lb.)
Note
The mount should be installed on the flat wall.
The waterproof rubber is necessary for the outdoor application.
The wall must be capable of supporting at least 8 times as much as the total weight of the camera, and the mount.
The mount’s maximum load capacity is 30 kg (66 lb.).
