DS-1622ZJ
Opis
Uchwyt słupowy...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1622ZJ

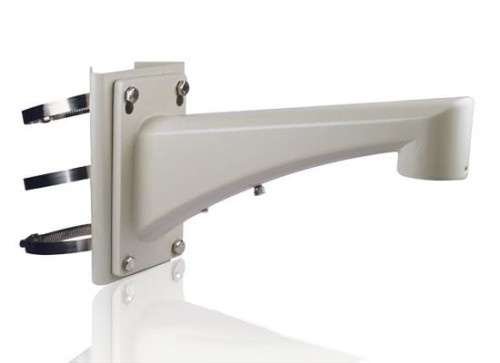

Pole Mount Bracket
Features:
Aluminum alloy material with surface spray treatment
Size of threaded hole is G1½ as British system
Nose-up long arm design for better waterproof
Design of safety rope for more convenient installation
Dimension:
Order Model:
DS-1622ZJ
Parameter:
Model
Parameter
DS-1622ZJ
Vertical Pole Mount Bracket
Appearance Hikvision White
Range of
Application
For pole mount
Size of clamp: Φ67-127mm
Material Aluminum Alloy
Dimension 117x194x310mm
Weight 1600g
Notice:
The bracket should be installed on plat wall
The bracket is suitable for vertical pole mount of 67-127
mm diameter
Load capacity of pole should be more than 3 times the
weight of camera and bracket
Load capacity of bracket is 30KG
Installation Step:
① Rotate the rotary knob and install clamp to pole
A: Adjust knob of tightness
② Install the wall mount accessory, screw up the adaptor
ring and thread the cable
B: Adaptor ring
③ Tie the safety rope to hook and fix the adaptor ring with
tightening screw, then thread the cable
C: Safety rope D: Tightening screw
④ Install the speed dome and rotate the set screw;
installation complete
Note: The actual bracket may vary from the picture above.
A
A
①
②
B
C
D
Unit: mm
