DS-1618ZJ-6D
Opis
Uchwyt...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1618ZJ-6D

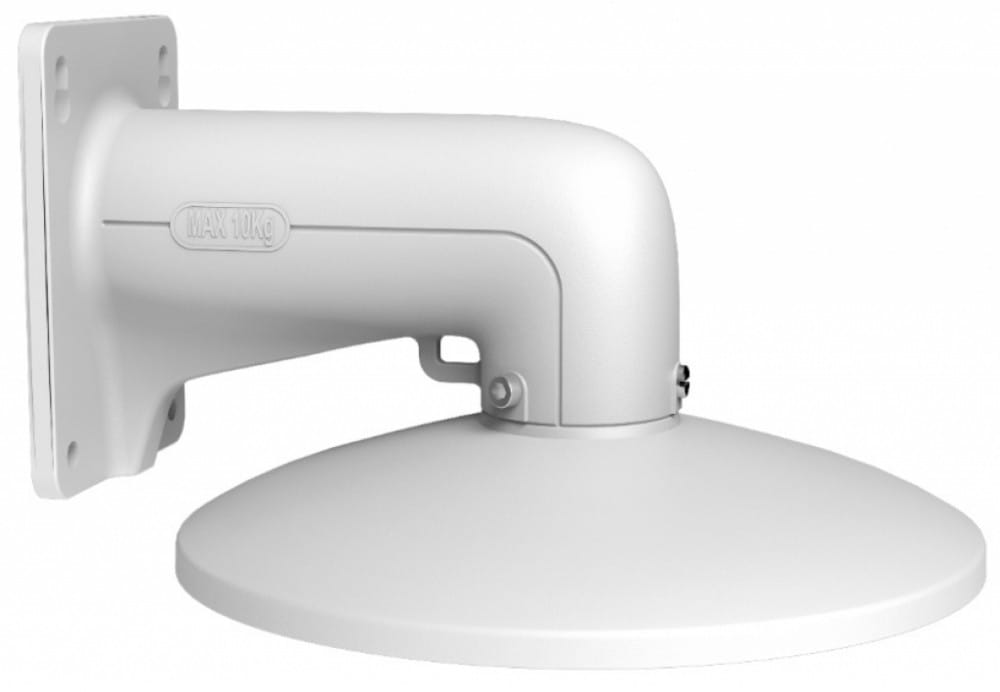

Wall Mount
Feature
Made of aluminum alloy and stainless steel
Quick installation
Applicable to speed domes
Dimension
200.92 mm (7.91")
58
mm
(2
.28
")
116
mm
(4
.57
")
158.5 mm (6.24")
Φ 250.06 mm (9.84")
20
.43
mm
(0
.80
")145
mm
(5
.71
")
110
mm
(4
.33
")
Available Model
DS-1618ZJ-6D
Parameter
Model
Parameters
DS-1618ZJ-6D
Wall Mount
Appearance Hikvision White
Application For indoor and outdoor installation
Material Aluminum alloy, stainless steel, and silicone rubber
Angle Adjustment Pan: 0° to 350°
Dimension 283.5 mm x 250 mm x 165.5 mm (11.16 " x 9.84" x 6.52")
Weight Approx. 1356 g (2.99 lb.)
Note
The wall mount should be installed on a flat surface.
Waterproof rubber is necessary for outdoor application.
The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the wall mount.
The maximum load capacity of the wall mount is 10 kg (22.05 lb.).
