DS-1603ZJ-P
Opis
Uchwyt Platinum Gray Aluminum Alloy 364.1 mm x 182.0 mm...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS - 1603ZJ- P

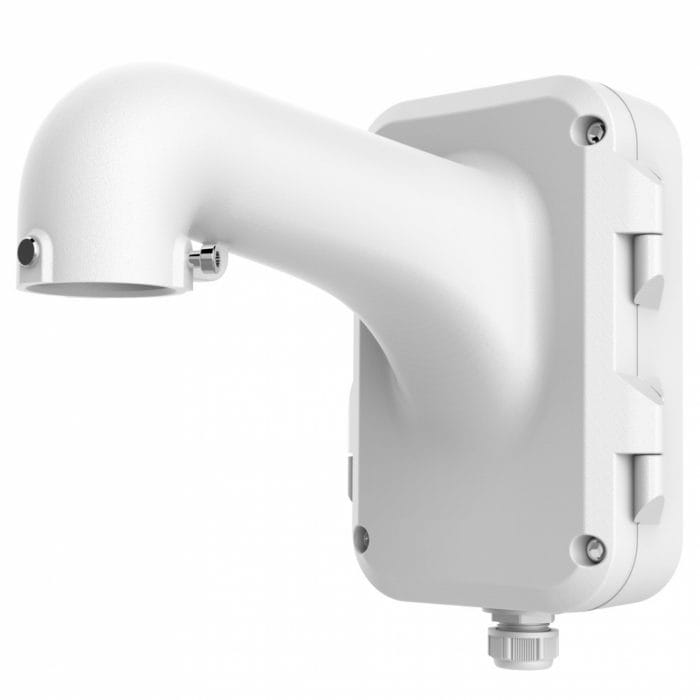

Wall Mount for Pano Vu
Feature
Aluminum alloy with surface spray treatment
The hook for safety rope facilitates camera ’ s installation
Waterproof design
Dimension
364.1 mm (14.3")
182 mm (7.2")
160 mm (6.3")
98 mm (3.9")
75 mm (3.0")
10 mm (0.39")
10 mm (0.39")
2-Φ 9 mm
(0.35")
2-Φ 9 mm
(0.35")
2-Φ 12
mm (0.47")
Available Model
DS- 1 603 ZJ - P
Parameter
Model
Parameters
DS- 1 603ZJ- P
Wall Mount for Pano Vu
Appearance Hikvision Gray
Material Aluminum Alloy
Dimension 364.1 mm x 182.0 mm (14.3" x 7.2")
Weight 1400 g (3.09 lb.)
No te
The mount should be installed on the flat surface .
The waterproof rubber is necessary for the outdoor application .
The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mount .
The mount ’ s maximum load capacity is 20 K g ( 44 lb.).
