DS-1603ZJ-Corner-P
Opis
Uchwyt narożny wykonany ze stopu aluminium i stali, malowany natryskowo, kolor platynowoszary, wymiary: 473.1 mm × 194 mm × 176.1 mm waga 2920g; maksymalna nośność uchwyty wynosi 20kg...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
‘

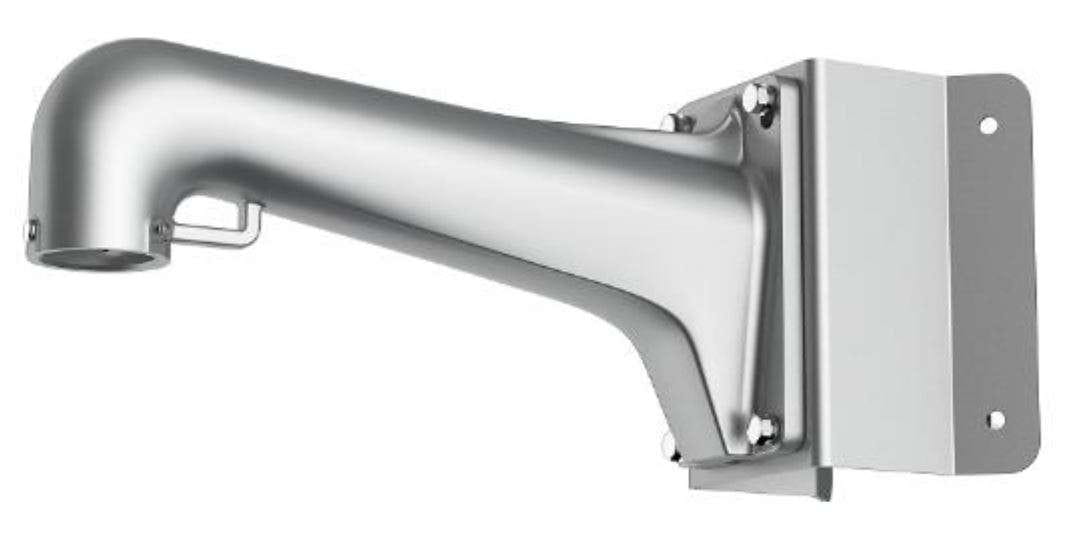

DS-1603ZJ-Corner-P
Corner Mount
Feature
Aluminum alloy and steel with surface spray treatment
The hook for safety rope facilitates camera’s installation
Applies to both indoor conditions, and outdoor conditions
Dimension
176.1 mm (6.93" )
194
mm
(7.64
" )
143
mm
(5.63
" )
4-Ø 9 mm (0.35" )
473.1 mm (18.63" )
364.1 mm (14.33" )
10
mm
(0.39
" )
112
mm
(4.4" )
90°
Available Model
DS-1603ZJ-Corner-P
Parameter
Model
Parameters
DS-1603ZJ-Corner-P
Corner Mount
Appearance Platinum Gray
Material Aluminum alloy, and Steel
Dimension 473.1 mm x 194 mm x 176.1 mm (18.63" x 7.64" x 6.93")
Weight 2920 g (6.44 lb.)
Note
The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
The mount’s maximum load capacity is 20 kg (44 lb.).
0100001080427
