DS-1476ZJ-SUS
Opis
Adapter narożny. Pasuje do kamer serii: DS-2CD26x5FWD, DS-2CD26x3G0. Pasuje do uchwytów: DS-1473ZJ-155, DS-1473ZJ-135....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS - 1476ZJ-SUS

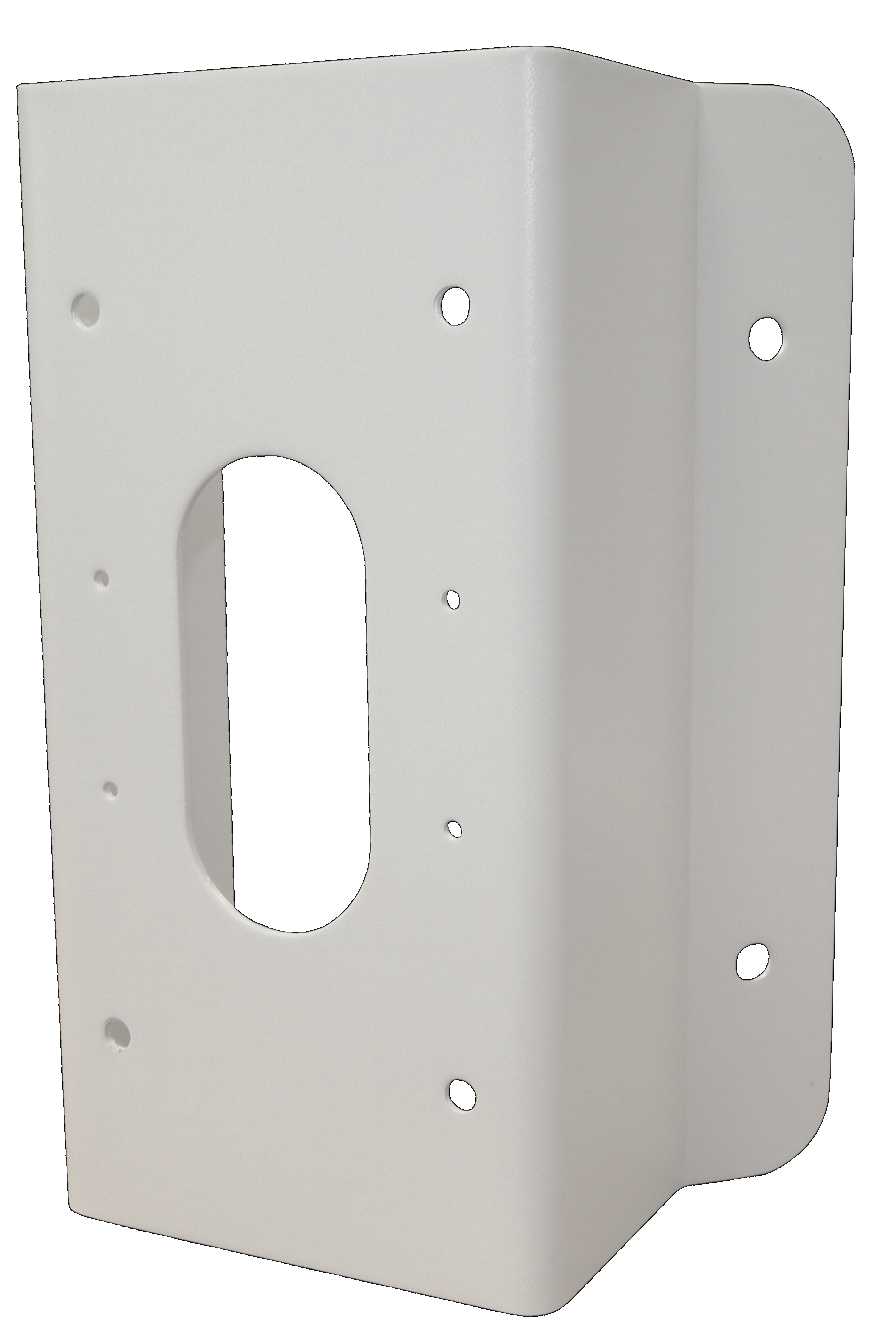

Corner Mount
Feature
Stainless steel material with surface spray treatment
Extend s camera’s field of view
Dimension
105
mm (4.13")
75 mm (2.95")
126 mm (4.96")
85.76 mm (3.38")
45 mm (1.78")
250 mm (9.84")158 mm (6.22")100 mm (3.94")
46 mm (1.81")
R 20 mm (0.79")
20.5 mm
(0.81")
143 mm (5.63")
4-Ø 9 mm
(Ø 0.35")
4-M 4 mm
(0.16")
4-M 8 mm
(0.31")
2-R 22.5 mm
(0.89")
3 mm (0.12")
Available Model
DS-1476Z J -SUS
Parameter
Model
Parameters
DS-1476ZJ -SUS
Corner Mount
Appearance Hikvision White
Material Stainless Steel
Dimension 250 mm x 126 mm x 105 mm (9.84 " x 4.96 " x 4.13 ")
Weight 2280 g (5.03 lb.)
No te
Waterproof rubber is necessary for the outdoor application .
The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mount .
The mount ’ s maximum load capacity is 10 Kg ( 22 lb.).
