DS-1473ZJ-155(Black)
Opis
Adapter naścienny. Pasuje do kamer: DS-2CD27x5FWD, DS-2CD27x3G0. Kolor czarny....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1473ZJ-155

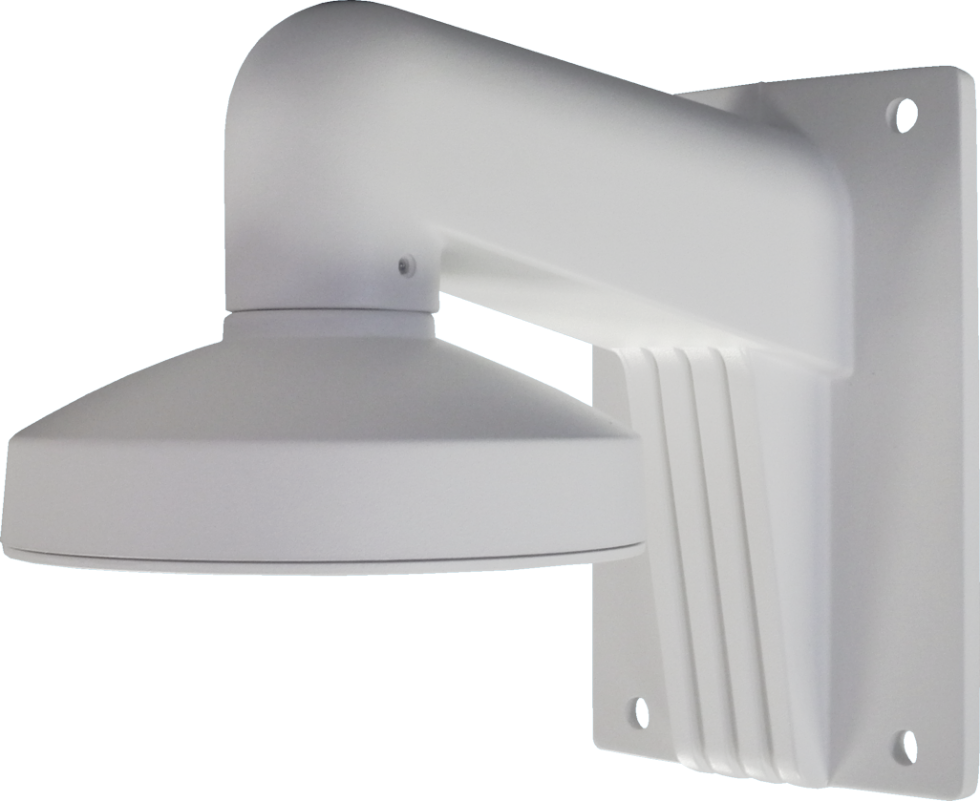

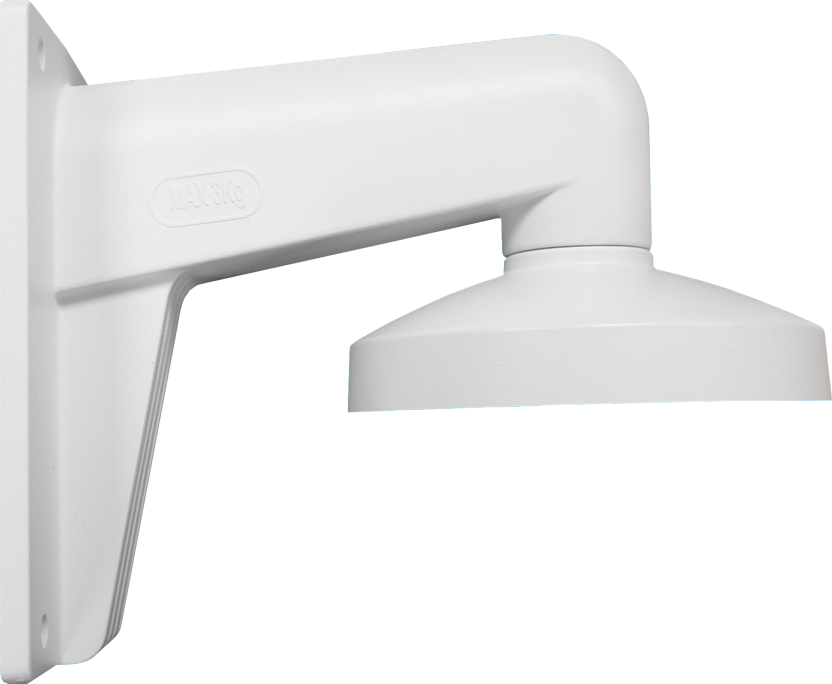

Wall Mount for Dome Camera
Feature
Aluminum alloy with surface spray treatment
The cap facilitates the installation
Waterproof design
Dimension
240 mm (9.45")
83.5 mm (3.29")
46 mm
(1.81")
120 mm (4.72")
85.7 mm
(3.37")
1
8
3
.
5
m
m
(
7
.
2
2"
)
1
5
8
m
m
(
6
.
2
2"
)
Ø
1
5
5
m
m
(
6
.
1
"
)
8
3.
5
m
m
(
3
.
2
9"
)
6-M4 Depth: 8 mm
(0.31")
4
-
Ø
8
.
5
m
m
(
0
.
3
3"
)
Available Model
DS-1473ZJ-155
Parameter
Model
Parameters
DS-1473ZJ-155
Wall Mount for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Ø 155 mm x 183.5 mm x 240 mm (6.1" x 7.22" x 9.45")
Weight 650 g (1.4 lb.)
Note
The mount should be installed on the flat surface.
The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mount.
The mount’s maximum load capacity is 3 Kg (6.6 lb.).
0100001070711
