DS-1473ZJ-155-Y
Opis
Uchwyt montażowy ścienny, materiał: stop aluminium, kolor: biały, wymiary: 155x183.5x240mm...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1473ZJ-155-Y

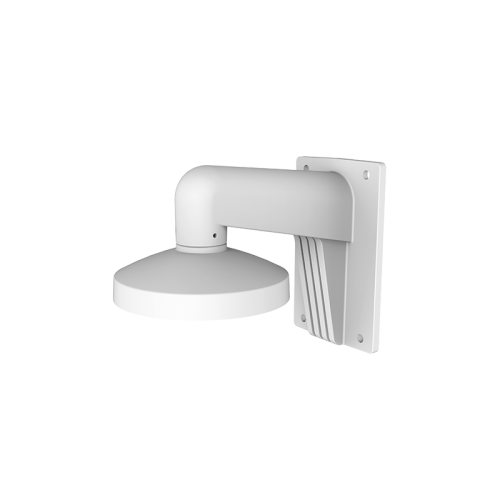

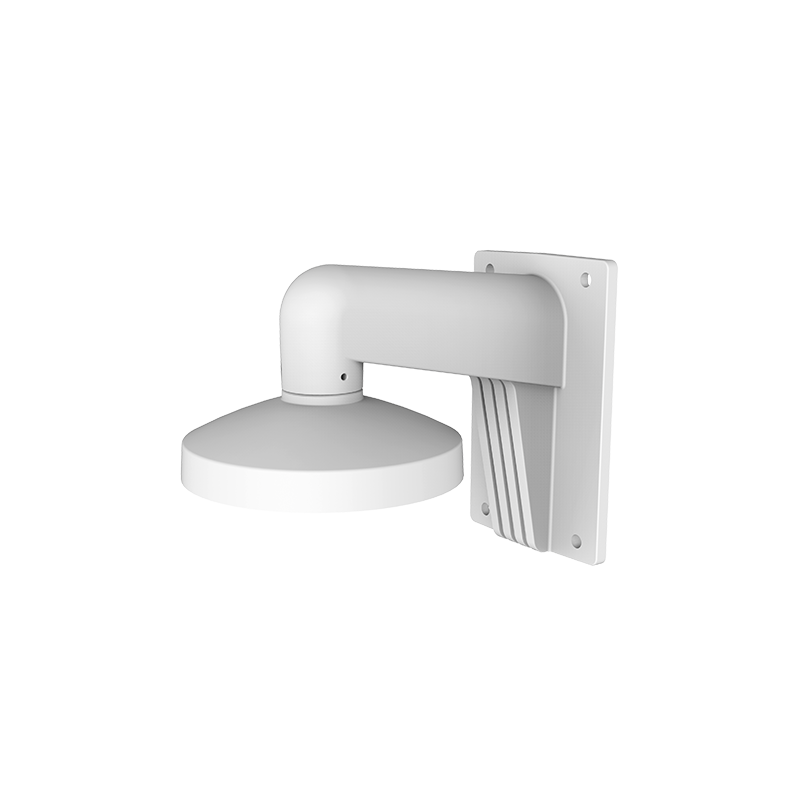

Wall Mount
Feature
Aluminum alloy with surface spray treatment
The cap facilitates the installation
Adopts waterproof design
Dimension
83.5 mm (3.29'')
46 mm
(1.81'')
83
.
5
mm
(
3
.
29
''
)
6-M4
depth 8 mm (0.31'')
4-Φ 8.5 mm
(0.33'')
158
mm
(
6
.
22
''
)
183
.
5
mm
(
7
.
22
''
)
85.7 mm (3.37'')
120 mm (4.72'')
240 mm (9.45'')
Available Model
DS-1473ZJ-155-Y
Parameter
Model
Parameters
DS-1473ZJ-155-Y
Wall Mount
Appearance Hikvision White
Material ADC12
Dimension Φ 155 mm x 183.5 mm x 240 mm (Φ 6.10" x 7.22" x 9.45")
Weight Approx. 650 g (1.4 lb.)
Note
The mount should be installed on a flat surface.
The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
The maximum load capacity of the mount is 3 kg (6.6 lb.).
