DS-1471ZJ-135
Opis
Adapter sufitowy o dłygości 565mm. Pasujący do modeli: DS-2CD2Hx5FWD, DS-2CD2Hx3G0....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1471ZJ-155

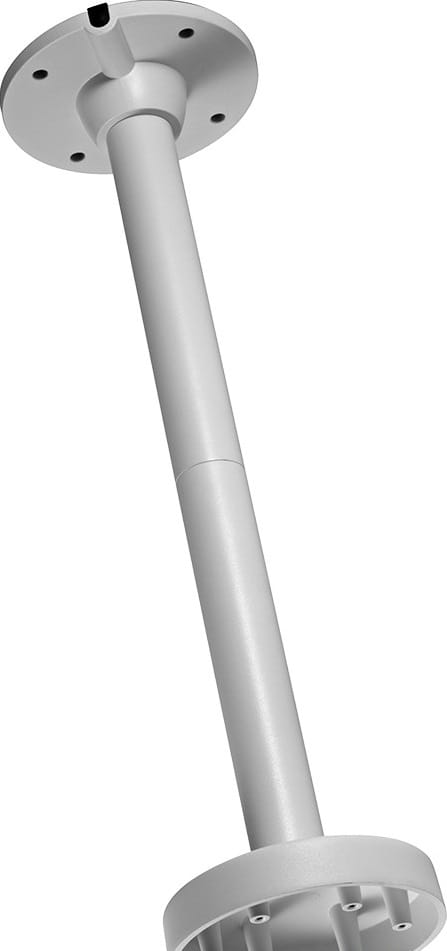

Pendant Mount for Dome Camera
Feature
Aluminum alloy with surface spray treatment
Waterproof design
Dimension
5
6
5
m
m
(
2
2.
2
4"
)
Ø 150 mm (5.91")
121.2 mm (4.77")
1
2
1
.
2
m
m
(
4
.
7
7"
)
4-Ø 8.5 mm (0.33")
Ø
1
5
5
m
m
(
6
.
1
"
)
83.5 mm (3.29")
46 mm
(1.81")
8
3.
5
m
m
(
3
.
2
9"
)
6-M4 Depth 8 mm
(0.31")
Available Model
DS-1471ZJ-155
Parameter
Model
Parameters
DS-1471ZJ-155
Pendant Mount for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Ø 155 mm x 565 mm (6.1" x 22.24")
Weight 650 g (1.4 lb.)
Note
The mount should be installed on the flat surface.
Waterproof rubber is necessary for the outdoor application.
The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the mount.
The mount’s maximum load capacity is 3 Kg (6.6 lb.).
