DS-1331HZ-C

Obudowa Hik white Aluminum alloy Suitable for Outdoor fan, DC12V 445.3x169.2x110mm 1900g...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

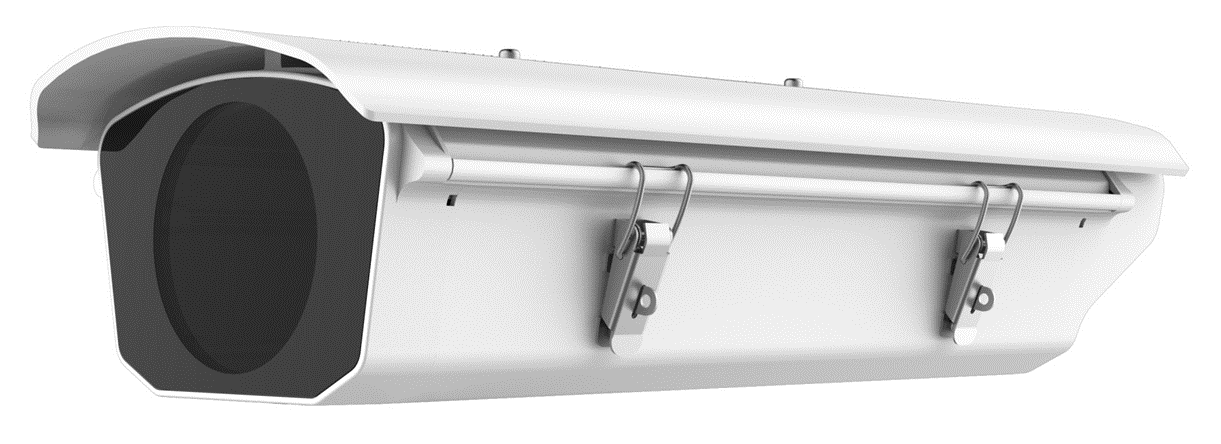

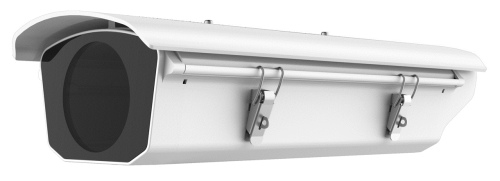

DS-1331HZ-C
Outdoor Housing



Features:
 Adopt side-cover design for convenient installation and
maintenance.
 Adopt stainless steel dual-hasp design, water-proof up to IP 67
 Partial glass silk print to protect imaging area
 Built-in automatic temperature control system to ensure
stable running.
Notice:
 Read the instructions carefully and observe all warnings
before installing this equipment.
 Turn off the power before wiping this equipment, do not
use liquid or spray cleaning agent.
 Do not install on unstable bracket.
 Protect the power line, especially the flexible line of the
plug and camera.
Order Model:
DS-1331HZ-C
Dimension:







Installation:

DS-1293ZJ Wall Mount


DS-1214ZJ Horizontal Pole Mount



DS-1269ZJ Pendent Mount

Parameter:
Model
Parameters
DS-1331HZ-C
Outdoor Housing
Produce features
Contain fan, suitable for high temperature
environment
Working temperature
-20℃ ~ +60℃, Humidity 95% or less
(non-condensing)
Automatic
temperature control
range
Without heating
Fan on: 45°±5℃
Fan off: 35°±5℃
Power DC12V
Power consumption Fan: 4W
Protection level IP67
Material
Main: aluminum alloy
Window: glass
Dimension(mm) 455.3x169.2x110
Matching power supply DC12V 2A Power pack
Weight 1900g

Wiring:









169.2
2-1/4UNC D7mm
445.3
413.9
110
140.6
120
94.2
51

DC12VBlack DC12V-
Red DC12V+
BLACK DC12V-
RED DC12+
Fan
