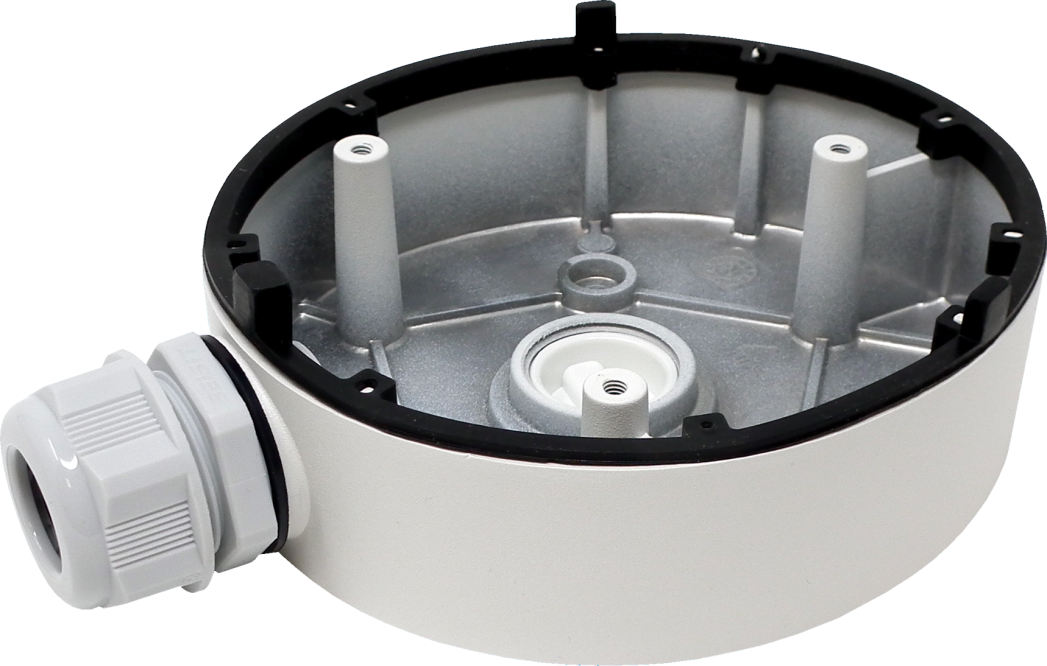

DS-1280ZJ-TR13
Opis
Puszka przyłączeniowa ze stopu aluminium. Wymiary: Φ 110 mm × 144.3 mm × 48 mm, Waga: ok. 187 g, Maksymalne obciążenie: 1 kg...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1280ZJ-TR13
Junction Box
Feature
Adopts aluminum alloy die-casting formation
Applied to both indoor and outdoor conditions
Dimension
Φ 110 mm
(4.33")Φ 70 mm
(2.76")
144
.3
mm
(5
.68
")
3-M4
48 mm (1.89")
43.5 mm (1.71")
Available Model
DS-1280ZJ-TR13
Parameter
Model
Parameters
DS-1280ZJ-TR13
Junction Box
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ110 mm x 144.3 mm x 48 mm (4.33" x 5.68" x 1.89")
Weight Approx. 247 g (0.54 lb.)
Notes
The junction box should be installed on a flat surface.
The waterproof rubber is necessary for the outdoor application.
The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the
junction box.
The maximum load capacity of the junction box is 0.5 kg (1.10 lb.).
