DS-1280ZJ-M(Black)
Opis
Puszka montażowa, materiał: stop aluminium, kolor: czarny, wymiary: 157x184.8x53.4mm, waga: 621g...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

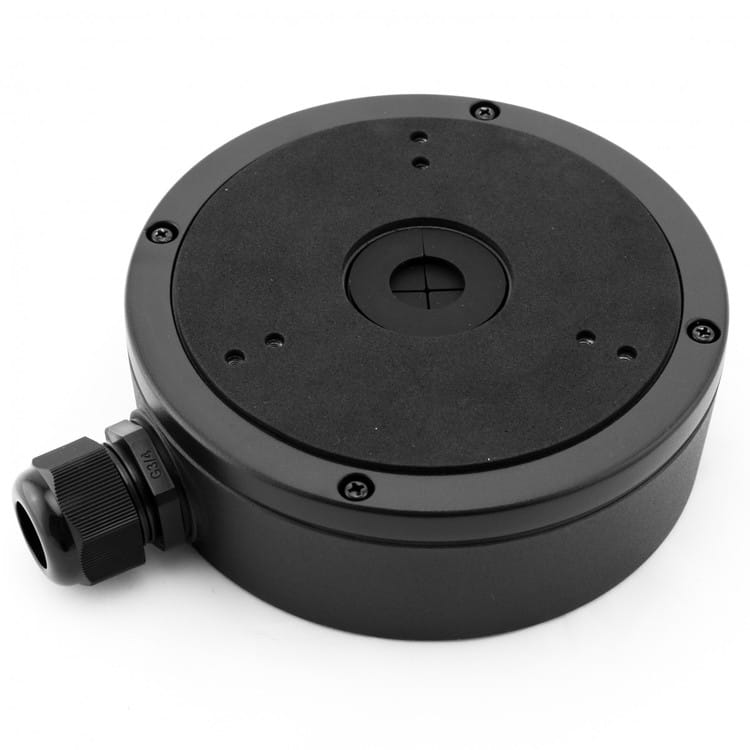

DS-1280ZJ-M(Black)
Junction Box
Features
Aluminum alloy with surface spray treatment
Side outlet, and bottom outlet
Interchangeable bottom waterproof cover, and side gland nut
Applies to both indoor conditions, and outdoor conditions
Dimension
53
.4
mm
(
2
.1
" )
184
.8
mm
(
7
.28
" )
Ø 90 mm (3.54" )
Ø 157 mm (6.18" )
Ø 112.4 mm (4.43" )
4-Ø 4.5 mm
(0.18" )
Available Model
DS-1280ZJ-M(Black)
Parameter
Model
Parameters
DS-1280ZJ-M(Black)
Junction Box
Appearance Black
Material Aluminum Alloy
Dimension Ø 157 mm x 184.8 mm x 53.4 mm (Ø 6.18" x 7.28" x 2.1")
Weight 621 g (1.37 lb.)
Notes
The junction box should be installed on the flat surface.
Waterproof rubber is necessary for outdoor application.
The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the
mount.
The maximum load capacity of the junction box is 4.5 kg (9.9 lb.).
