DS-1280ZJ-DM46
Opis
Puszka montażowa, materiał: stop aluminium, kolor: biała, wymiary: śr. 120x37.2 mm, waga: 250g...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1280ZJ-DM46

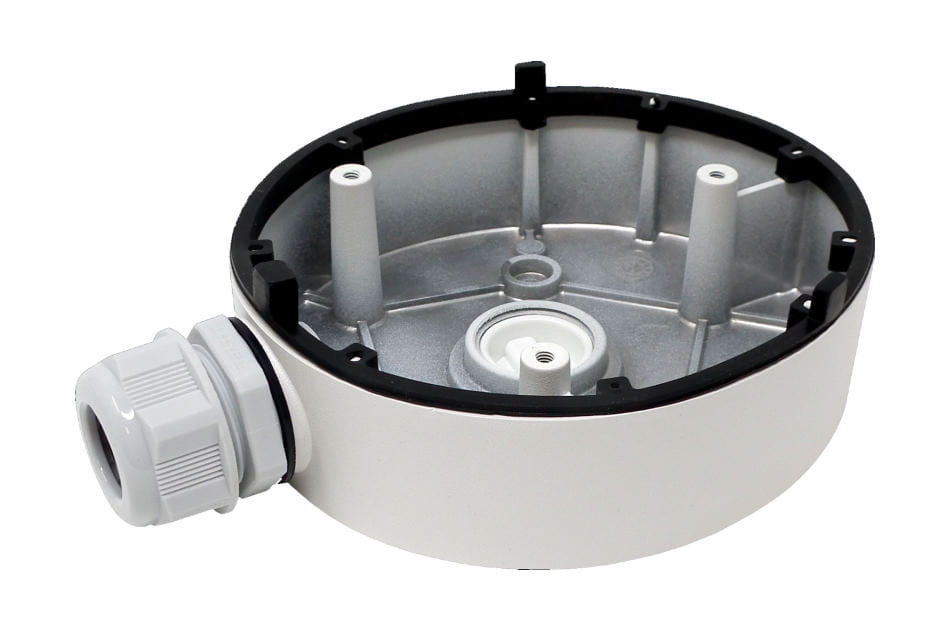

Junction Box
Feature
Aluminum alloy material with surface spray treatment
Supports bottom outlet, and side outlet
Applies to both indoor conditions, and outdoor conditions
Dimension
37.22 mm
(1.47")
150
.74
mm
(5
.93
"
)
120
°Ø 83.5 mm
(Ø 3.29")
Available Model
DS-1280ZJ-DM46
Parameter
Model
Parameters
DS-1280ZJ-DM46
Junction Box
Appearance Hikvision White
Material Aluminum Alloy
Dimension Ø 120 mm x 37.2 mm (Ø 4.72" x 1.46")
Weight 250 g (0.55 lb.)
Note
The junction box should be installed on the flat surface.
Waterproof rubber is necessary for the outdoor application.
The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the junction box.
The junction box’s maximum load capacity is 4.5 kg (9.92 lb.).
