DS-1276ZJ

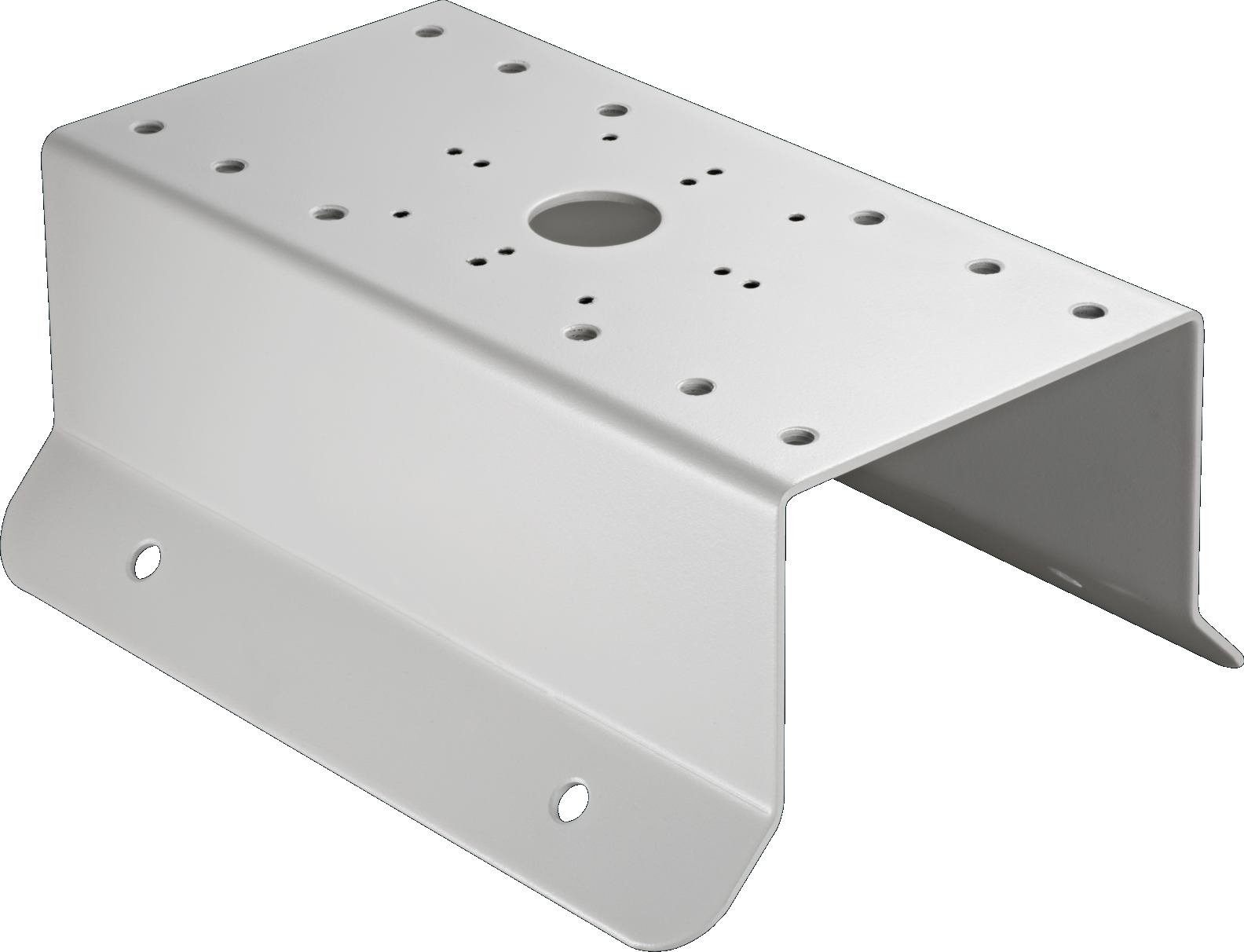

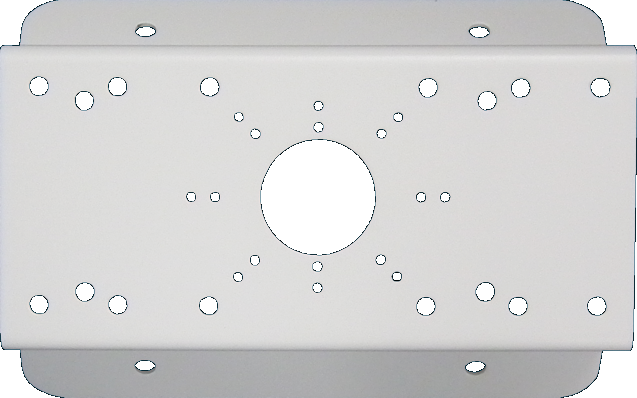

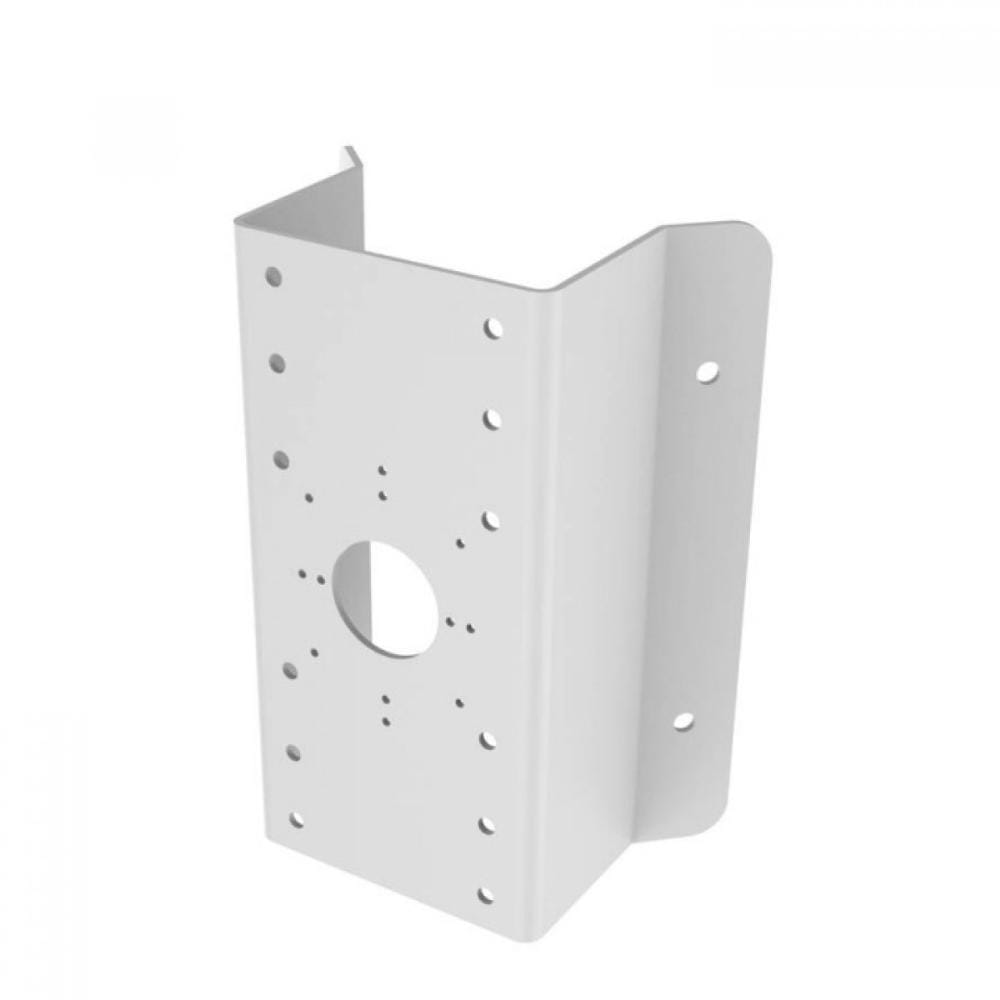

Adapter narożny Hikvision. Do zastosowania w zestawie z uchwytami naściennymi, kamerami typu bullet (podstawa mont. na 4 śruby) oraz do uchwytów dla kamer obrotowych. Maksymalna nośność do 10kg. Wymiary 126X105x205mm. Waga około 1950g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-1276ZJ-SUS

Kod produktu zamiennego: 302701678

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-1276ZJ
Corner Mount Bracket

Features:
 For corner mounting
 Aluminum alloy is used for mounting plate
 Add the field view angle of camera
Dimension:


Order Model:
DS-1276ZJ
Parameter:
Model
Parameter
DS-1276ZJ
Corner Mount Bracket
Appearance Hikvision White
Range of
Application
Adopted with some wall mount bracket
Material Aluminum Alloy
Dimension 126x105x250mm
Weight 1950g
Notice:
 The site of screw hole should be noticed when using with
wall mount bracket
 The bracket should be installed on flat wall
 Load capacity of pole should be more than 3 times the
weight of camera and bracket
 Load capacity of clamp is 10KG
Installation Step:
① Choose appropriate wall and install the
bracket with expansion bolt
② Screw up and fix the bracket firmly ③ Complete the bracket installation and
wiring for camera adoption
The bracket can be used with some wall mounting bracket, which is as followed:










Note: The actual bracket may vary from the picture above.
