DS-1275ZJ
Opis

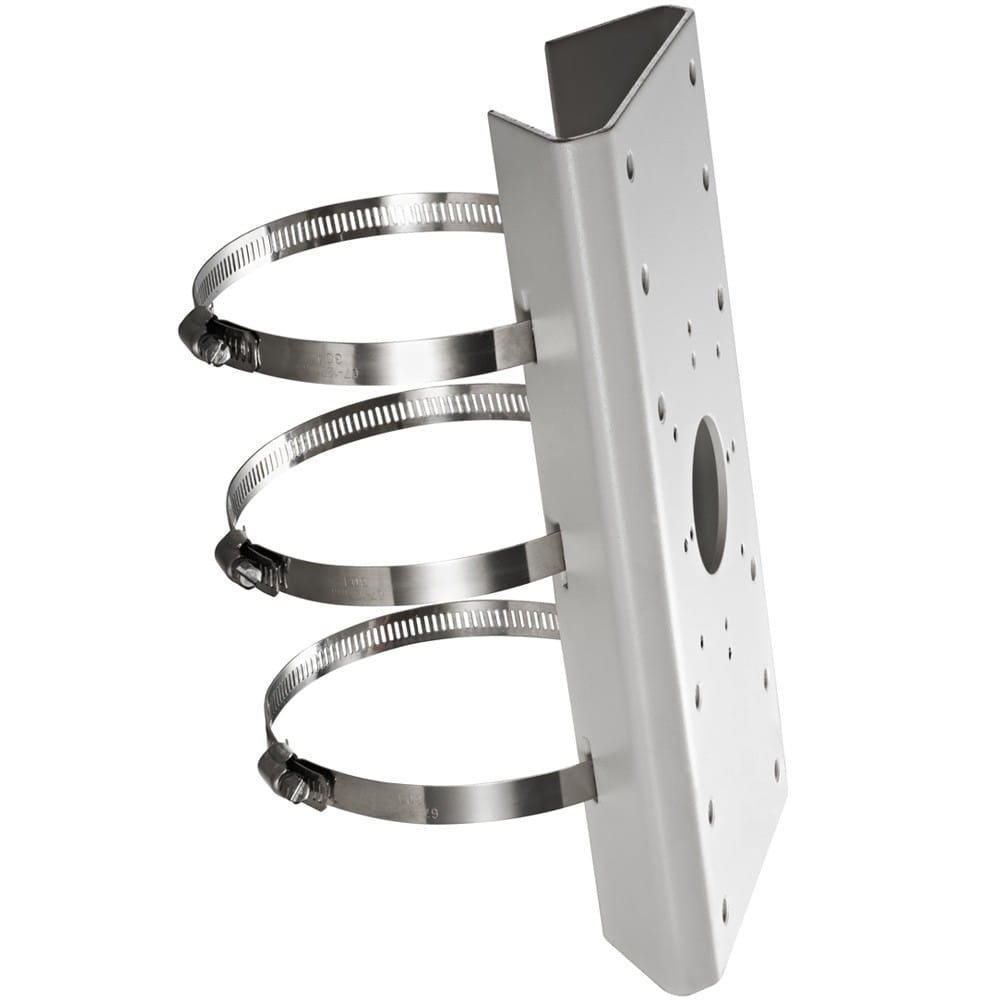

Adapter słupowy Hikvision. Do zastosowania w zestawie z uchwytami naściennymi, kamerami typu bullet (podstawa mont. na 4 śruby) oraz do uchwytów dla kamer obrotowych. Słup o średnicy od 67mm do 127mm. Maksymalna nośność uchwytu do 10kg. Wymiary 127x46x250mm. Waga około 1345g....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1275ZJ
FEATURES:
Ÿ For pole mounting
Ÿ The clasp is made of stainless steel
Ÿ Mounting board is made of aluminum die-casting alloy
SPEC
Parameters Vertical pole mount
Colour Hik White
Feature It can be used with some wall mounts
Material Aluminum alloy
Dimension 127 x 46 x 250mm
Weight 1205g
Installation View
Contra rotate the rotary knob
and open the clamp
Thread the clamp through the
hole of mounting board
Clasp the clamp around the
pole and rotate the rotary
knob clockwise for tightening
1.3.2.
This bracket can be used with small mount bracket to realize vertical pole mount, which is as followed:
250
unit: mm
A
A: Rotary knob
5
4
.5
7
1
8
5
.7
12
7
85.7
100
158
220
12-M4
Ø88.5
Ø
3
012-M8
4
6
4
5
°
Ø67-Ø127
