DS-1273ZJ-DM32
Opis
Uchwyt metalowy ścienny Hikvision do montażu kamer serii DS-2CD4D16FWD-IZS, DS-2CD4D26FWD-IZS. Maksymalna nośność uchwytu do 3kg. Wymiary: 232×183.5לr.141.8mm. Waga około: 650g...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1273ZJ-DM32

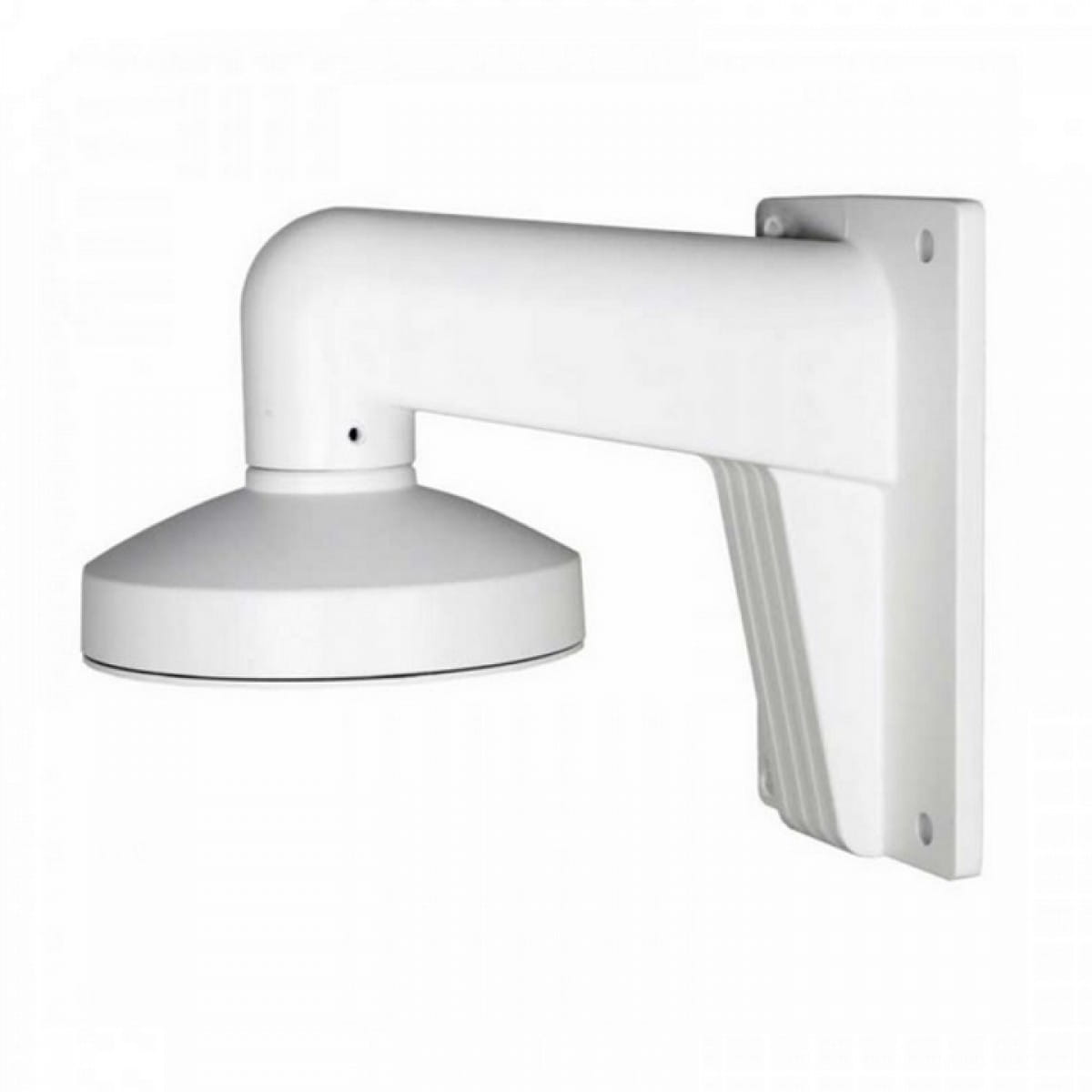

Wall Mounting Bracket for Dome Camera
Features
Aluminum alloy material with surface spray treatment
The lower bowl facilitates the installation
Water proof design
Dimension
83.5 mm (3.3")
83
.5
mm
(3.3")
46 mm
(1.8")
85.7 mm
(3.4")
183
.5
mm
(7.2")
158
mm
(6.2")
6x M4
Depth:8 mm (0.3")
232 mm (9.1")
Available Model
DS-1273ZJ-DM32
Parameter
Model
Parameters
DS-1273ZJ-DM32
Wall Mounting Bracket for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ 141.8 mm x 183.5 mm x 232 mm (5.6" x 7.2" x 9.1")
Weight 650 g (1.4 lb.)
Notes
The bracket should be installed on the flat wall.
The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket.
The maximum load capacity of the bracket is 3 KG (6.6 lb.).
