DS-1273ZJ-155

Dostępność: 0
Cena: 156,00 zł 156.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 302700320

Opis

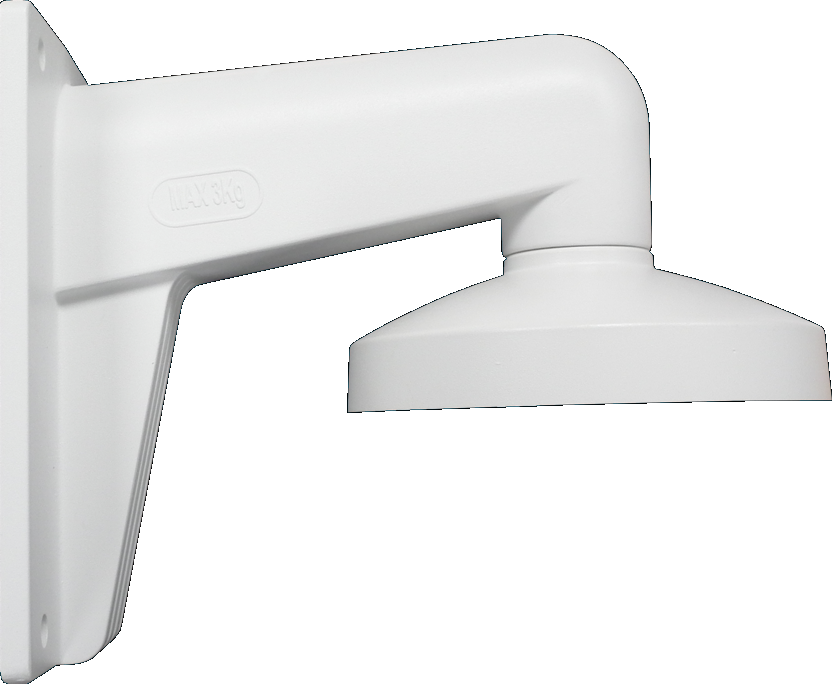

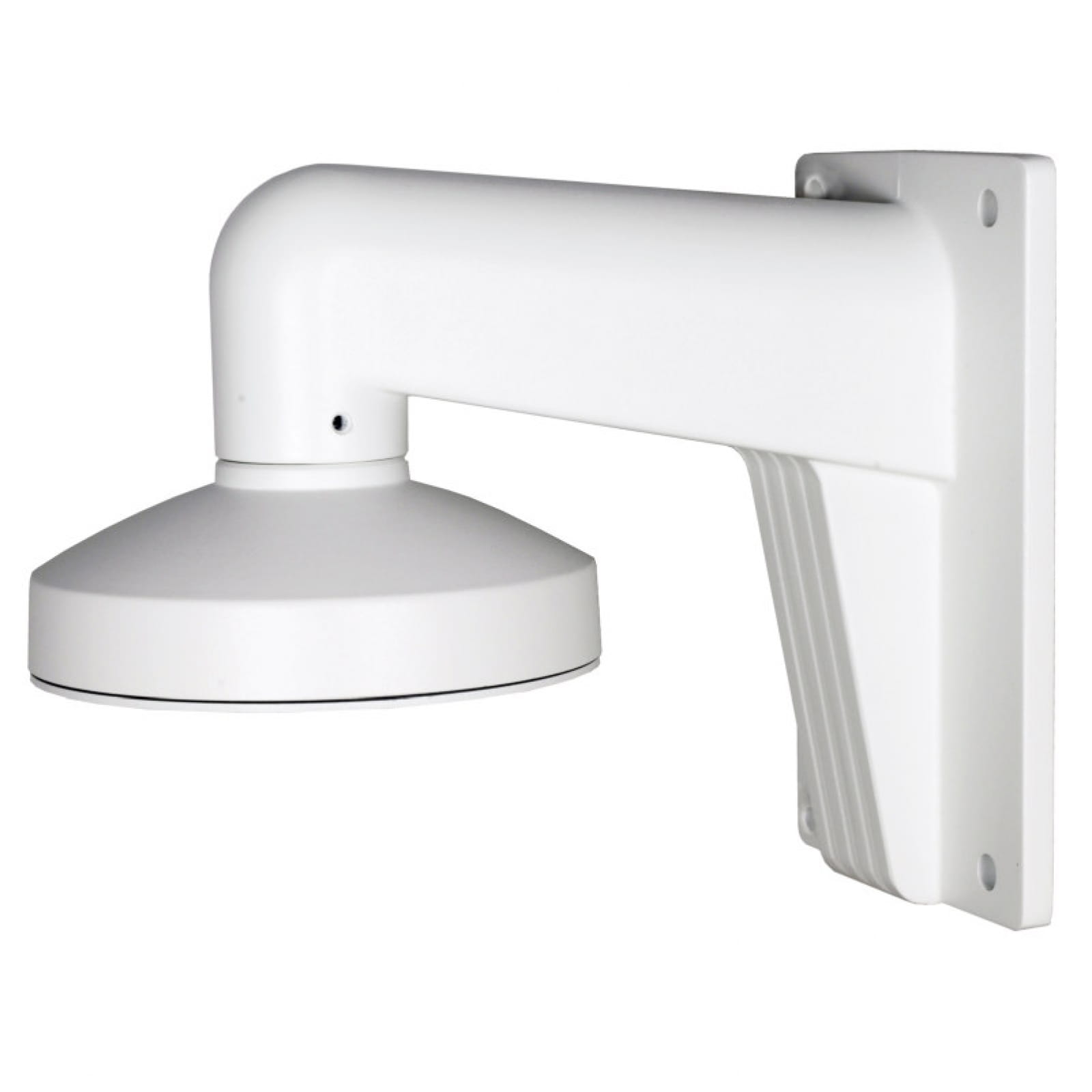

Uchwyt metalowy ścienny Hikvision do montażu kamer serii DS-2CD73XX. Wymiary: śr.155×182×120mm. Waga 730g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-1473ZJ-155

Kod produktu zamiennego: 302701859

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-1273ZJ-135


Wall Mounting Bracket for Dome Camera
Features:
 Aluminum alloy material with surface spray
treatment
 Design of cable entrance hole
 Better water proof design
 Convenient installation coordinating with adaptor
cap
Dimension:

Order Model:
DS-1273ZJ-135
Parameter:
Model

Parameters
DS-1273ZJ-135
Wall Mounting Bracket for
Dome Camera
Appearance Hikvision White
Range of
Application
Suitable for dome camera wall mounting
Material Aluminum Alloy
Dimension Φ136x183.5x230mm
Weight 704g
Notice:
 The bracket should be installed on flat wall
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
 The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CC52X1P(N)-VP, DS-2CC52X1P(N)-AVPIR2,
DS-2CD2712F-I(S), DS-2CD2732F-I(S)
Installation Step:
① Choose appropriate wall
to install the bracket and
thread the cable
② Fix adaptor to bracket and
thread the cable
③ Screw up and complete
the fixation of adaptor
④ Take off lower dome
and lining





A: Cable entry hole

B: Fastening screw







⑤ Install dome module to
adaptor cap and fix with
screw
⑥ Install lining to inner module
and adjust view of angle

⑦ Install lower dome to
module and screw up
⑧ Installation complete









Note: The actual bracket may vary from the picture above.
