DS-1273ZJ-140B
Opis

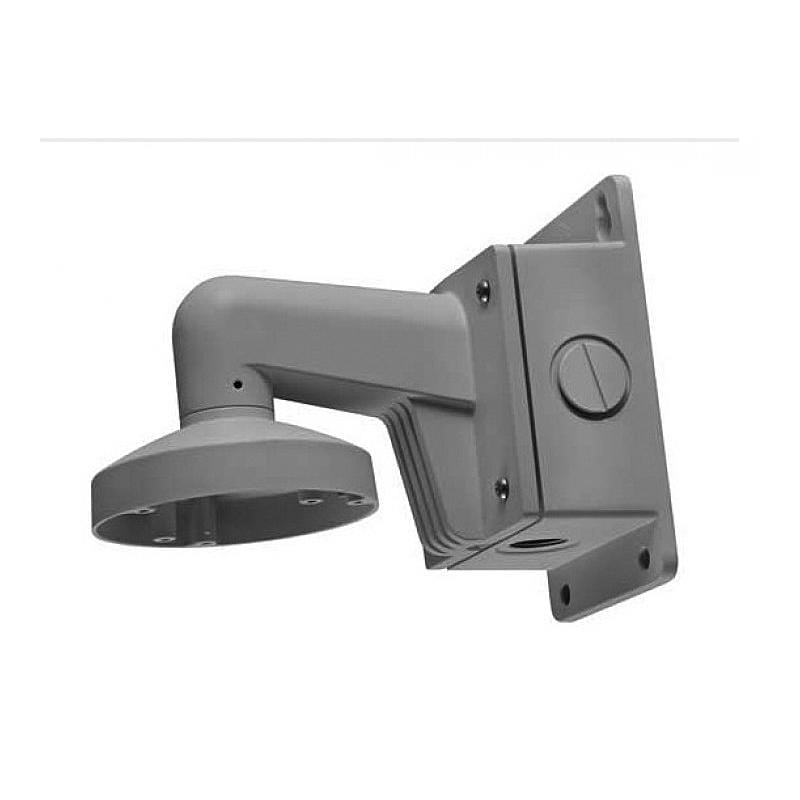

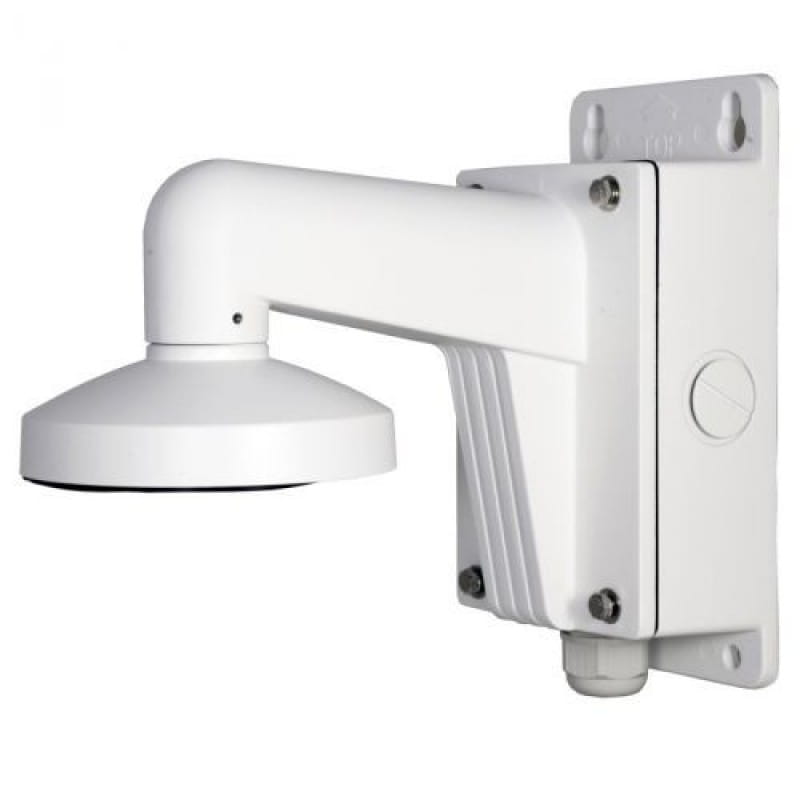

Uchwyt metalowy ścienny Hikvision wyposażony z puszkę przyłączeniową. Przeznaczony do montażu kamer serii DS-2CC51xxP, DS-2CE555F5P oraz DS-2CE56D5T-(A). Wymiary: śr.140×182×120mm. Waga 1488g....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1273ZJ-140B
DS-2CC51xxP(N) Wall Mounting Bracket for
Dome Camera (with Junction box)
Features:
Aluminum alloy material with surface spray
treatment
The outlet hole makes the feature looks better
Better water proof design
Convenient installation coordinating with lower
bowl
Dimension:
Order Model:
DS-1273ZJ-140B
Parameter:
Model
Parameters
DS-1273ZJ-140B
DS-2CC51xxP(N) Wall Mounting Bracket for
Dome Camera (with Junction box)
Appearance Hikvision White
Range of
Application
Suitable for DS-2CC51xxP(N) dome camera wall
mounting
Material Aluminum Alloy
Dimension Φ140x182x120mm
Weight 1488g
Notice:
The bracket is for DS-2CC51xxP(N)-VF dome camera
Pay attention to the color matching when select bracket
The bracket should be installed on flat wall
The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount
The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CC51xxP(N)-VP
DS-2CC51xxP(N)-VPIR
DS-2CC51xxP(N)-VPIRH
209220
85.7
123
46
83.5
83.5
292
243
φ140
Unit：mm
6-M4深8
4-φ9
