DS-1271ZJ-135
Opis

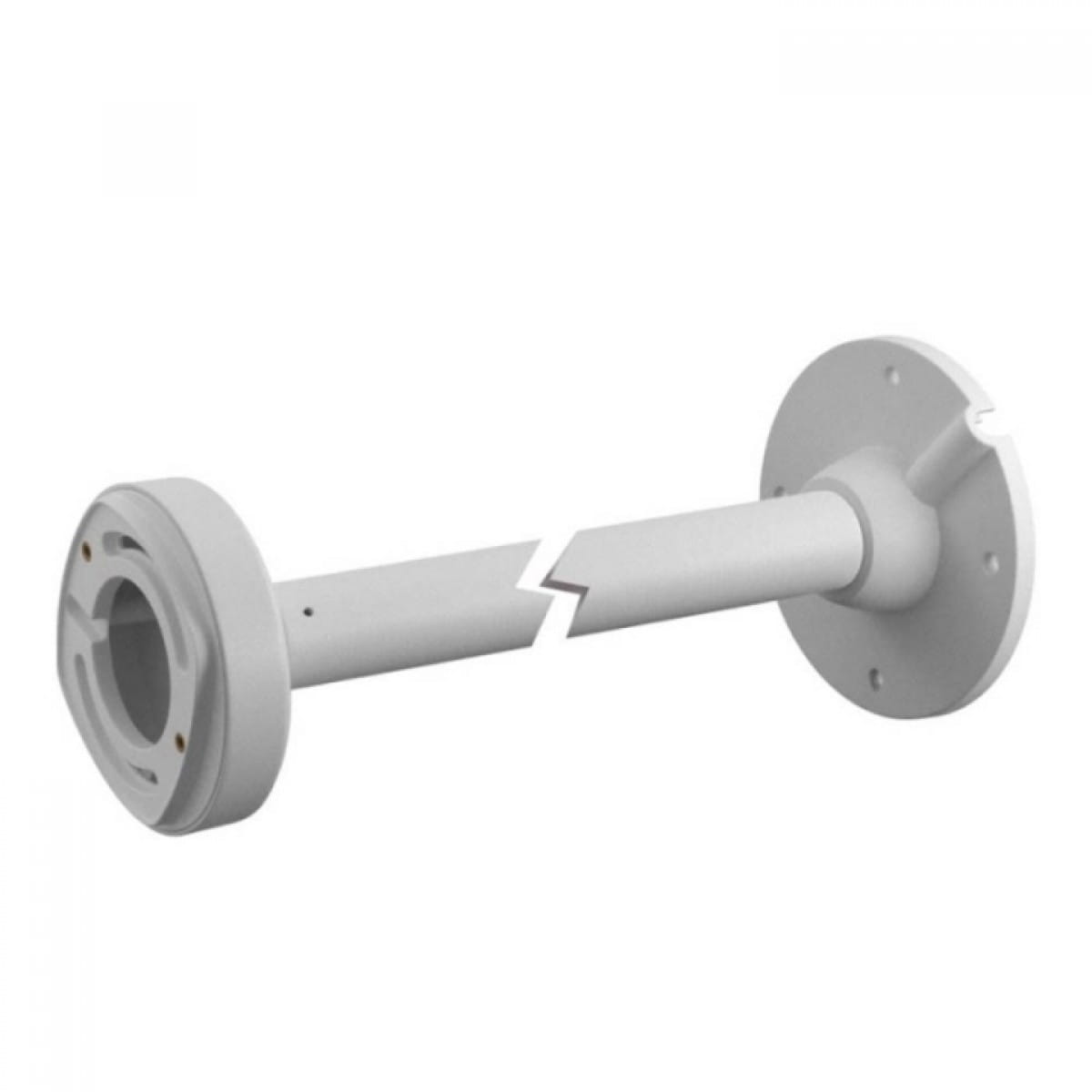

Uchwyt metalowy sufitowy Hikvision do montażu kamer serii DS-2CD27xx. Wymiary: śr.136x565mm. Waga około 1350g....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1271ZJ-135
Pendent Mounting Bracket for
Dome Camera
Features:
Aluminum alloy material with surface spray
treatment
Waterproof design
Cable hole on bracket makes the feature better
Design of cap is for convenient wiring
Dimension:
Order Model:
DS-1271ZJ-135
Parameter:
Model
Parameters
DS-1271ZJ-135
Pendent Mounting Bracket for
Dome Camera
Appearance Hik White
Material Aluminum Alloy
Dimension 136x565mm
Weight 1350g
Notice:
The bracket should be installed on flat wall
Waterproof rubber is necessary for outdoor application
The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
The maximum load capacity of the bracket is 4.5KG
Model Suitable:
DS-2CD2712F-I(S), DS-2CD2732F-I(S), DS-2CC52xxP(N)-VP series, DS-2CC52xxP(N)-AVPIR2 series
Installation Step:
① Choose the appropriate wall
to install the bracket and
thread the cable
② Connect pole and
adapter; thread cable
and screw up
③ Screw up and complete
the fixation of adapter
and pole
④ Take off lower dome and lining
A & B are tightening screw
⑤ Install the camera to the adaptor
and fix with screw
⑥ Complete the fixation and
install the lining
⑦ Adjust the view of angle
and install lower dome
⑧ Installation complete
Note: The actual dome camera may vary from the picture above.
