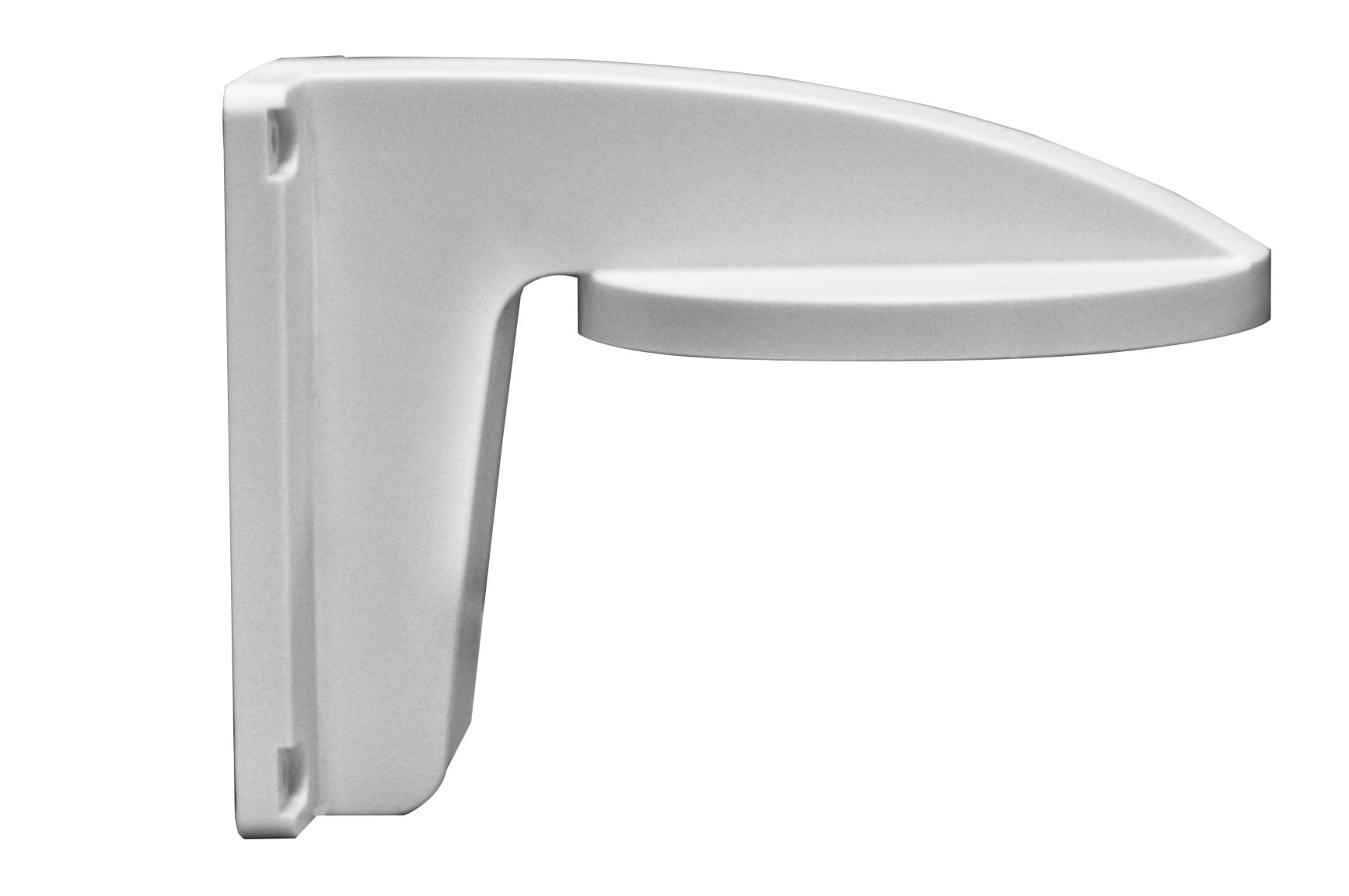

DS-1258ZJ-L

Uchwyt ścienny Hikvision do kamer kopułowych. Wykonany z tworzywa sztucznego. Przeznaczony do serii kamer kopułowych DS-2CD2712F-I(S), DS-2CD2732F-I(S), DS-2CD2722FWD-I(Z)(S), DS-2CD2742FWD-I(Z)(S). Wymiary: 136x183x213mm....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-1258ZJ
Wall mount for indoor cameras
Features:
 Good toughness and strength
 Beautiful design with wire outlet hole
 Coordination with small and nice appearance
Dimension:


Order model:
DS-1258ZJ
Parameters
Model
Parameters
DS-1258ZJ
Indoor wall mount
Color Hik white
Feature Suitable for mini dome or dome camera
Material ABS+PC
Dimension 111x120x161.5mm()
Weight 200g
Notice:
 Pay attention to the application range when select bracket
 Pay attention to the color matching when select bracket
 The bracket should be installed on flat wall
 The wall must be capable of supporting more than 3 times the total load of
the camera and the mount.
 The maximum load capacity of the mount is 2.0KG
Installation steps:
① Select suitable wall to install the bracket ⑥ Loosen the tightening screw and take down ⑥ Install the dome core to the gang box,
and wire. the housing. wire and lock the screw.

Notice: “A” stands for the lock screw
② Adjust the angle through the 3-axis adjustment ⑥ Install the housing and lock the screws. ⑦Finish the installation.
structure.

Remark: Appearance of Installation steps is for reference only
