DS-1232ZJ-T
Opis
Uchwyt Hik white Steel 96x95x92.5mm...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

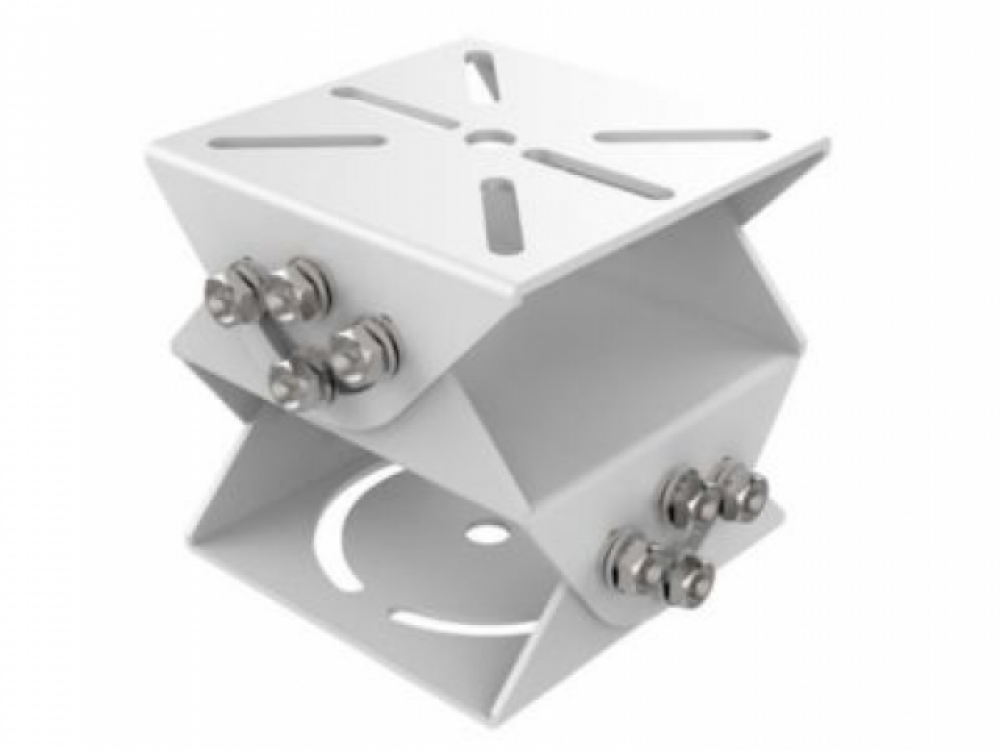

DS-1232ZJ-T
PT Joint
Feature
Steel and stainless steel with surface spray treatment
Adjustable tilt angle from -90° to 90°, and pan angle from 0° to 90°
Dimension
100 mm (3.94" )
81.8 mm (3.22" )
24.2 mm (0.95" )
6.2 mm (0.24" )
95
mm
(3
.74
" )
75
.8
mm
(2
.98
" )
30
.2
mm
(1
.19
" )
Ø 10.2 mm
(0.40" )
92
.5
mm
(3
.64
" )
100
mm
(3
.94
" )
96 mm (3.78" )
Ø 6.5 mm
(0.26" )
Ø 70 mm (2.76" )
95°
Available Model
DS-1232ZJ-T
Parameter
Model
Parameters
DS-1232ZJ-T
PT Joint
Appearance Hikvision White
Material Steel and Stainless Steel
Dimension 100 mm x 100 mm x 92.5 mm (3.94" x 3.94" x 3.64")
Weight 850 g (1.87 lb.)
Note
The joint’s maximum load capacity is 6 kg (13.2 lb.).
