DS-1227ZJ
Opis

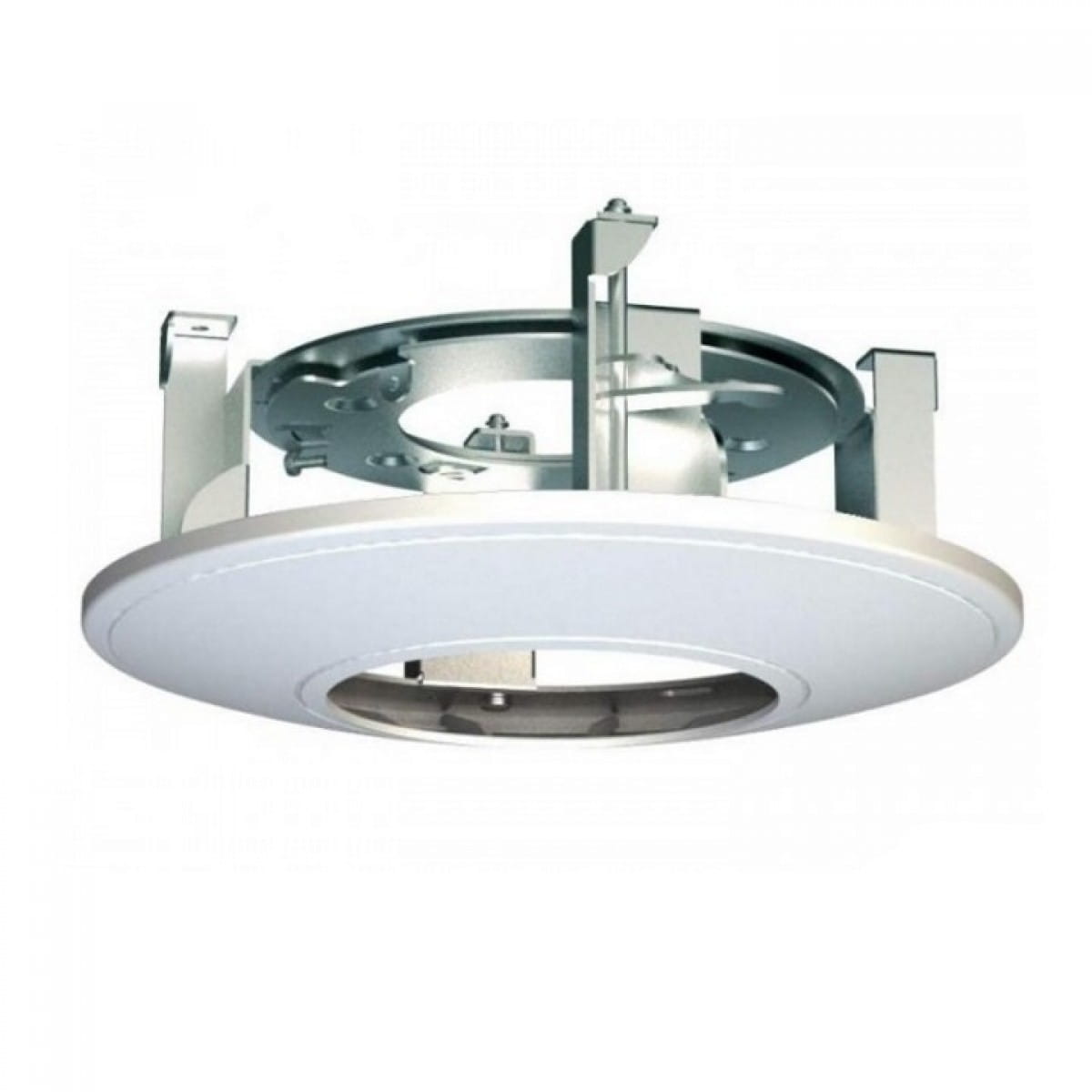

Uchwyt montażowy Hikvision przeznaczony do kamer kopułowych. Instalacja w suficie podwieszanym w formie wpusczonej. Dedykowany do serii kamer: DS-2CD41xx, DS-2CD27xx, DS-2CD753F-E, DS-2CD754F-E, DS-2CD763P(N)F-E, DS- 2CD793P(N)F-E, DS-2CD793P(N)FWD-E, DS-2CD733F-E. Podstawa metalowa, pierściń maskujący wykonany z tworzywa sztucznego. Wymiary śr.210x90mm. Maksymalne obciążenie 4.5kg. Waga około 600g....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1227ZJ
In-ceiling Mount Bracket for Dome Camera
Features:
For in-ceiling mounting
Aluminum alloy material with surface spray
treatment
Dimension:
Order Model:
DS-1227ZJ
Parameter:
Model
Parameter
DS-1227ZJ
In-ceiling Mount Bracket
Appearance Hikvision White
Range of
Application
Dome Camera
Material Aluminum Alloy
Dimension Φ210x90mm
Weight 600g
Notice:
The bracket should be installed on flat wall
The wall must be capable of supporting more than 3
times the weight of camera and bracket
Load capacity of bracket is 4.5KG
Model Suitable:
DS-2CD7X3PF(NF)-E(I)(Z),DS-2CD793PFWD-E(I)(Z),DS-2CD793NFWD-E(I)(Z),
DS-2CD7X4FWD-E(I)(Z),DS-2CD7XXF-E(I)(Z),DS-2CD783F-EP,DS-2CD4112F-(I),
DS-2CD4112FWD-(I),DS-2CD4124F-(I),DS-2CD4132FWD-(I), DS-2CD2712F-I(S),DS-2CD2732F-I(S)
Installation Step:
① Choose flat wall for
installation and screw up the
adaptor
② Complete the adaptor
installation
③ Screw up the dome camera
④ Insert the dome camera and
bracket to the wall
⑤ Screw up the butterfly
clamp in clock-wise and clamp
the bracket to the wall
Tighten butterfly clamp
⑥ Tighten 3 screws to fix cap
ring
⑦ Installation complete
Note: The actual bracket may vary from the picture above.
To the left 10mm of screw is in
accordance with adaptor
