DS-1227ZJ-DM32
Opis
Uchwyt do montażu sufitowego. Pasuje do modeli: DS-2CD4D16/26FWD-IZ(S)....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS - 1227ZJ-DM32

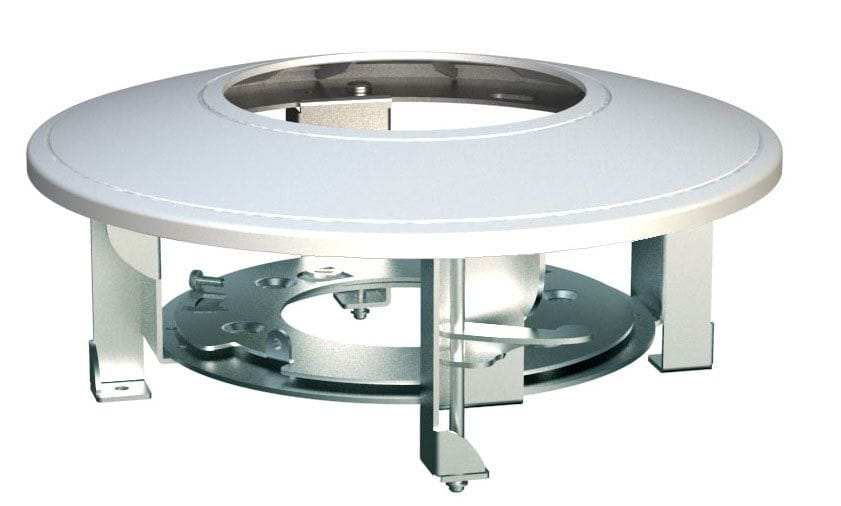

In-Ceiling Mounting Bracket for Dome Camera
Features
Steel and plastic material with surface spray treatment
Magnet ic design facilitates dome camera installation
In- ceiling mounting saves installation space
Dimension
Φ 222 mm
(8.74")
93.02 mm
(3.66")
89.78 mm
(3.53")
98.07 mm (3.86")
Φ 224.95 mm
(8.86")
* Φ 222 mm (Φ 8.86") is the diameter for the cable hole on the ceiling.
Available Model
DS-12 27 ZJ -DM32
Parameters
Model
Parameters
DS-1227ZJ-DM32
In-Ceiling Mounting Bracket for Dome Camera
Appearance Hikvision White
Material Steel and Plastic
Dimension Φ 224.95 mm x 98.07 mm (Φ 8.86" x 3.86")
Weight 660 g (1.46 lb.)
otes
The bracket should be installed on the flat ceiling .
The ceiling must be capable of supporting over 3 times as much as the total weight of the camera and the
brack et .
The bracket’s maximum load capacity is 3 Kg (6.6 lb.).
