DS-1214ZJ-T
Opis
Uchwyt Hik white Steel(mounting board) & Stainless Steel(clamp)...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-1214ZJ-T

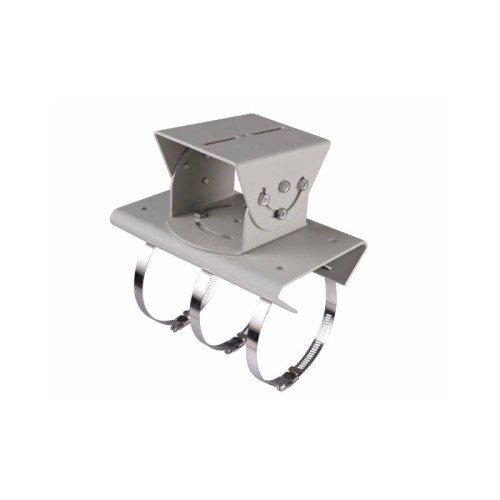

Horizontal Pole Mount
Feature
Steel and stainless steel with surface spray treatment
Adjustable tilt angle from -90° to 90°, and pan angle from 0° to 90°
Dimension
194
mm
(7.64
" )
117 mm (4.61" )138
.5
mm
(5.45
" )
30
.2
mm
(1.19
" )
22
.8
mm
(0.90
" )
70 mm to 127 mm
(2.7" to 5" )
Ø 10.2 mm
(0.40" )
28.8 mm
(1.13" )
24.2 mm
(0.95" )
Available Model
DS-1214ZJ-T
Parameter
Model
Parameters
DS-1214ZJ-T
PT Joint
Appearance Hikvision White
Material Steel and Stainless Steel
Dimension 194 mm x 117 mm x 138.5 mm (7.64" x 4.61" x 5.45")
Weight 1900 g (4.19 lb.)
Note
The waterproof rubber is necessary for the outdoor application.
The pole must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
The joint’s maximum load capacity is 6 kg (13.2 lb.).
0100001080201
