DS-1200KI
Opis
Kontroler systemowy RS-485 oraz IP Hikvision. Manipulator 3D, obsługa wybranych funkcji rejestratora. Niezależne sterowanie DVR i kamer PTZ (za pośrednictwem IP lub RS-485). Możliwość łączenia kaskadowego. Wbudowany wyświetlacz LCD: 128x64 pix. Maksymalna długość magistrali sterujacej: 1200m, zasilanie 12VDC....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

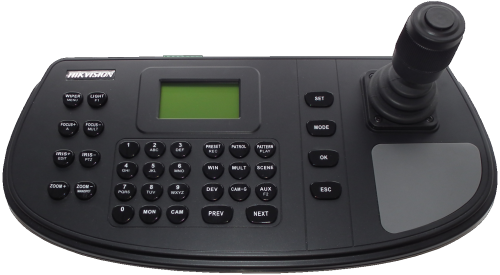

DS-1200KI Series Network Keyboard
128 x 64 screen
4-axis joystick
Connectable to the Multi-functional Video Center (MVC), Matrix Access Gateway (VAG), Video Wall
Controller, Decoder, etc.; and shortcut operation of camera/camera groups switch on video wall
Connectable to dome and realize PTZ control and picture capture by joystick operation
Connectable to DVR via network or serial port, and operation of front panel buttons
16 user accounts management: 1 admin and 15 operators
System upgrade and import / export of configuration files by USB-flash disk
Captured pictures(FAT32) can be stored in U-flash disk
Network access and configuration by Web browser support; and up to 1000 devices can be
managed in the keyboard operation mode
Features and Functions
Model DS-1200KI
System
LCD screen 128 x 64 pixel screen
Joystick 4-axis joystick
Control mode Network, RS-232, RS-422, RS-485
External
Interfaces
Network interface
1; 10 M/100 Mbps self-adaptive Ethernet
interface
Serial interface 1 RS-232, 1 RS-422, 1 RS-485
USB interface 1 x USB 2.0
General
Power supply 12 VDC
Consumption ≤ 4.5 W
Working temperature -10 to +55° C (14 to 131° F)
Working humidity 10% to 90%
Dimensions (W x D x H) 435 x 193 x 110 mm (17.1 x 7.6 x 4.3 inch)
Weight ≤ 1 kg (2.2 lb)
