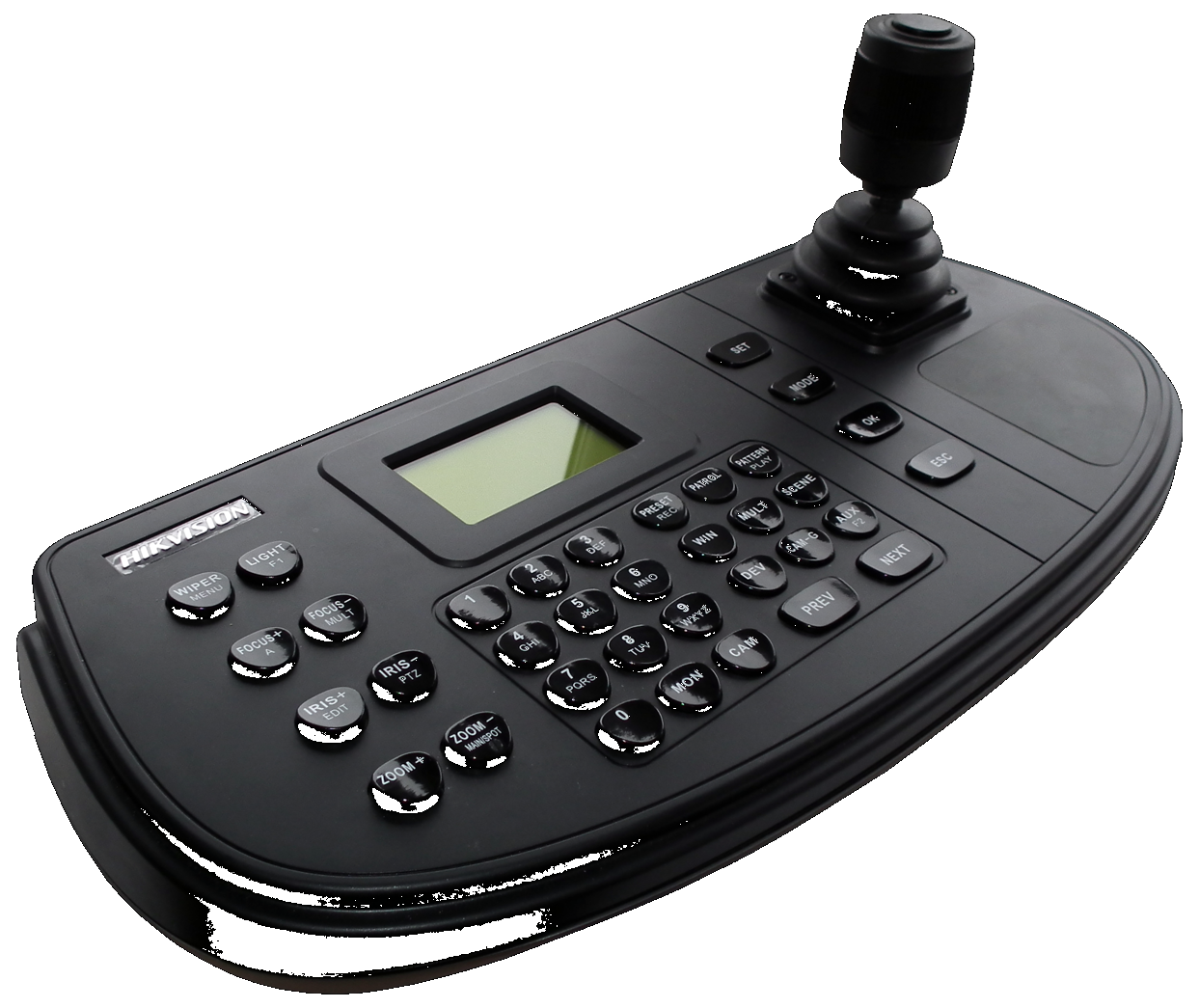

DS-1006KI

Kontroler systemowy RS-485 Hikvision. Manipulator 3D, obsługa wybranych funkcji rejestratora. Niezależne sterowanie DVR i kamer PTZ. Możliwość łączenia kaskadowego. Wbudowany wyświetlacz LCD: 128x64 pix. Maksymalna długość magistrali sterujacej: 1200m, zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-1006 KI Series Keyboard
 128 x 64 screen
 4-axis joystick
 Connectable to the Multi-functional Video Center (MVC) and Matrix Access Gateway (VAG) by
RS-422 serial port, and shortcut operation of camera/camera groups switch on video wall
 Connectable to DVR by RS-485 serial port, and operation of front panel buttons
 Connectable to dome by RS-485 serial port and realize PTZ control and picture capture by joystick
operation
 16 user accounts management: 1 admin and 15 operators
 System upgrade and import / export of configuration files by USB-flash disk
 Captured pictures(FAT32) can be stored in U-flash disk
Features and Functions






Model DS -1006KI
System
LCD screen 128 x 64 pixel screen
Joystick 4-axis joystick
Control mode RS-232, RS-422, RS-485
External
Interfaces
Serial interface 1 RS -232, 1 RS-422, 1 RS-485
USB interface 1 x USB 2.0
General
Power supply 12 VDC
Consumption ≤ 4.5 W
Working temperature -10 to +55° C (14 to 131° F)
Working humidity 10% to 90%
Dimensions (W x D x H) 435 x 193 x 110 mm (17.1 x 7.6 x 4.3 inch)
Weight ≤ 1 kg (2.2 lb)
DS -1200KI
01 0000160 100
8
Available Models
Specification s
Available Models
DS -1006KI
