DS-1004KI
Opis

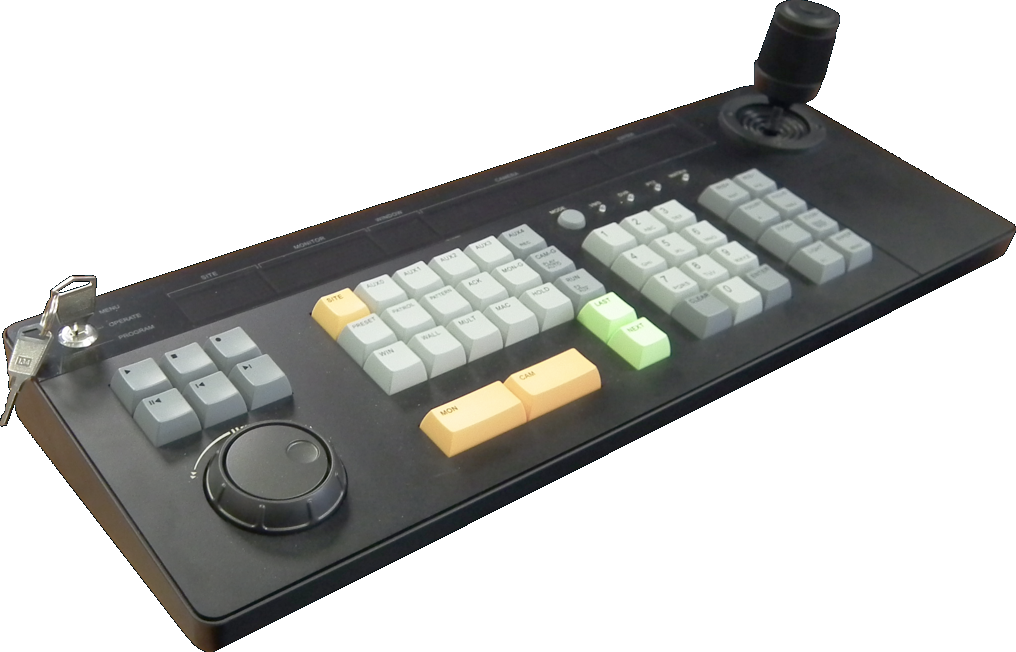

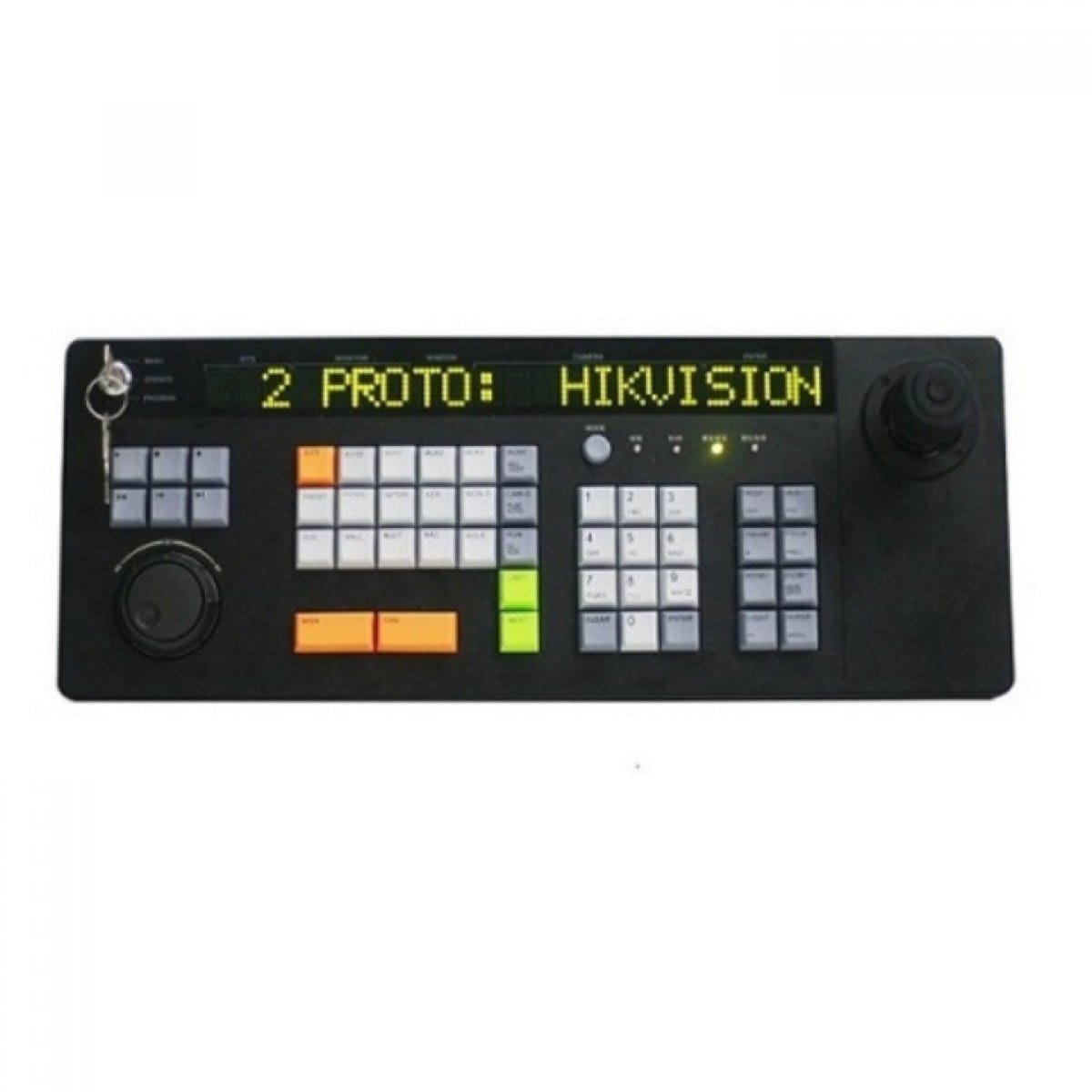

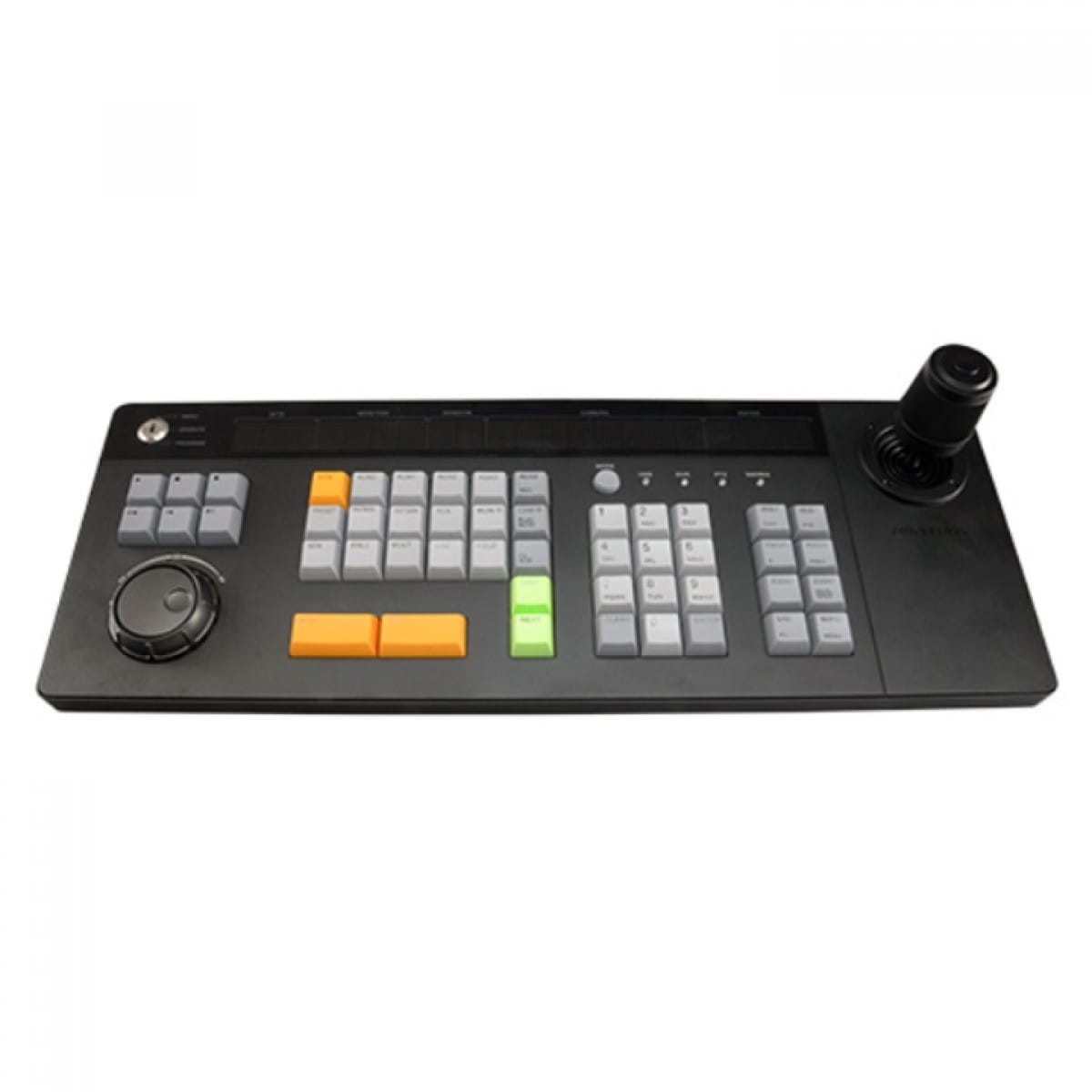

Kontroler systemowy RS-485 Hikvision. Manipulator 3D, obsługa wybranych funkcji rejestratora. Niezależne sterowanie DVR i kamer PTZ. Możliwość łączenia kaskadowego. Wbudowany wyświetlacz LCD: 122mm*64mm. Maksymalna długość magistrali sterujacej: 1200m, zasilanie 12VDC....
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
www.hikvision.com
• Switch the keyboard mode by key.
• DVR menu control function.
• PTZ control.
• Setting and calling the preset, patrol, and pattern.
• Switch the Video Wall display and set the Video Wall layout.
• Video switch control for the analog matrix.
Key Features
DS-1004KI
JoystickFour Dimensions
Serial PortRS485 and RS232
Working Temperature-10℃- +55℃
Working Humidity10%-90%
Power Supply12VDC
Power Consumption≤10W
Dimension434mm(width)*163mm(depth)*43mm (height)
Weight≤1.25Kg
DS-1004KI
RS-485 Keyboard
Specifications
