IC S50
Opis
Karta zbliżeniowa Mifare 1, Częstotliwość: 13.56vMHz...
Gwarancja: 24 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

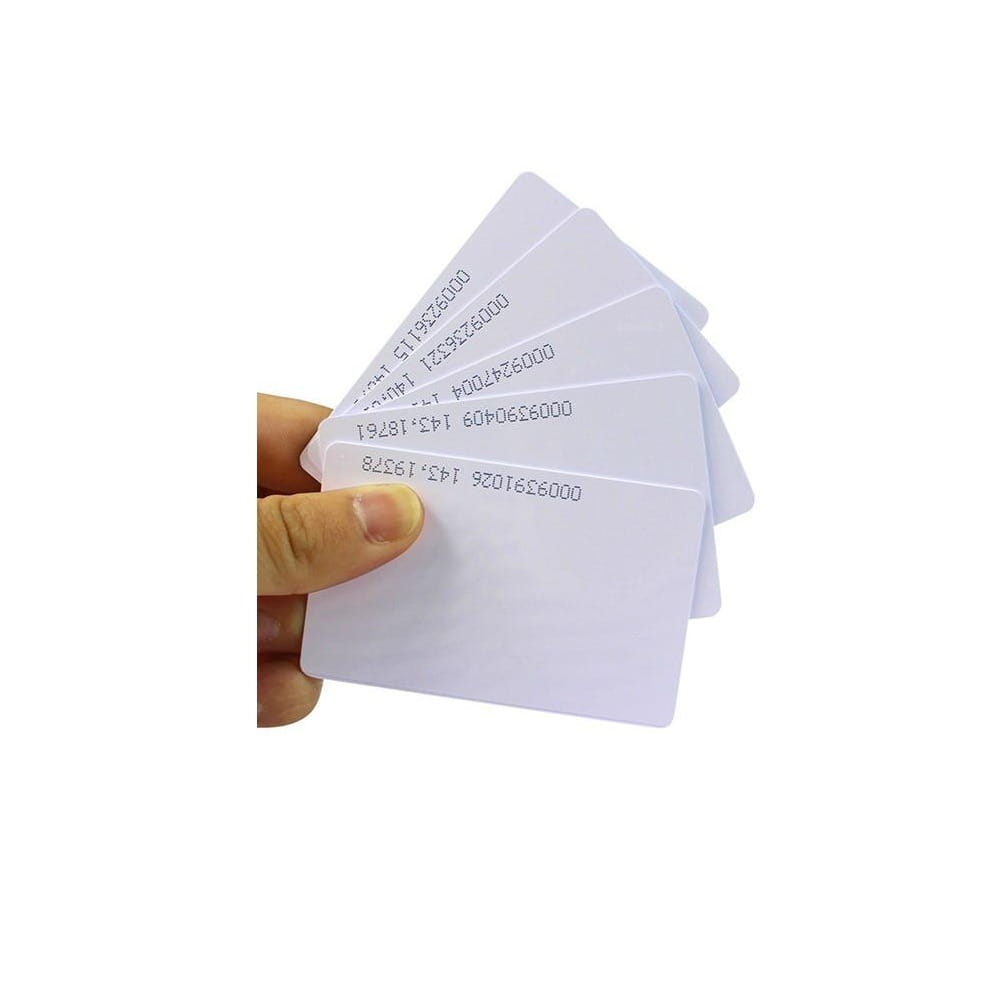

Spec of IC S50 Mifare 1 Non-contacting IC Card www.hikvision.com
MIFARE 1 S50 is a serial of non-contacting smart card that meets the standard of ISO/IEC 14443A.
The communication layer (MIFARE RF interface) meets part2 and 3 of the ISO/IEC 14443A standard.
The security layer supports CRYPTO1 data stream encryption of domain authentication.
MIFARE RF Interface (ISO/IEC 14443 A)
* Non-Contacting data transmission and supplied power(no battery needed)
* Working distance: no more than 100mm (depends on the antenna dimension)
* Working frequency: 13.56 MHz
* High data transmission speed: 106 k bit/s
* Data integrity protection: 16 bit CRC, odd-even check, encoding and counting by bit.
* Anti-conflict
* Data transmission and processing time: < 100 ms (including backup and management time)
EEPROM
* 1 k byte (16 zones, 4 sections per zone, 16 bytes per section)
* User definable reading/writing condition for memory block
* Long time data storage: 10 years
* 100,000 writing times
Security
* Triple accreditation(ISO/IEC DIS9798-2)
* Attack protective radio-frequency channel data encryption
* Two security keys (support multiple security levels) for each section
* Only one serial No. for one card
* Transmission security key to protect the access right of EEPROM during the transmission
MAIN FEATURES
IC S50
Mifare 1 Non-contacting IC Card
